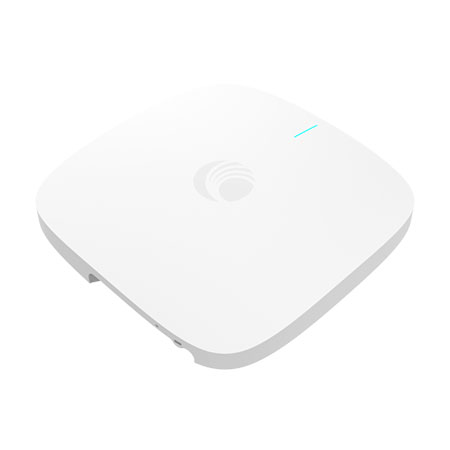

Cambium Networks XE5-8X00A00-RW XE5-8 Indoor Tri-band WiFi 6e AP with multi-radio SDR 8x8. 5GbE. ROW
Cambium Networks
Cambium Networks provides professional grade fixed wireless broadband and microwave solutions for customers around the world. Our solutions are deployed in thousands of networks in over 153 countries, with our innovative technologies providing reliable, secure, cost-effective connectivity that's easy to deploy and proven to deliver outstanding metrics.
Share this product:
Cambium Networks XE5-8X00A00-RW XE5-8 Indoor Tri-band WiFi 6e AP with multi-radio SDR 8x8. 5GbE. ROW
Cambium Networks XE5-8 Wi-Fi 6E Access Point
Cambium Networks 802.11ax Tri-Band 8x8/4x4 High-density Access Point
The Cambium Networks XE5-8 is a five-radio Wi-Fi 6/6E 8×8/4×4 access point (AP) designed to deliver high-density, future-proof performance for building next generation wireless networks. With five user servicing radios, the XE5-8 delivers the highest density Wi-Fi 6 solution in the industry. Wi-Fi 6E support extends the capacity of Wi-Fi into the 6 GHz band, more than tripling the wireless spectrum available
Wi-Fi Built for the Future
With five high-speed software-defined radios, the Cambium Networks XE5-8 Wi-Fi 6E access point enables seamless transition to Wi-Fi 6E with the ability to easily change from dual-band to tri-band (2.4 GHz, 5 GHz, 6 GHz) support when sufficient 6 GHz clients are available. The XE5-8 is fully backward compatible with existing Wi-Fi technology, enabling simultaneous support of new high-speed clients, legacy clients, low-bitrate IoT devices, and more in a single wireless infrastructure.
Cloud and On-Premises Management
XE5-8 operates with either Cambium Networks’ XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.
Limited Lifetime Warranty
The XE5-8 comes with a Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product.
ROW (Individual country limits may apply) Ch 1–14, 36–48, 52–64, 100–144, 149–173 6 GHz Channels FCC/IC/ROW Ch 1–233 EU Ch 1–93
Radios Two: 4x4 5/6 GHz 802.11a/n/ac/ax, SW configurable to 5 or 6GHz operation Two: 4x4 5 GHz 802.11a/n/ac/ax, SW configurable to one 8x8 radio One: 4x4 2.4 GHz 802.11 b/g/n/ax BLE 4.1
Wi-Fi 802.11 a/b/g/n/ac Wave 2/ax
SSID Security WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Ports 2 x IEEE 10/100/1000/2500/5000 Mbps Ethernet 1 x USB 3.0
Antenna 6 GHz: 5.82 dBi, Omni 5 GHz: 5.61 dBi, Omni 2.4 GHz: 4.58 dBi, Omni
Max EIRP 6 GHz: 30 dBm 5 GHz: 33 dBm 2.4 GHz: 30 dBm
Power Max 59W 802.3bt powered device
Dimensions 300 mm x 300 x 58 mm (without bracket)
Weight 1.8 kg
Security Kensington lock slot
LEDs Multi-color status LEDs
Ambient Operating Temperature 0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature -40ºC to 70ºC (-40ºF to 158ºF) Humidity 95% RH non-condensing
MTBF 668,759 hours 25ºC 314,145 hours at 50ºC
Mount Options Wall or ceiling, T-bar with included locking bracket, ceiling tile plate
Certifications (Compliance) FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical EMC, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway EMC, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS
