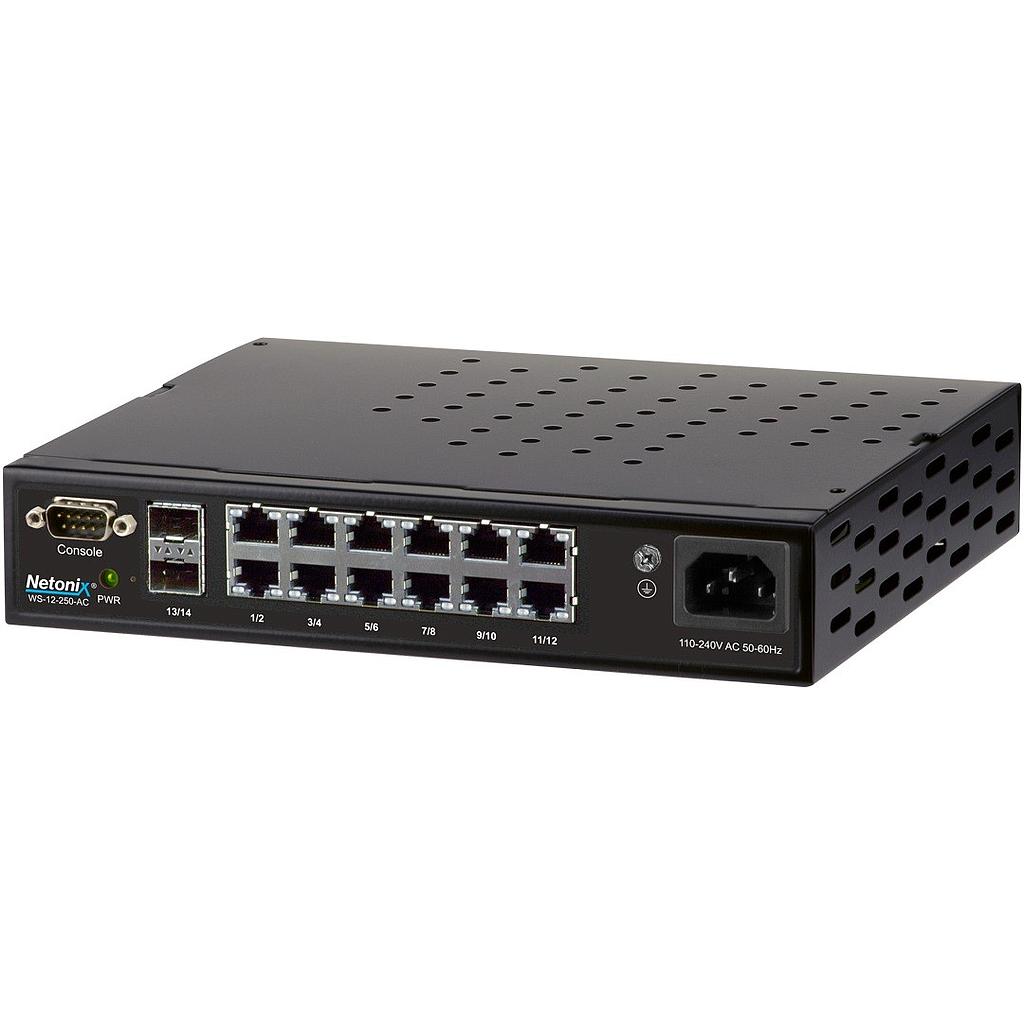

Netonix WS-12-250-AC 12-Port Managed POE Switch, AC 250Watt

Product Code: WS-12-250-AC

Barcode: 858827005063

540.10 incl. GST 540.1 AUD 540.10

517.06


    This combination does not exist.

    Add to Cart


    100% Original
    Fast Delivery


    Share this product:

    Netonix WS-12-250-AC 12-Port Managed POE Switch, AC 250Watt


    The Netonix WISP Switch model WS-12-250-AC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch. Managed Passive POE Switch with 110 / 220 VAC 250 Watt Power Supply, (12) Gbps POE Ports, and (2) SFP Uplink Ports. Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes. The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH). The only switch line on the market that has current sensors on all passive POE ports.

    Product Features:

    • Manufactured and Assembled in North America

    • Standard Desktop / Wall mount

    • Optional 19” rack mount kit / DIN Rail

    • Dimensions 223 mm x 181 mm x 44 mm

    • Operating temperature -25 to 55°C (-13 to 131° F)

    • Serial console port

    • Passive PoE current sensors on each port

    Product Specifications:

    • Manufactured and Assembled: North America

    • Standard 19” rack mount / Desktop / Wall mount: YES

    • Dimensions: 223mm x 181mm x 44mm

    • Weight: 2 kg

    • Power Input: 210-230 & 110-120 VAC

    • Chassis Earth Ground Lug: YES

    • Max. Power Consumption: 250 Watts

    • Intelligent Forced Air Cooling With Fan RPM Monitoring: YES

    • Switch Core and PHYs: Vitesse

    • Processor: MIPS 24K 416 MHz

    • System Memory: 128 MB

    • Flash Storage: 16 MB

    • Total Non-Blocking Line Rate: 14 Gbps

    • Certifications: CE, FCC, IC

    • Operating Temperature: -25 to 55°C (-13 to 131° F)

    • Operating Humidity: 5 to 95% Non-Condensing

    • Console Port: RS-232

    • Ethernet Ports: (12) 10/100/1000 Ethernet Ports; (2) SFP Ports

    • Passive PoE Configured Per Port via UI:

          24V 1A pins 4,5(+) 7,8(-)

          48V 1A pins 4,5(+) 7,8(-)

          24VH 2A pins 1,2,4,5(+) 3,6,7,8(-)

          48VH 2A pins 1,2,4,5(+) 3,6,7,8(-)

    • PoE Out Voltage Range: 48-50 VDC / 22-24 VDC

    • Passive PoE Current Sensors Per Port: YES

    • ESD Rating: 24 kV Air / 24 kV Contact

    Product Includes:

    (1) WS-12-250-AC

    (1) Power Cord

    (1) User Guide
