Ubiquiti WM-W UniFi WiFiMan Wizard Portable Spectrum Analyzer
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

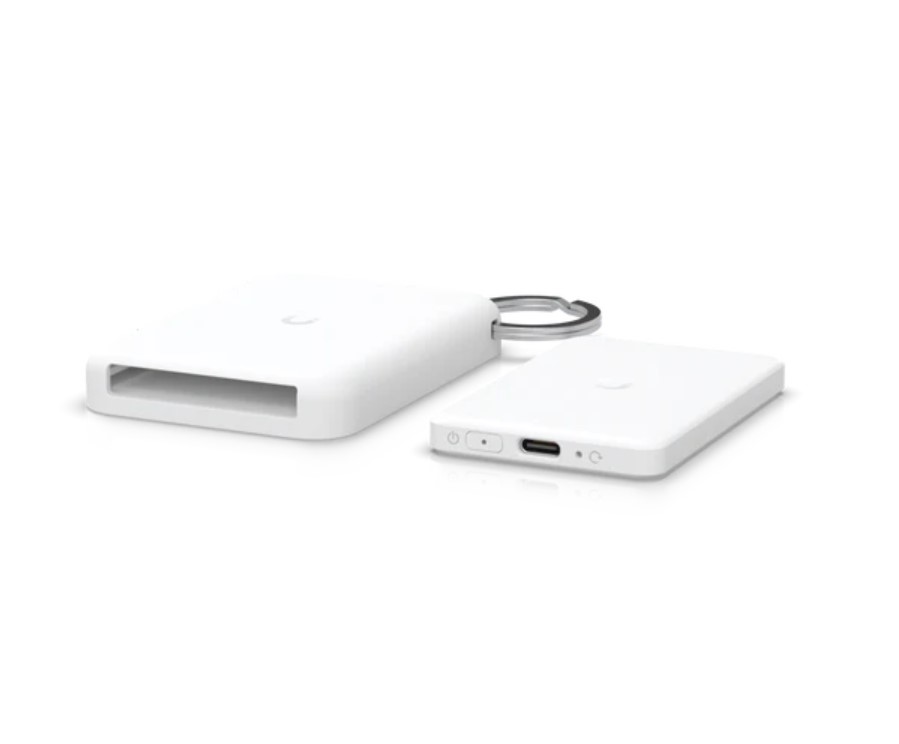

Ubiquiti WM-W UniFi WiFiMan Wizard Portable Spectrum Analyzer
A portable spectrum analyzer designed for the Ubiquiti Unifi WiFiMan iOS and Android mobile app.
Unifi WiFiMan Features:
2.4 GHz and 5 GHz unlicensed band scanning
240 minutes continuous scanning battery life
BLE smartphone pairing with USB-C charging port
iPhone Magsafe attachable support*
Works with the Ubiquiti Unifi WiFiman mobile app: Version 0.18.0 for iOS and 1.15.0 for Android and later
*A mag-safe case is required to attach this device to an iPhone
Mechanical
Dimensions 78.5 x 50.5 x 7.9 mm
Weight 32 g (1.1 oz)
Enclosure material Plastic
Weatherproong IP55
Hardware
Managementinterface Bluetooth
Power method Li-ion battery
Power supply Rechargeable Li-ion battery, 3.7V DC, 300mAh
Max. power consumption 32.4mW
Charger voltage USB-C, 5V DC/1A
LED White/blue/red
Buttons (1) Power
(1) Factory-reset
Operating temperature 0 to 40° C
Operating humidity 10 to 90% noncondensing
Certications CE, FCC, IC
SSID Scan
Frequency range 2.4 to 2.5 GHz
5.15 to 5.85 GHz
Amplitude range -96 dBm to 0 dBm
Amplitude resolution 1 dBm
