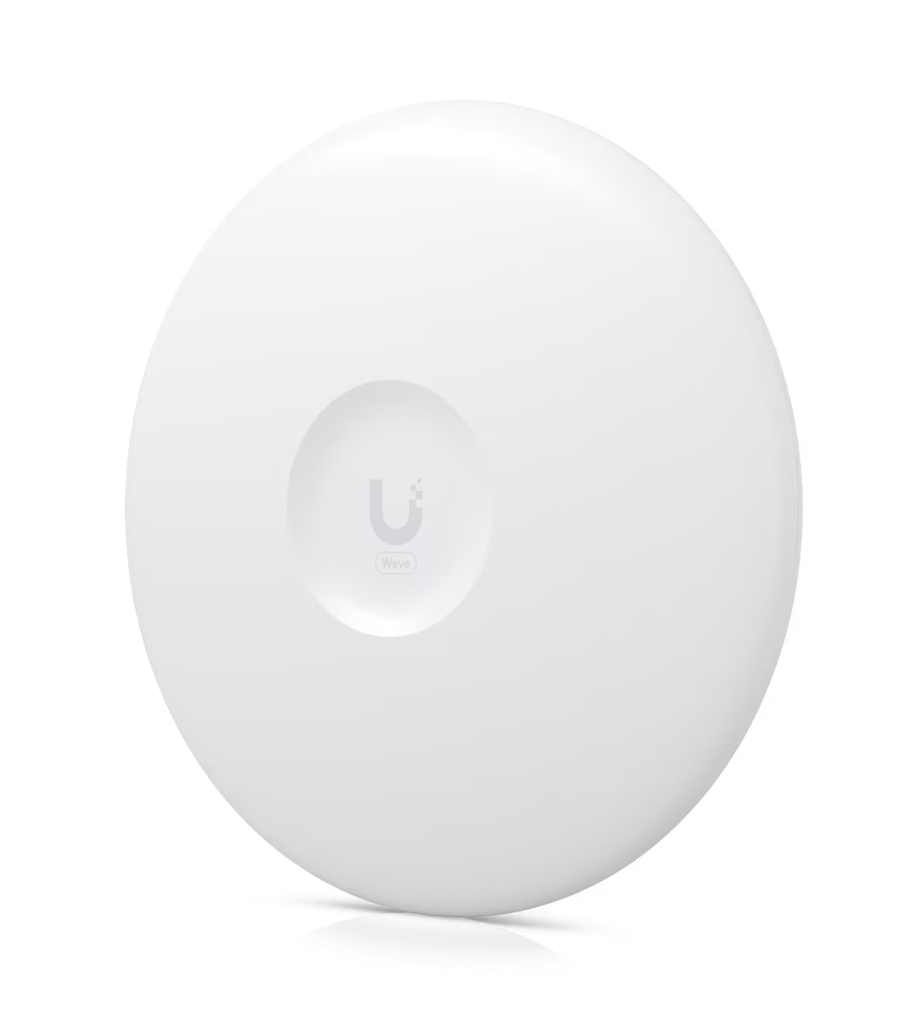

    Ubiquiti Wave-Pro UISP Wave Professional 60 GHz + 5 GHz PTP/PTMP Powered by Wave Technology

    High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.

    Compatibility and supported distances:
    — PtP: Up to 15 km
    — PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)

    60 GHz primary radio with 5.4 Gbps (2.7 Gbps duplex) maximum throughput

    5 GHz 800+ Mbps weather-resistant backup radio

    (2) 2.5 GbE and (1) 10G SFP+ ports

    Ergonomic transportation handle

    Precision alignment mount

    Integrated GPS & Bluetooth

    UIbiquiti Wave-Pro UISP
    Technical Specifications
    DimensionsØ424.4 x 166.2 mm
    WeightWithout mount: 2.8 kg
    With mount: 4 kg
    Enclosure materialsAluminum alloy, UV stabilized plastic
    Mount materialStainless steel
    Pole mount diameter25 to 76.2 mm (1 to 3") on pipe outer diameter
    Wind loading369 N at 200 km/h
    ProcessorQuad-core ARM® Cortex®-A53 at 1.4 GHz
    MemoryDDR3L 512 MB
    Networking interface(2) 2.5 GbE RJ45 ports
    (1) 10G SFP+ port
    Max. power consumption26W
    Power methodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
    Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
    Power supply48V DC, 0.65A, 2.5 GbE PoE adapter (included)
    Supported voltage range44–54V DC
    22–27V DC
    ButtonFactory reset
    LEDsPower, (2) Ethernet, SFP+ , GPS, link
    Operating temperature-40 to 60° C (-40 to 140° F)
    Operating humidity5 to 95% noncondensing
    CertificationsFCC, IC, CE
    Operating modePtP, PtMP station
    Ubiquiti specific featuresIntegrated 60 GHz radio, discovery protocol, Wave technology
    ServicesUISP, ping watchdog, NTP client, SNMP
    ToolsAntenna alignment, discovery utility, ping, trace route, speed test
    NetworkBridge/Router* mode
    *Router is available in PtMP station mode only.
    Application requirementsUISP: Version 2.3.0 and later
    Total throughput5.4 Gbps (2.7 Gbps duplex)
    Max. rangePtP: Up to 15 km
    PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
    EncryptionWPA2-PSK (AES)
    Operating frequency*57 to 71 GHz
    *Depends on regulatory region.
    Channel bandwidth2160, 1080 MHz
    Operating channels*58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
    *Depends on regulatory region.
    Modulation16QAM, QPSK
    Antenna gain46 dBi
    PolarizationVertically linear
    BeamwidthAzimuth: 3 dB 1.3°
    Elevation: 3 dB 1.3°
    Back-Up RF
    WiFi Standard802.11ax (WiFi 6)
    Operating frequency*


    U-NII-1 5150 - 5250 MHz
    U-NII-2A 5250 - 5350 MHz
    U-NII-2C 5470 - 5725 MHz
    U-NII-3 5725 - 5850 MHz

    5150 - 5875 MHz
    *Depends on regulatory region.
    Channel bandwidth20, 40, 80 MHz
    Max. conducted TX power27 dBm
    ModulationBPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
    Antenna gain22 dBi
    BeamwidthAzimuth: 3 dB 8°
    Elevation: 3 dB 8°
    Cross-pol isolation20 dB
    PowerFlashing white: bootup in progress
    White: not connected to UISP application
    Blue: connected to UISP application
    Flashing blue: locate in progress
    Blue/white: firmware upgrade in progress
    Ethernet(2) Flashing blue: Ethernet traffic detected
    SFP+(1) Flashing blue: SFP+ traffic detected
    LinksWhite: 5 GHz link
    Blue: 60 GHz link
    GPSBlue: receiving at least (4) GPS satellite signal
