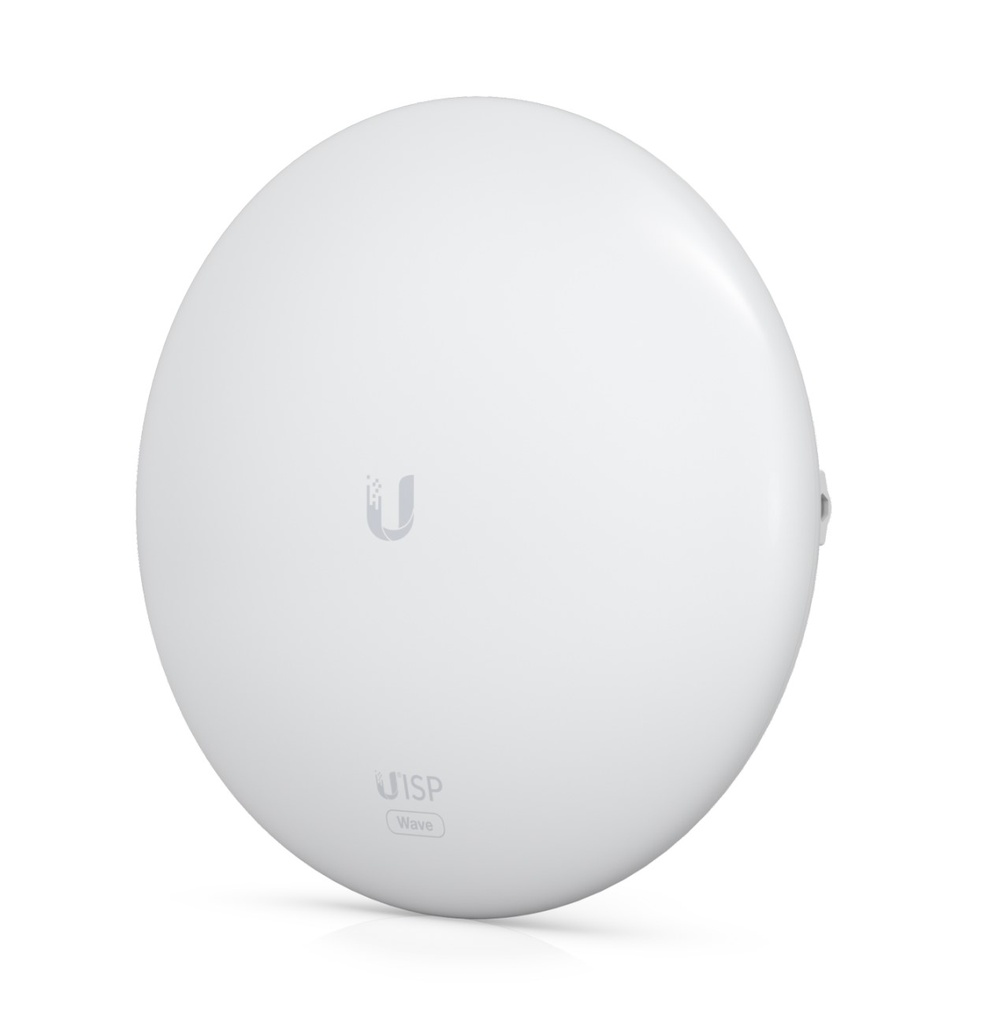

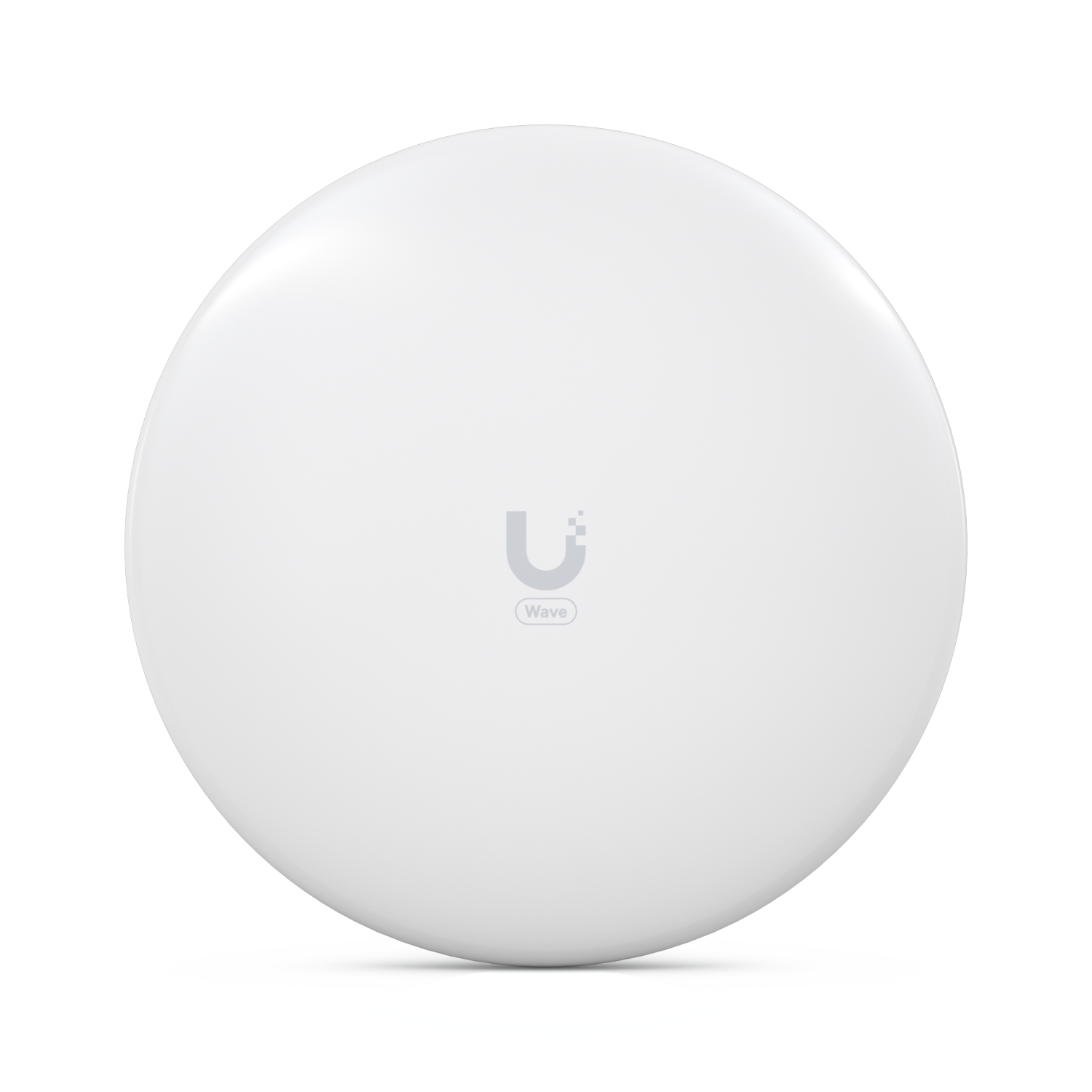

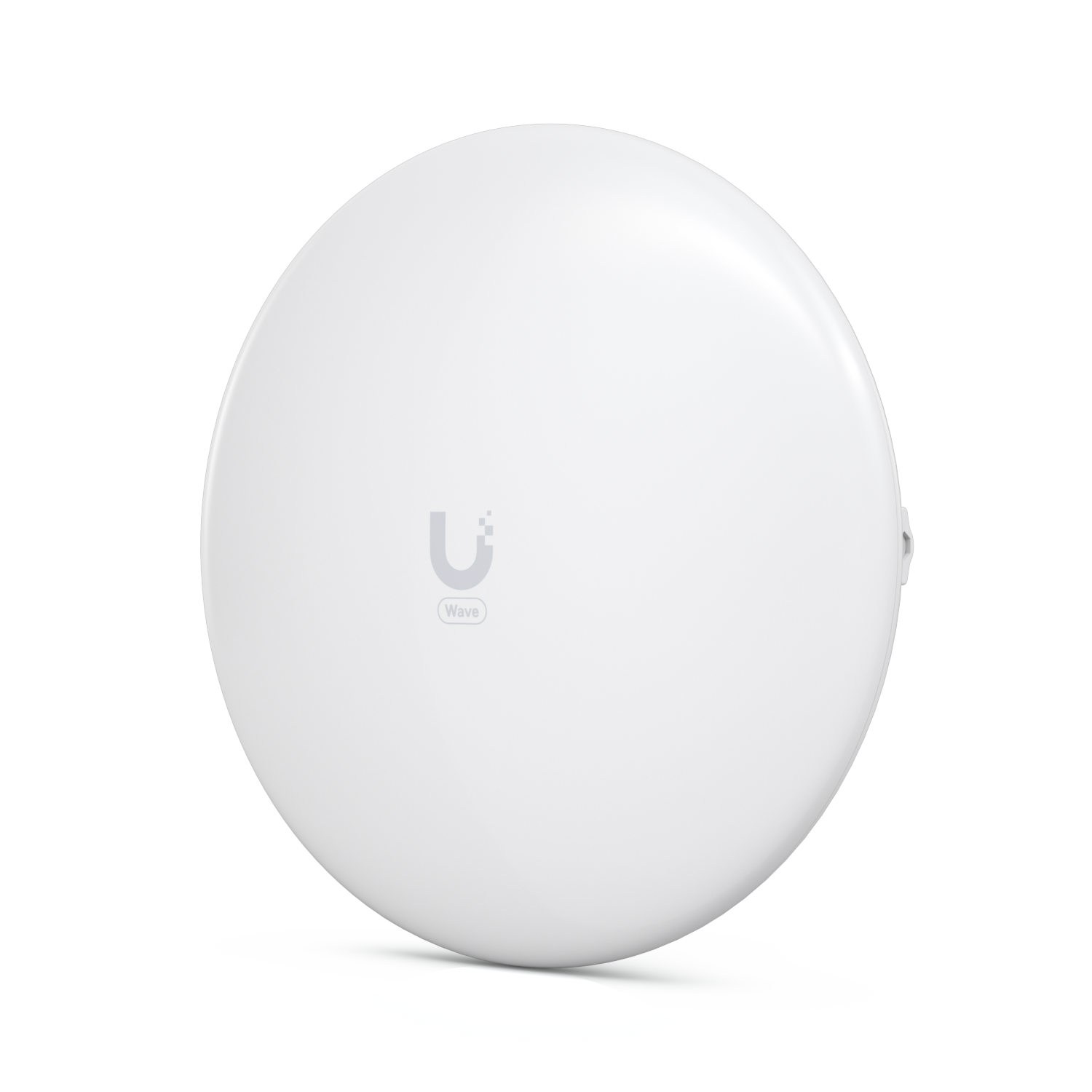

Ubiquiti Wave-Nano UISP Wave Nano 60 GHz + 5 GHz 60 GHz PtMP Station Powered by Wave Technology
Ubiquiti Wave-Nano 60 GHz PtMP station powered by Wave Technology.
Wave-Nano connects to a Ubiquiti Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Ubiquiti UISP Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Wave-Nano Features:
5 GHz backup radio
Link range: up to 5 km
Router mode support
Integrated GPS antenna
Mechanical
Dimensions Ø256.5 x 113.5 mm
Weight Without mount: 932 g
With mount: 1.2 kg )
Enclosure materials Aluminum alloy, UV stabilized plastic
Mount materials Aluminum alloy, UV stabilized plastic
Pole mount diameter 25 to 63.5 mm on pipe outer diameter
Wind loading 127 N at 200 km/h
Weatherproofing IPX6
Hardware
Processor Dual ARM® Cortex-A53 cores at 1GHz
Memory DDR3L 512MB
Networking interface (1) GbE RJ45 port
Max. power consumption 18W
Power method 48VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
24VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply 48VDC, 0.65A gigabit PoE adapter (included)
Can be powered by a UISP Router or UISP Switch
Button Factory reset
LEDs Power, Ethernet, GPS, link
Operating temperature -40 to 60° C
Operating humidity 5 to 95% noncondensing
