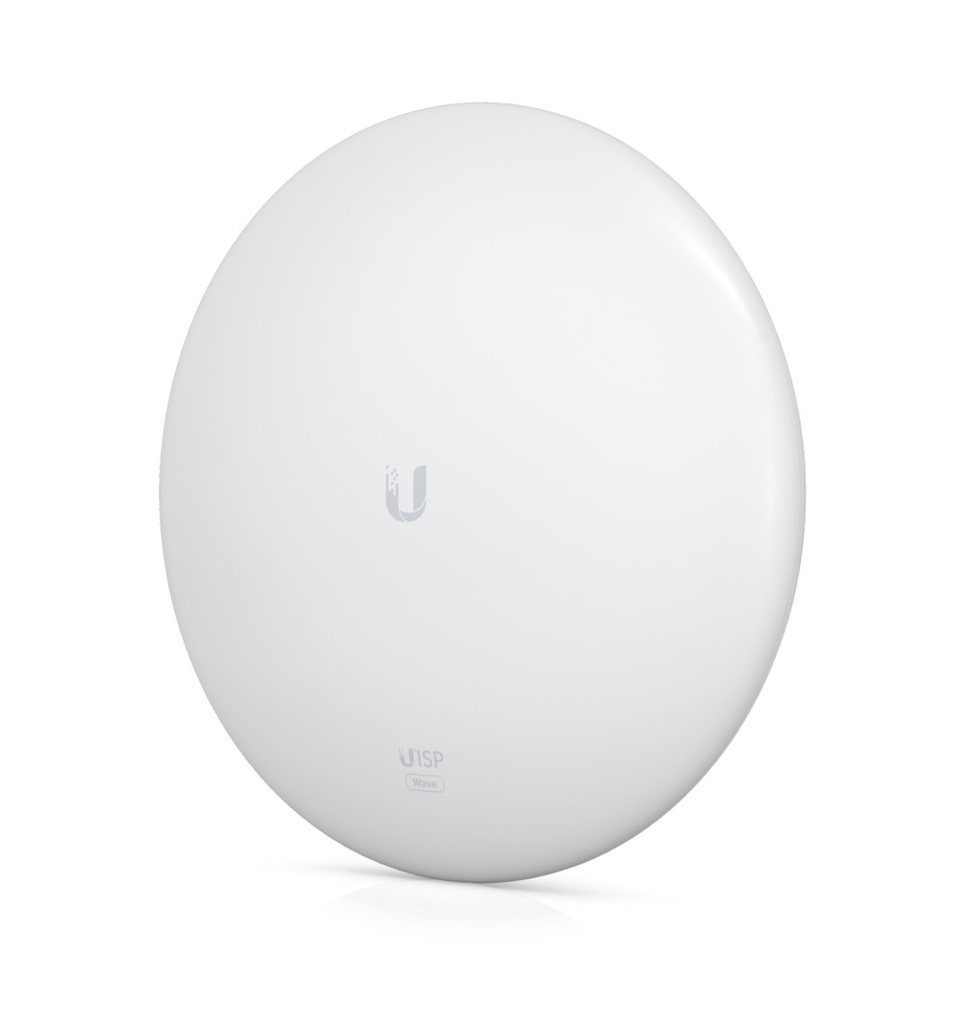

Ubiquiti Wave-LR UISP Wave Long-Range 60 GHz + 5 GHz 60 GHz PtMP Station Powered by Wave Technology
Ubiquiti Wave-LR 60 GHz PtMP station powered by Wave Technology.
The Wave-LR connects to a Ubiquiti Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Ubiquiti Wave-LR Features:
5 GHz backup radio
Link range: up to 8 km
Router mode support
Integrated GPS antenna
Mechanical
Dimensions Ø424.4 x 166.2 mm
Weight Without mount: 2.59 kg
With mount: 3.79 kg
Enclosure material UV stabilized plastic
Mount material Galvanized steel
Pole mount diameter 25 to 76.2 mm on pipe outer diameter
Wind loading 286 N at 200 km/h
Weatherproofing IPX6
Hardware
Processor Dual ARM® Cortex-A53 cores at 1GHz
Memory DDR3L 512MB
Networking interface (1) GbE RJ45 port
Max. power consumption 18W
Power method 48VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
24VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply 48VDC, 0.65A gigabit PoE adapter (included)
Can be powered by a UISP Router or UISP Switch
Button Factory reset
LEDs Power, Ethernet, GPS, link
Operating temperature -40 to 60° C
Operating humidity 5 to 95% noncondensing
