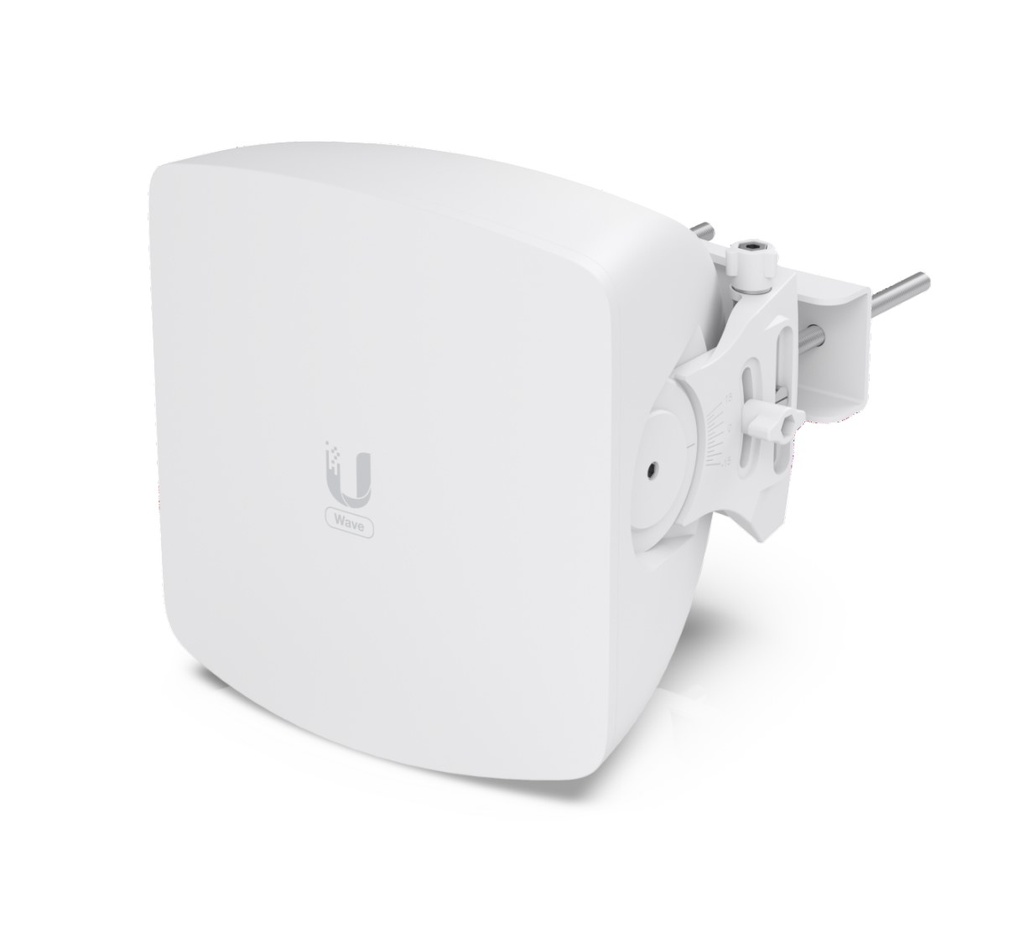

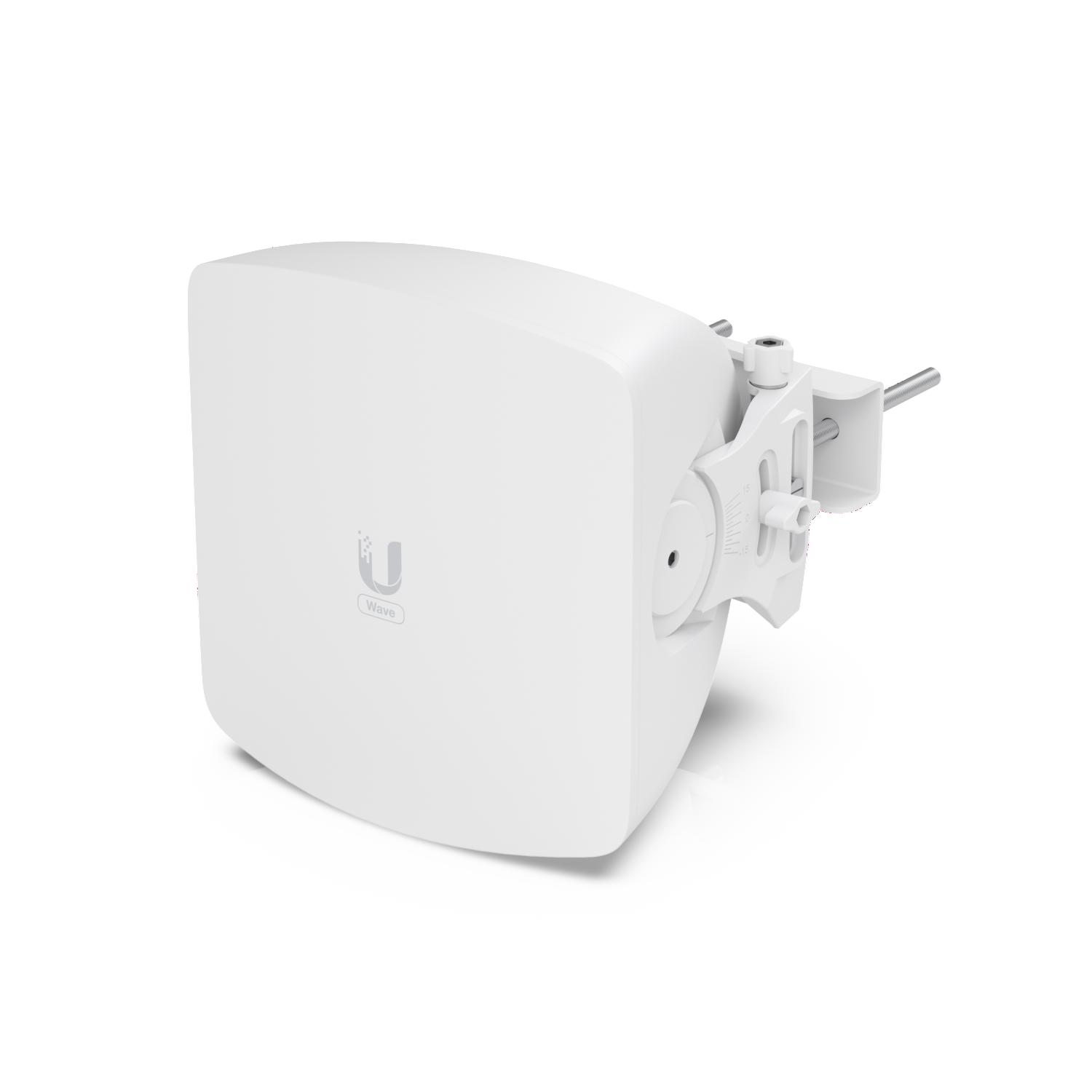

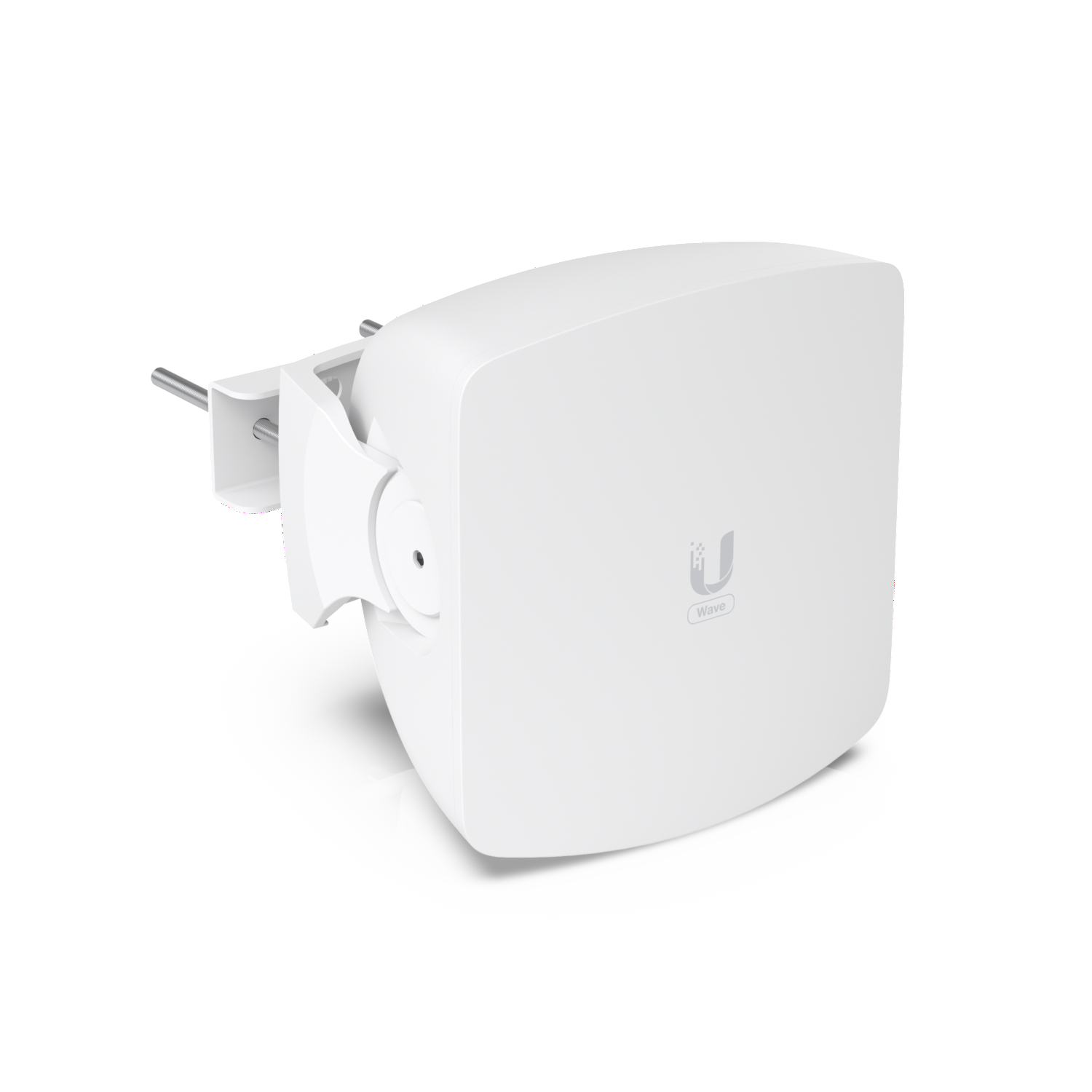

Ubiquiti Wave-AP UISP Wave Access Point 60GHz and 5GHz AP PtMP Access Point Powered by Wave Technology
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti Wave-AP UISP Wave Access Point 60GHz AP PtMP Access Point Powered by Wave Technology
Ubiquiti Wave-AP 60 GHz PtMP access point powered by Wave Technology.
The Ubiquiti Wave-AP Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.
5 GHz backup radio
Supported stations and distances:
Wave Long-Range: up to 8 km
Wave Nano: up to 5 km
WAN Ports: (1) 10G SFP+, (1) 2.5GbE
Integrated GPS antenna
Dimensions 212 x 205 x 187 mm
Weight 2.3 kg
Enclosure materials Aluminum alloy, UV stabilized polycarbonate
Pole mount diameter 25 to 76 mm on pipe outer diameter
Wind loading 98 N at 200 km/h
Processor Quad ARM® Cortex-A53 cores at 1.4GHz
Memory DDR3L 512MB
Networking interface (1) 2.5GbE RJ45 port(100/1000/2500)*
(1) 10G SFP+ port(1/10)
Max. power consumption 24W
Power method 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply 48V DC, 0.65A 2.5GbE PoE adapter (included)
Button Factory reset
LEDs Power, Ethernet, GPS
Operating temperature -40 to 60° C
Operating humidity 5 to 95% noncondensing
