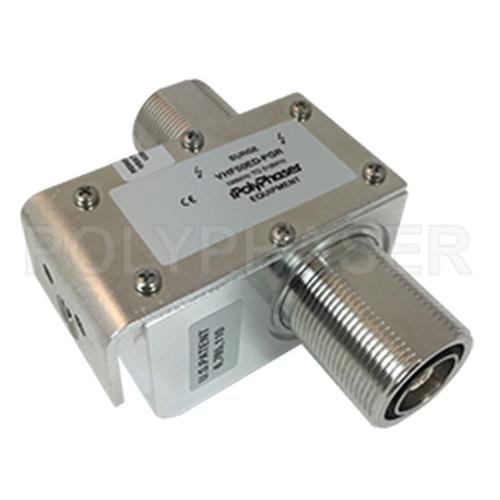

PolyPhaser VHF50ED-PGR 7/16 F/F Coaxial RF Surge Protector, 100MHz - 512MHz, DC Block Bracket Down, Hole Mount


Product Code: VHF50ED-PGR

406.78 incl. GST 406.78000000000003 AUD 406.78


    This combination does not exist.

    Add to Cart


    PolyPhaser leads the market with its patented RF protection solutions, specifically supporting communications systems. Based on its extensive experience with multi-stage surge protection, PolyPhaser continuously expands its product offering to support the needs of advanced applications with technologies such as DC Block, DC Pass and Ultra Low PIM.

    100% Original
    Fast Delivery

    Share this product:

    PolyPhaser VHF50ED-PGR 7/16 F/F Coaxial RF Surge Protector, 100MHz - 512MHz, DC Block Bracket Down, Hole Mount


    • Impedance 50 Ohm

    • Connector In Series 7/16 DIN

    • Connector In Gender Female

    • Connector Out Series 7/16 DIN

    • Connector Out Gender Female

    • Minimum Frequency 100 MHz

    • Maximum Frequency 512 MHz

    • Maximum Input Power 750 Watts

    • Direction Directional

    • Throughput Energy 0.5 uJ

    PolyPhaser VHF50ED-PGR 7/16 F/F Coaxial RF Surge Protector, 100MHz - 512MHz, DC Block, 750W, IP67, .5uJ, 20kA, Filter, Low PIM -155 dBc, Bracket Down, Hole Mount

    PolyPhaser coaxial RF surge protector (also known as lightning surge protector, lightning surge arrestor or suppressor) VHF50ED-PGR is in-stock and will ship same-day as purchased. This radio frequency surge protector / lightning surge arrestor helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes. Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass 100 MHz to 512 MHz while suppressing DC surge.

    While this radio frequency lightning surge suppressor operates in a range of frequencies from 100MHz to 512MHz, it is supporting a power handling maximum of 750 Watts. RF surge protector VHF50ED-PGR from PolyPhaser incorporates surge filter technology to provide protection for equipment at up to the max. power of 750W. Our coax surge protection device for RF is manufactured with a 7/16 DIN connection in and a 7/16 DIN out.

    VHF50ED-PGR is constructed with a female gender for the input and female for the output. This F/F 7/16 DIN to 7/16 DIN surge protecting component for RF has a let-through energy of .5uJ. PolyPhaser protection device VHF50ED-PGR is designed with low passive intermodulation (PIM). This 7/16 DIN PIM RF surge protector is rated for -155 dBc. The coaxial lightning surge arrestor is IP rated, it has an IP67 rating.

    PolyPhaser VHF50ED-PGR provides one of the largest varieties of RF / microwave surge protector devices available for same-day shipping. Our facilities ship 7/16 F/F coaxial RF surge protector, 100MHz - 512MHz, DC block, 750W, IP67, .5uJ, 20kA, filter, low PIM -155 dBc, bracket down, hole mount as well as the rest of our surge protection product line from in-stock inventory the same day as purchased. We support our customers with a sense of urgency while providing innovative lightning and surge protection solutions that ensure reliable operation of critical systems for a connected world.
