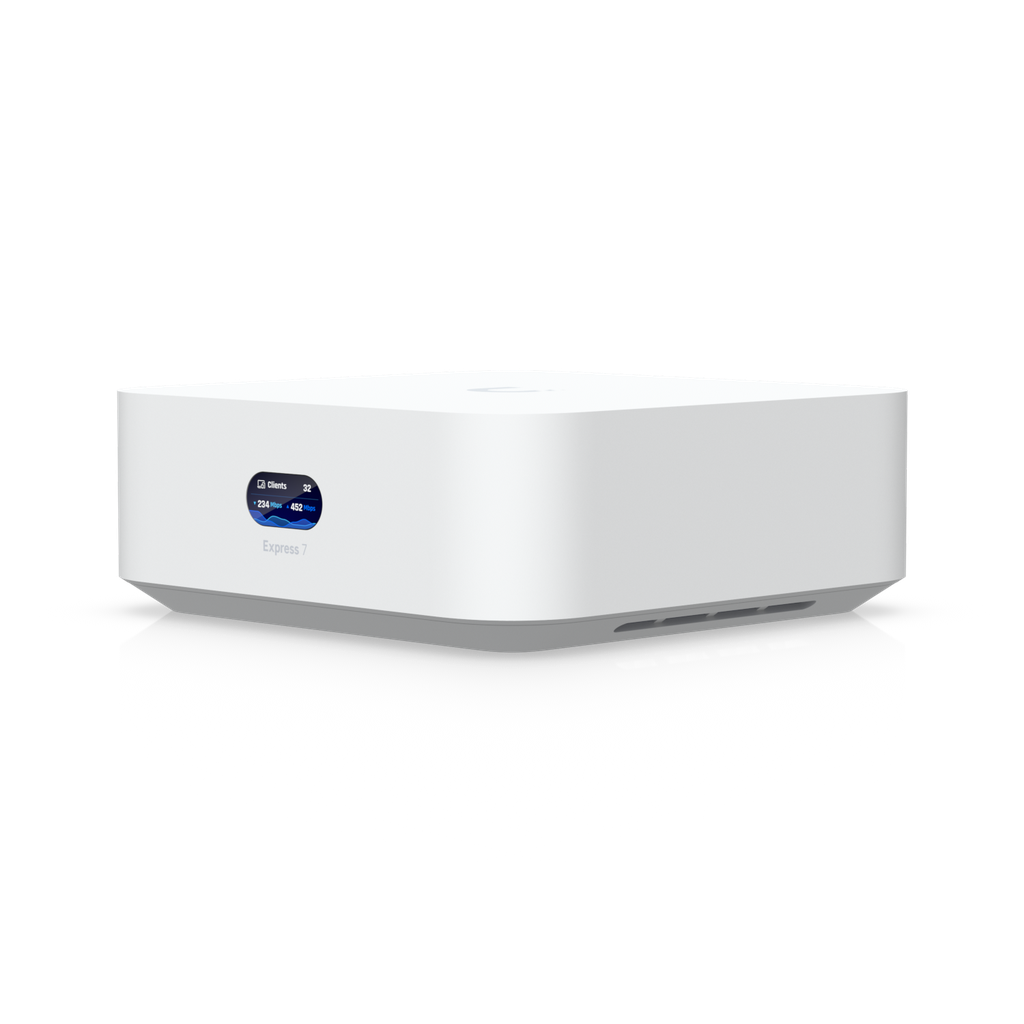

    Ubiquiti UX7 UniFi Express Router WiFi7

    The Ubiquiti Unifi UX7 Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.

    Integrated 6-stream WiFi 7 with 6 GHz support

    Optionally adopted as wired or meshed Layer 2 UniFi AP to extend coverage

    140 m² (1,500 ft²) coverage

    Manages 30+ UniFi devices and 300+ clients

    (1) 10 GbE RJ45 WAN port

    (1) 2.5 GbE RJ45 LAN port to extend network

    Technical Specifications
    Mechanical
    Dimensions117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7")
    Weight422 g (14.9 oz)
    Enclosure materialPolycarbonate
    Hardware
    Management interfaceEthernet
    Bluetooth
    Networking interfaceLAN:
    (1) 2.5 GbE RJ45 port

    WAN:
    (1) 10 GbE RJ45 port
    IDS/IPS throughput2.3 Gbps
    Power methodUSB type C (5V DC/5A)
    Max. power consumption22W
    Max. TX power
    2.4 GHz
    5 GHz
    6 GHz
    23 dBm
    26 dBm
    24 dBm
    MIMO
    2.4 GHz
    5 GHz
    6 GHz
    2 x 2 (DL/UL MU-MIMO)
    2 x 2 (DL/UL MU-MIMO)
    2 x 2 (DL/UL MU-MIMO)
    Throughput rate
    2.4 GHz
    5 GHz
    6 GHz
    688 Mbps (BW40)
    4.3 Gbps (BW240)
    5.7 Gbps (BW320)
    Antenna gain
    2.4 GHz
    5 GHz
    6 GHz
    4 dBi
    7 dBi
    6 dBi
    LCM display0.96" status display
    LEDsRJ45 green: link/activity
    ButtonFactory reset
    Ambient operating temperature-10 to 40° C (14 to 104° F)
    Ambient operating humidity5 to 95% noncondensing
    CertificationsCE, FCC, IC
    Gateway Features
    PerformanceInternet quality and outage reporting
    Next-generation securityApplication-aware firewall rules
    Content, country, domain, and ad filtering
    VLAN/subnet-based traffic segmentation
    Full stateful firewall
    Advanced networkingLicense-free SD-WAN
    WireGuard, L2TP and OpenVPN server
    OpenVPN client
    OpenVPN and IPsec site-to-site VPN
    One-click Teleport VPN
    Policy-based WAN and VPN routing
    DHCP relay
    Customizable DHCP server
    IGMP proxy
    IPv6 ISP support
    Software
    WiFi standards802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
    Wireless securityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
    BSSIDGateway mode: 4 per radio
    Standard AP: 4 per radio
    VLAN802.1Q
    Advanced QoSPer-user rate limiting
    Guest traffic isolationSupported
    Concurrent clients300+
    Supported Data Rates
    802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b1, 2, 5.5, 11 Mbps
    802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    802.11be (WiFi 7)7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
    Application Requirements
    UniFi Network
