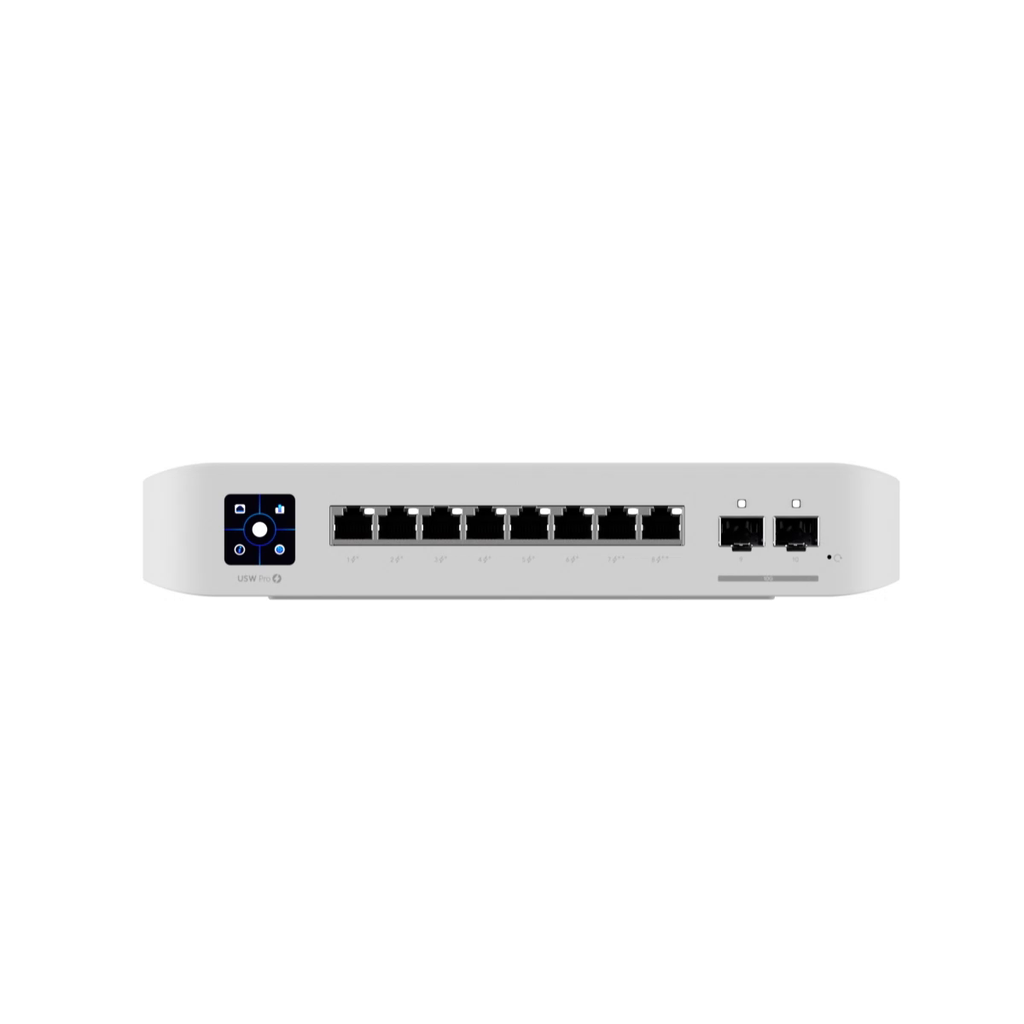

Ubiquiti USW-Pro-8-POE Professional 8 PoE UniFi Gigabit Switch with PoE++, Layer3 Features and SFP+
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti USW-Pro-8-POE Professional UniFi 8 Port Gigabit Switch with PoE++, Layer3 Features and SFP+
Ubiquiti Unifi USW-Pro-8-POE Professional is a 8-port, Layer 3 switch with PoE+ and PoE++ output.
(6) GbE PoE+ ports
(2) GbE PoE++ ports
(2) 10G SFP+ ports
120W total PoE availability
USW-Pro-8-POE Technical Specifications
USW-Pro-8-POE Mechanical
Dimensions 200 x 248 x 44 mm
Weight 2.1 kg
Enclosure materials Plastic, metal
Mount material Plastic
USW-Pro-8-POE Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
(2) 10 Gbps SFP+ ports
PoE interface (6) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 28 Gbps
Switching capacity 56 Gbps
Power method Universal input, 100—240V AC, max. 2A
Power supply AC/DC, internal
Supported voltage range 100—240V AC
Max. power consumption 30W (Excluding PoE output)
Total available PoE 120W
Max. PoE wattage per port by PSE PoE: 15W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
PoE++: 50—57V
LCM display (1) 1.3" touchscreen
LEDs RJ45 ports: link/activity
Button Factory reset
Operating temperature -5 to 45° C
Operating humidity 10 to 90% noncondensing
