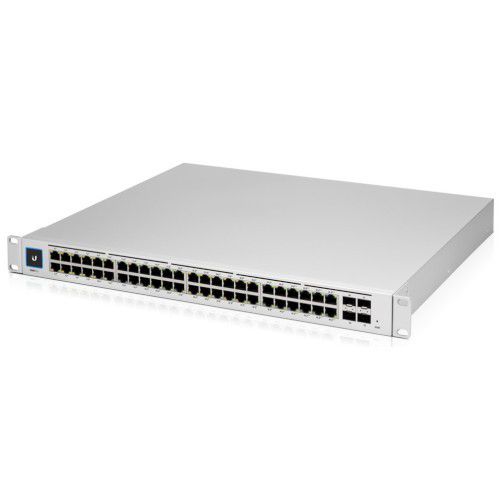

Ubiquiti USW-48-POE Gen2 UniFi 48 Port Gigabit Switch with 32 PoE+ Ports and SFP
Switch 48 PoE for UniFi networks, featuring 48 (32 PoE+) GbE RJ45 ports, 4 1G SFP ports, 195W PoE availability, and 104 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

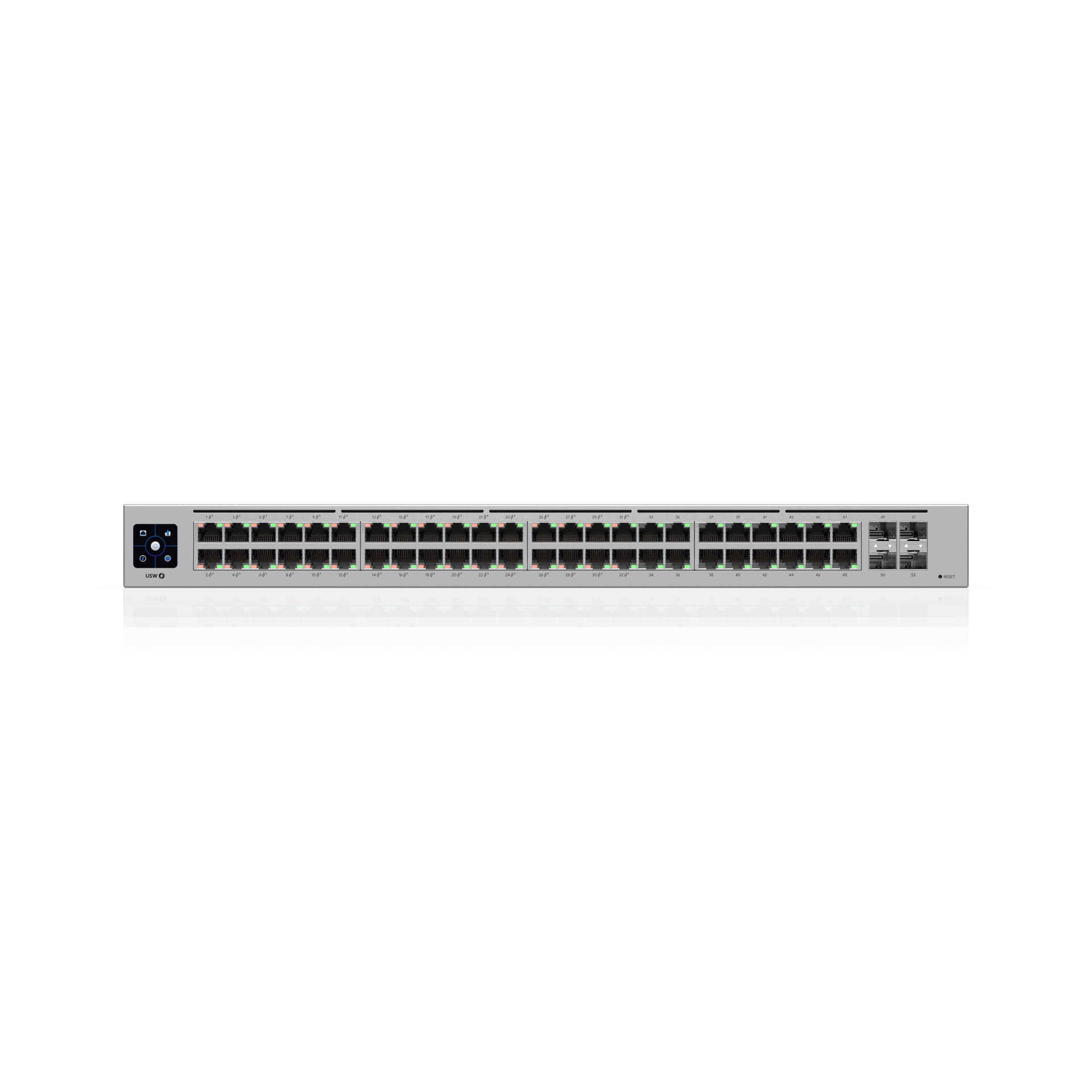

Ubiquiti USW-48-POE UniFi Switch 48 PoE
USW-48-POE is a UniFi PoE switch for managed business networks, with 48 (32 PoE+) GbE RJ45 ports, 4 1G SFP ports, 104 Gbps switching capacity, and 195W PoE availability.
Key Features
- A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.
- High-density switching with 48 (32 PoE+) GbE RJ45 ports, 4 1G SFP ports.
- Performance designed for demanding UniFi networks, including 104 Gbps switching capacity.
- Integrated PoE support with 195W total PoE availability.
- Rack mount (1U) form factor for clean installation in network cabinets or branches.
Technical Specifications
- Dimensions: 442 x 285 x 44 mm
- Weight: Without mounting brackets: 4.5 kg; With mounting brackets: 4.6 kg
- Connectivity: 48 (32 PoE+) GbE RJ45 ports, 4 1G SFP ports
- Power method: Universal input, 100–240V AC, 50/60 Hz
- Max. power consumption: 45W (Excluding PoE Output); 240W (Including PoE Output)
- PoE budget: 195W
- Switching capacity: 104 Gbps
- Total non-blocking throughput: 52 Gbps
- Forwarding rate: 77 Mpps
- Form factor / mounting: Rack mount (1U)
- Operating temperature: -5 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 00593-21-08356
- Application requirements: Version 7.2.94 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- Packet Buffer Size: 1.5 MB
