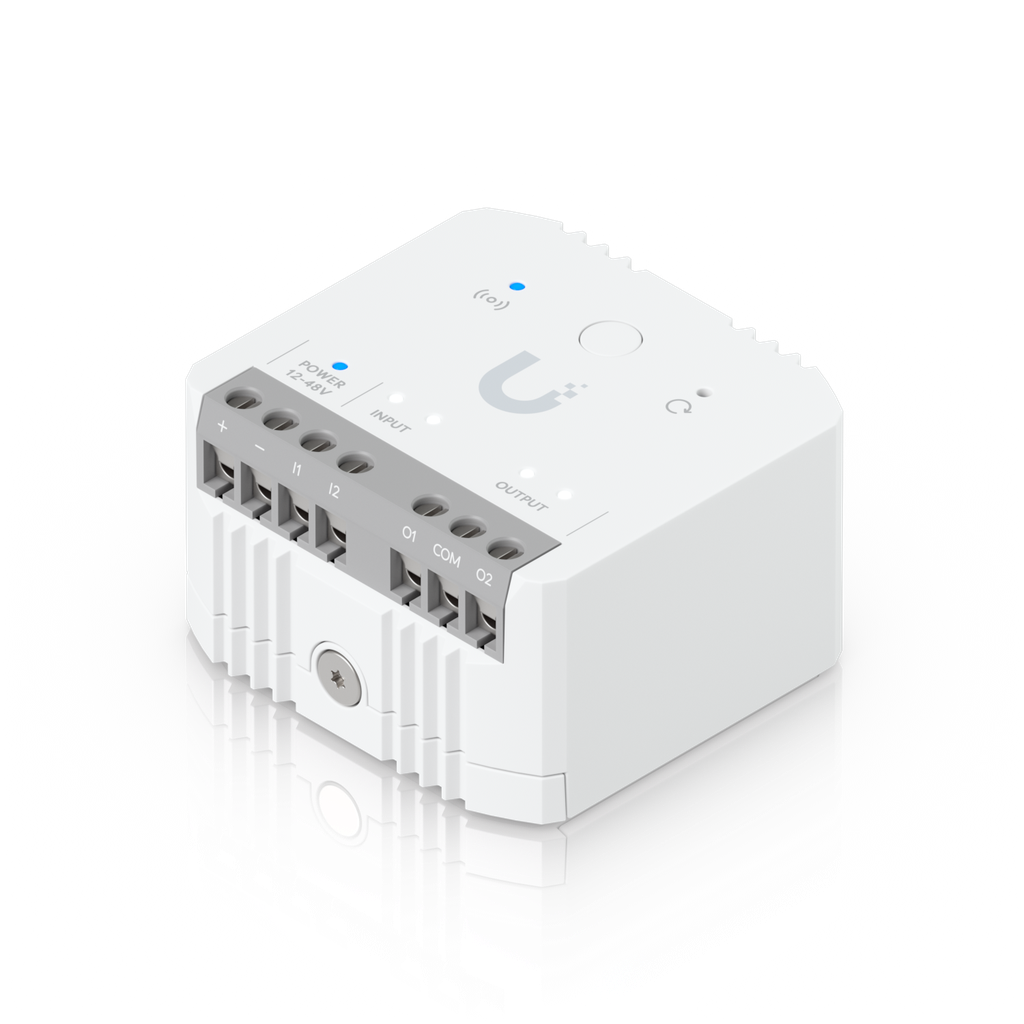

Ubiquiti USL-Relay-US UniFi SuperLink Relay

https://citytechnology.com.au/web/image/product.template/23031/image_1920?unique=654425b

Product Code: USL-Relay-US

$ 78.21 incl. GST 78.21000000000001 AUD $ 78.21

$ 69.00

    This combination does not exist.

    Add to Cart
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Terms and Conditions
    100% Original
    Fast Delivery

    Share this product:

    Ubiquiti USL-Relay-US UniFi SuperLink Relay

    Compact SuperLink relay designed with I/O interfaces for seamless integration with third-party sensors and signaling devices.

    SuperLink
    Technical Specifications
    Overview
    Dimensions
    50 x 47.6 x 28 mm (2 × 1.9 × 1.1")
    Mounting
    Adhesive, wall and DIN rail mount
    UniFi Application Suite
    Protect
    Performance
    Connectivity
    SuperLink (Proprietary)
    Operating Frequency
    US
    915.6–927.6 MHz
    EU
    N/A
    Antenna Gain
    SuperLink
    1 dBi
    Max. TX Power
    SuperLink
    14 dBm
    Max. Range
    SuperLink
    2 km (1.2 mi)
    Hardware
    Power Method
    12V DC / 24V DC / 48V DC
    Weight
    100 g (3.5 oz)
    Enclosure Material
    Polycarbonate
    Mount Material
    Polycarbonate
    Buttons
    (1) Factory reset (1) Test button
    Terminal Blocks
    Output
    O1/COM/O2 Dry contact only (12-48V DC, 12-240V AC) 10A/port, UL total max: 12A IEC total max: 16A
    Input
    I1/I2 Dry contact only Open/Short (GND) Integrated 5V TVS protection
    Power
    VDD/GND 12–48V DC, max. 48V Integrated over-temperature protection (OTP) at 85°C (185°F)
    LEDs
    (1) LoRa, Status: RGBW (2) Signal input, Relay output: W
    Ambient Operating Temperature
    0 to 40° C (32 to 104° F)
    Ambient Operating Humidity
    10 to 90% noncondensing
    Certifications
    CE, FCC, IC
    NDAA Compliant
    Yes
    Software
    Application Requirements
    Web Application
    UniFi Protect
    Mobile App
    UniFi Protect iOS™ and Android™
    MHz
