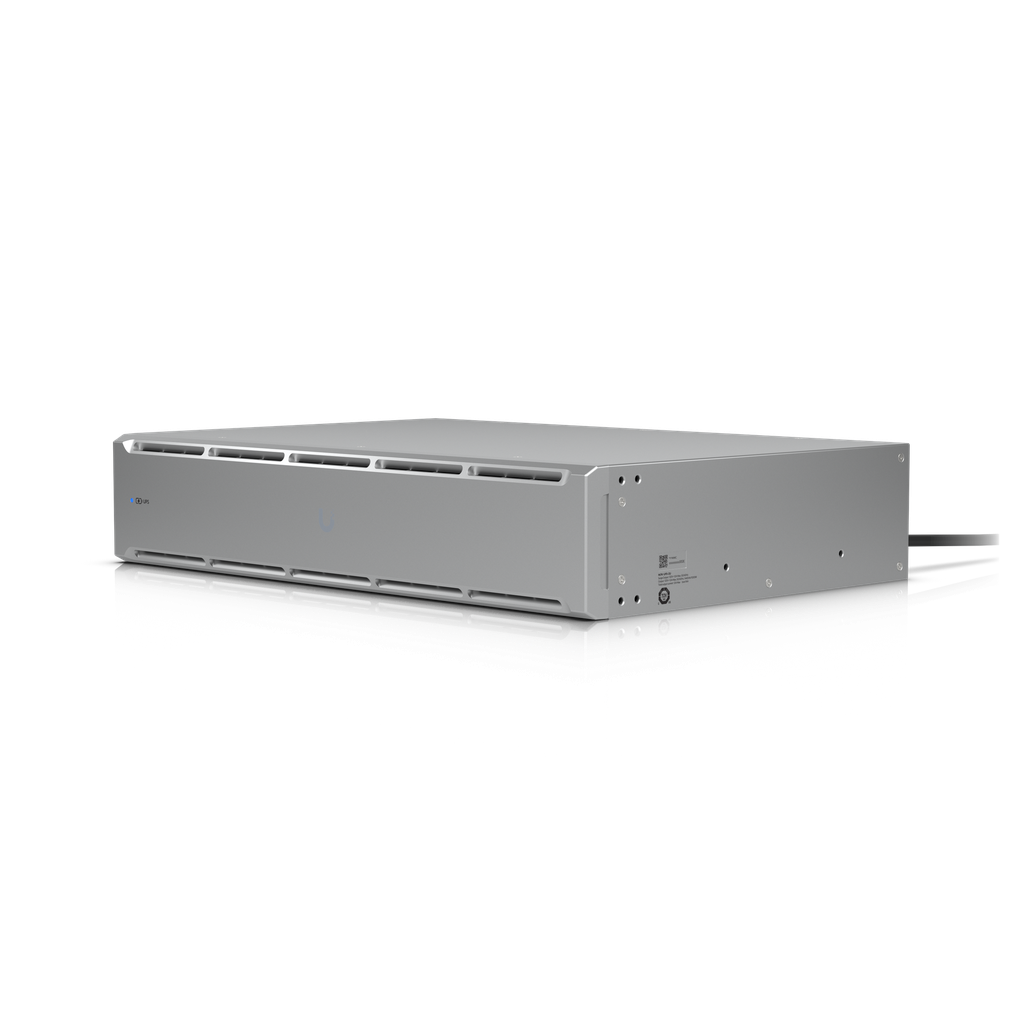

Ubiquiti UPS-2U UniFi UPS 2U UniFi Managed 1.44kVA Rackmount Uninterruptible Power Supply With 8 Outlets
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti UPS-2U UniFi UPS 2U
Product Code: USPS-2U
(2) GbE ports for Surge In/Out
(1) 100/10 MbE port for network connection
(8) 240V AC outputs; 1000W
Battery backup power system (UPS)
Internal battery 216Wh
Technical Specifications
Mechanical Dimensions 442.4 x 300 x 87.4 mm (17.4 x 11.8 x 3.4") Weight 14 kg (30.9 lb) Enclosure Material Galvanized steel Form Factor Rack mount (2U) Weatherproofing IP20 Hardware Management Ethernet Networking Interface (1) 100/10 MbE port for network connection (2) GbE ports for surge in/out Power (1) OVC II AC in: NEMA 5‑15P (4) Battery backup/surge protection: NEMA 5‑15R (4) Surge protection: NEMA 5‑15R Capacity 1,440VA/1,000W Type Line interactive Input Voltage Range 89—145V AC Power Method (1) TN system, 120V AC, 12A Max., 50/60 Hz Nominal Input Voltage 120V AC Output Voltage 120V AC Frequency Range AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 60 Hz ±1 Hz AC Voltage Regulation ±10% (Battery mode) Transfer Time 6 ms typical; 10 ms max. (Battery mode) Wave Form Simulated sine wave (Battery mode) Battery Type (2) Lead Acid 12V, 9Ah Runtime Full load: 2.3 min Half load: 8 min Battery Charging Time 6-8 hours recovery to 90% capacity Overload at On-Line Mode 110% 5 min go to fault 120% go to fault immediately Overload at Battery Mode 110% shutdown in 5 sec 120% shutdown immediately Short Circuit Protection at On-Line Mode Breaker, 250V AC, 15A Output Short-Circuit Current Ipeak 348.0A Irms 115.1A Buttons (1) Power (1) Factory reset LEDs Status Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery Operating Altitude 3,000 m (1.9 mi) Operating Environment Pollution Degree 2 Ambient Storage Temperature -20 to 50° C (-4 to 122° F) Ambient Operating Temperature 0 to 40° C (32 to 104° F) Ambient Operating Humidity 0 to 95% noncondensing NDAA Compliant Yes |
|---|
