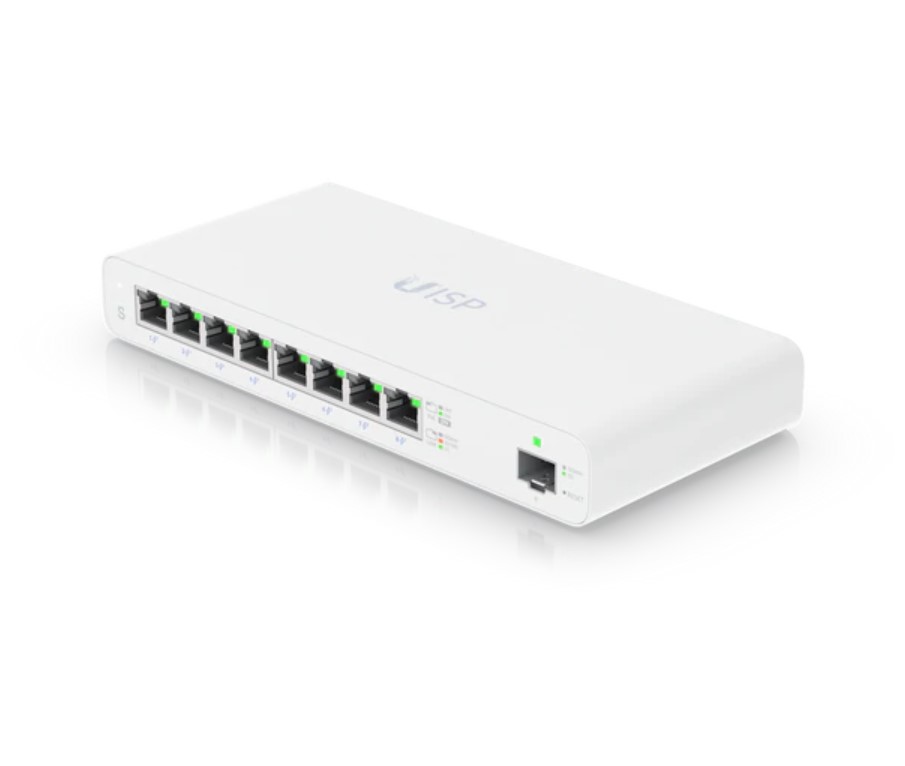

Ubiquiti UISP-S Gigabit PoE Switch for MicroPoP Applications
Product Code: UISP-S
Gigabit PoE switch for MicroPoP applications.
The Ubiquiti UISP-S is ideal for wireless ISP (WISP) deployments, the UISP™ Switch is a fanless, Layer 2 PoE switch with (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option. The UISP Switch is a cost-effective solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Switch delivers substantial power to every radio in your service network. For larger deployments, pair it with the UISP Console to create a cohesive routing and switching hub. The UISP Switch is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.
Ubiquiti UISP-S Features:
(8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes
(1) 1G SFP port
110W PoE supply when powered with the included AC/DC adapter
Fanless, thermal cooling for silent operation
Wall-mountable (kit included)
Layer 2 switching features
Easy, Bluetooth-powered setup via the UISP Mobile app
Mechanical:
Dimensions: 210.4 x 95 x 29 mm (8.28 x 3.74 x 1.14")
Weight: 610 g (1.34 lb)
Enclosure material: Polycarbonate
Hardware:
Total non-blocking throughput: 9 Gbps
Switching capacity: 18 Gbps
Forwarding rate: 13.392 Mpps
Networking interface: (8) 10/100/1000 MbE RJ45 ports
(1) 1G SFP port
Management interface:
Ethernet in-band: Bluetooth BLE
Power method: External AC/DC adapter
Power supply: 27VDC, 4.4A power adapter (included)
Supported voltage range: 24 - 28VDC
Max. power consumption: 8W (excludes PoE output)
ESD/EMP protection: Air: ± 15 kV, contact: ± 8 kV
Operating temperature: -10 to 50° C (14 to 122° F)
Operating humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC
PoE:
PoE interface: (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)
Max. Passive PoE wattage per port: 30W/27VDC
Passive PoE voltage range: 27VDC
LEDs:
System: Status
RJ45 data ports: PoE Speed/link/activity
SFP data ports: Link/activity
