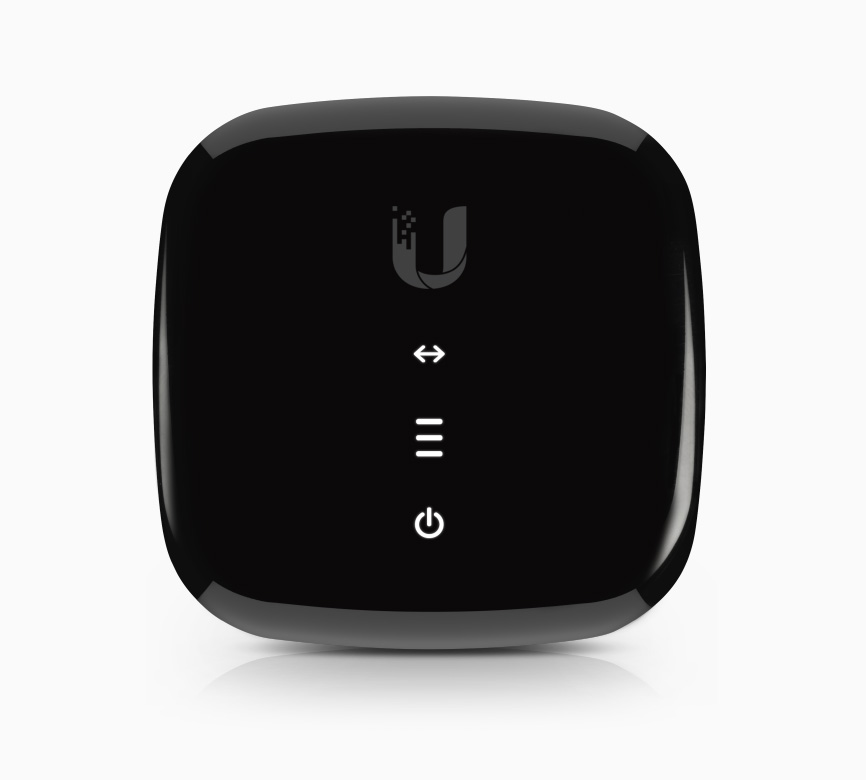

Ubiquiti UISP-FIBER-XGS UISP Fiber 10 Gbps Uplink/Downlink Up To 20km

https://citytechnology.com.au/web/image/product.template/20608/image_1920?unique=32fb34b

Product Code: UISP-FIBER-XGS

Barcode: 810084691199

282.15 incl. GST 282.15000000000003 AUD 282.15

249.00


    This combination does not exist.

    Add to Cart

    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.


    100% Original
    Fast Delivery


    Share this product:

    Ubiquiti UISP-FIBER-XGS UISP Fiber 10 Gbps Uplink/Downlink Up To 20km

    • Ubiquiti UISP-FIBER-XGS is an optical network unit that can deliver 10 Gbps uplink/downlink speeds over distances up to 20 km.

    • (1) XGS-PON port

    • (1) 10GbE RJ45 LAN port

    • Note. This device is only compatible with the Ubiquiti UISP Fiber XGS OLT. It cannot be used with third-party OLTs.

    UISP-FIBER-XGS Technical Specifications

    Mechanical

    • 100 x 100 x 27 mm
      Weight 220 g

    • Enclosure material UV-stabilized polycarbonate

    Hardware

    • Networking interface (1) SC/APC, ITU-G.9807 XGSPON WAN port

    • (1) 100/1,000/2,500/5,000/10,000 MbE RJ45 LAN ports

    • Management interface Ethernet in-band

    • PON

    • Memory 256 MB DDR

    • Onboard flash storage 32 MB NOR

    • Max. power consumption 8W

    • Power method USB-C 5V DC, 3A

    • Power supply 5V DC, 3A power adapter

    • Supported voltage range 5V DC power adapter

    • Total non-blocking line rate Downstream: 9.95 Gbit/s

    • Upstream: 9.95 Gbit/s

    • Normal TX range of optical module 4 to 9dBm

    • Normal RX range of optical module -9 to -26dBm

    • Button (1) Factory reset

    • Operating temperature -15 to 45° C

    • Operating humidity 10 to 95% non-condensing

    • Certifications CE, FCC, IC

    Fiber

    • Operating wavelength TX: 1,270nm

    • RX: 1,577nm

    • Line code Scrambled NRZ

    • Physical reach 20 km

    LEDs

    • Power White: ON

    • Ethernet Steady white: link up

    • Blinking white: activity

    • OFF: link down

    • PON status (3) signal LEDs

    • All-OFF: bootup

    • 1x orange: signal too low (< -27 dbm)

    • 1x white: signal low (>= -27 dbm)

    • 2x white: signal good (>= -24 dbm)

    • 3x white: signal strong (>= -12 dbm)

    • 1x orange + 2x white: signal too strong (>= -9 dbm)

    • 3x orange: no signal

    • LEDs alternate between orange + white + orange and a signal strength indicator: no authority
