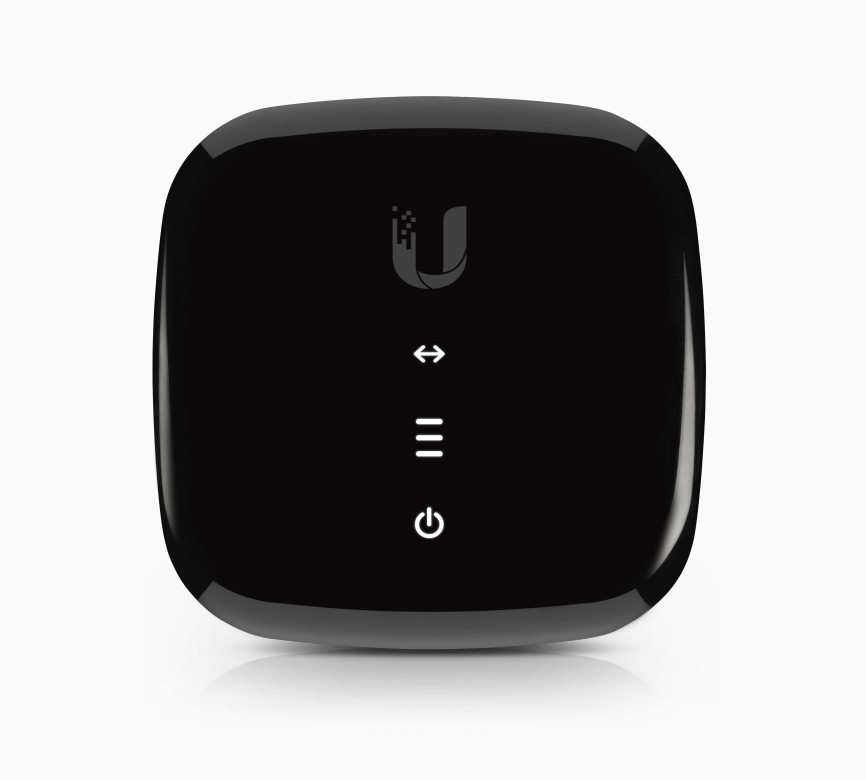

Ubiquiti UISP-FIBER-XG UISP Fiber 2.5Gbps Uplink / 10Gbps Downlink Up To 20km

Ubiquiti UISP-FIBER-XG UISP Fiber 2.5Gbps Uplink / 10Gbps Downlink Up To 20km

• Ubiquiti UISP-FIBER-XGS is an optical network unit that can deliver 2.5 Gbps uplink / 10Gbps downlink speeds over distances up to 20 km.

• (1) XG-PON port

• (1) 2.5GbE RJ45 LAN port and 24V POE input

• Note. This device is only compatible with the Ubiquiti UISP Fiber XGS OLT. It cannot be used with third-party OLTs.

UISP-FIBER-XG Technical Specifications

Mechanical

• 100 x 100 x 27 mm
  Weight 220 g


• Enclosure material UV-stabilized polycarbonate

Hardware

• Networking interface (1) SC/APC, ITU-G.987 XGPON WAN port

• (1) 100/1,000/2,500 MbE RJ45 LAN ports

• Management interface Ethernet in-band

• PON

• Memory 256 MB DDR

• Onboard flash storage 32 MB NOR

• Max. power consumption 6W

• Power method USB-C 5V DC, 3A

• Power supply 5V DC, 3A power adapter and 24V DC Passive POE

• Supported voltage range 5V DC power adapter Passive PoE 2-pair (4, 5+; 7, 8-) 10–30V DC passive PoE

• Total non-blocking line rate Downstream: 9.95 Gbit/s

• Upstream: 2.44 Gbit/s

• Normal TX range of optical module 2 to 7dBm

• Normal RX range of optical module -9 to -27dBm

• Button (1) Factory reset

• Operating temperature -15 to 45° C

• Operating humidity 10 to 95% non-condensing

• Certifications CE, FCC, IC

Fiber

• Operating wavelength TX: 1,270nm

• RX: 1,577nm

• Line code Scrambled NRZ

• Physical reach 20 km

LEDs

• Power White: ON

• Ethernet Steady white: link up

• Blinking white: activity

• OFF: link down

• PON status (3) signal LEDs

• All-OFF: bootup

• 1x orange: signal too low (< -27 dbm)

• 1x white: signal low (>= -27 dbm)

• 2x white: signal good (>= -24 dbm)

• 3x white: signal strong (>= -12 dbm)

• 1x orange + 2x white: signal too strong (>= -9 dbm)

• 3x orange: no signal

• LEDs alternate between orange + white + orange and a signal strength indicator: no authority
