Ubiquiti UF-OLT U Fiber 8-port GPON OLT
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

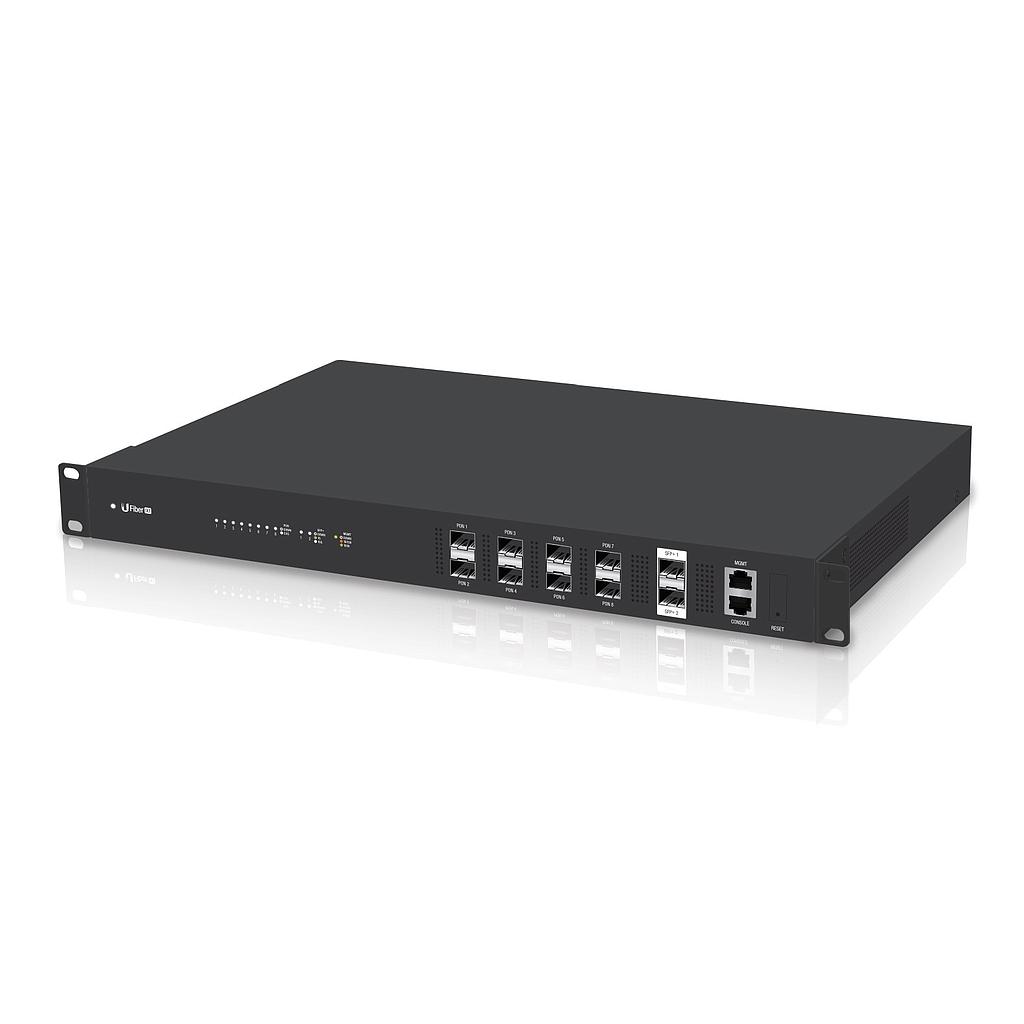

Ubiquiti UF-OLT U Fiber 8-port GPON OLT
The UFiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance.
Two SFP+ ports provide 10G of uplink connectivity.
The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules.
One AC/DC module is included; additional modules can be purchased separately.
Features:
- Ports: (8) GPON SFP Ports, (2) SFP+ Ports
- Concurrent Clients: 1024 ONUs
- GPON Range: Up to 20 km Link
- GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
- Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
- Max. Power Consumption: 40W
- Power Method: 54VDC PSU Module
- Mounting: 1U Rack-Mountable (Optional)
