Ubiquiti UF-LOCO 1 Gbps, GPON Subscription


Product Code: UF-LOCO

Barcode: 817882023559

98.45 incl. GST 98.45 AUD 98.45


    This combination does not exist.

    Add to Cart


    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    100% Original
    Fast Delivery

    Share this product:

    Ubiquiti UF-LOCO 1 Gbps, GPON Subscription

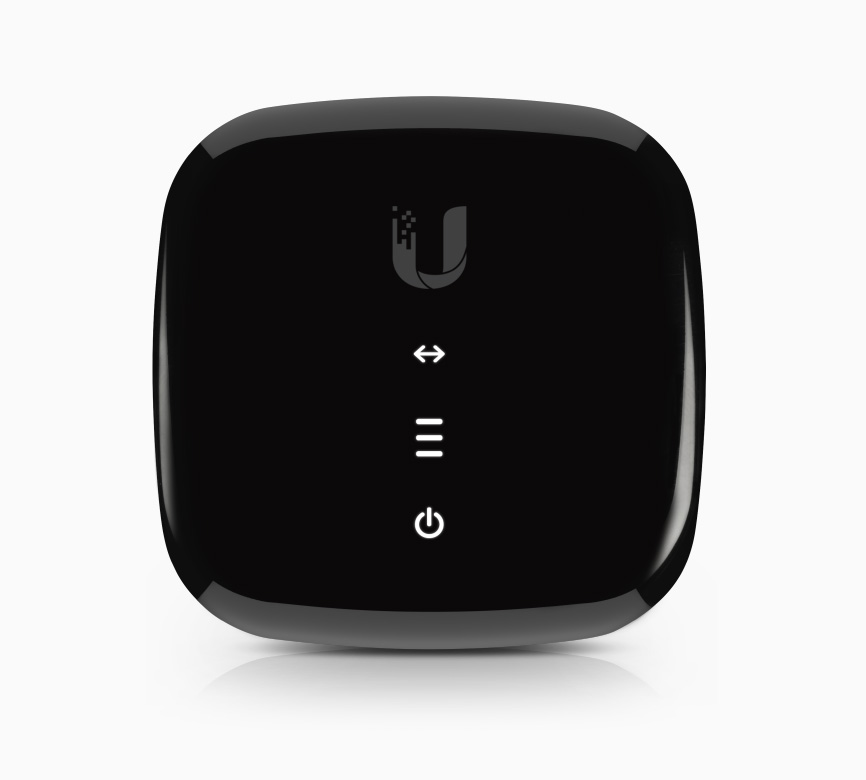

    Low-Cost Ubiquiti UFiber Loco GPON Optical Network Unit (ONT). Sporting a sleek industrial design, the UFiber loco is a robust, high performance GPON CPE that features extremely low power consumption and the choice of 24V passive PoE or Micro-USB power.


    • The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power
    • The UFiber loco can be powered by a Micro-USB Power Adapter (included) or 24V passive PoE
    • Up to 128 UFiber loco devices can be connected to a single GPON port
    • Supporting GPON links of up to 20 km, the UFiber loco integrates with the UFiber OLT and third-party OLT devices


    Manufacturer's Code



    76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04")


    77 g (2.72 oz)

    Networking Interface Speeds

    (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream, (1) GbE LAN, 10/100/1000 Mbps


    Interface In-Band Ethernet/PON

    Normal Optical Power Range

    TX (Class B+): 1.5 dBm to 5 dBm, RX: -28 dBm to -8 dBm

    Power Method

    Micro-USB: 5V, 1A, 24V Passive PoE (Pins +4, 5; -7, 8)

    Power Supply

    Micro-USB Power Adapter*: 5V, 1A

    Max. Power Consumption


    Supported Voltage Range

    4.7 to 5.3V

    Processor Specs

    MIPS32, 240 MHz

    Memory Information

    128 MB DDR3


    (1) Reset

    Operating Temperature

    -10 to 45° C (14 to 113° F)

    Operating Humidity

    10 to 90% Noncondensing


    CE, FCC, IC
