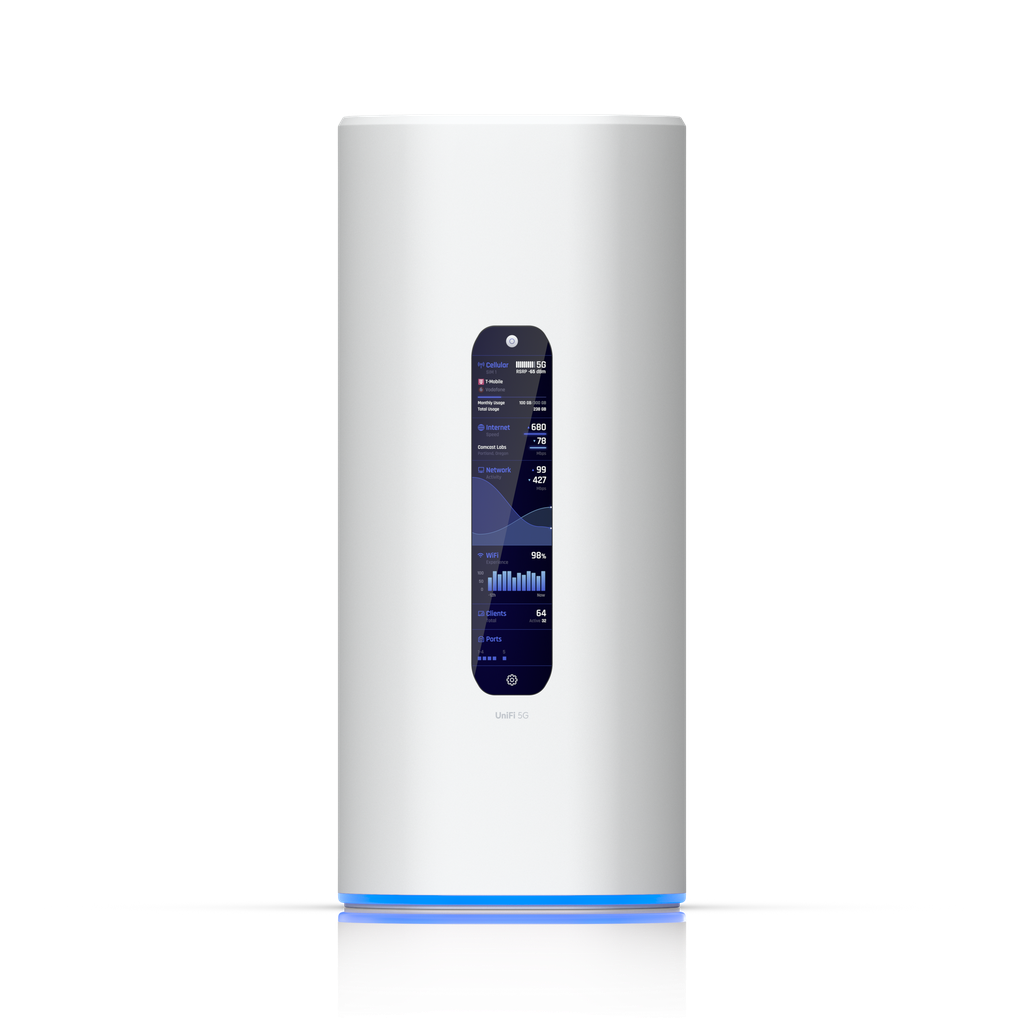

Ubiquiti UDR-5G-Max UniFi Dream Router 5G Max WiFi7 (ETA AUG 26)

https://streakwave.com.au/web/image/product.template/22998/image_1920?unique=c3db9c2

Product Code: UDR-5G-Max

$ 848.65 incl. GST 848.65 AUD $ 848.65

$ 749.00

    This combination does not exist.

    Add to Cart
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Terms and Conditions
    100% Original
    Fast Delivery

    Share this product:

    Ubiquiti UDR-5G-Max UniFi Dream Router 5G Max WiFi7

    Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage.

    Integrated 6-stream WiFi 7 AP with 6 GHz support

    Includes full UniFi application suite for device management with 64GB MircoSD Pre-installed for NVR

    Manages 30+ UniFi devices and 300+ clients

    Integrated 4-port switch with (1) PoE port

    (1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN port

    Nano SIM and eSim


    Overview
    Dimensions
    110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
    UniFi Application Suite
    Network
    Yes
    Protect
    Yes
    Access
    Yes
    Talk
    Yes
    Connect
    Yes
    Managed UniFi Devices
    30+
    Managed Cameras
    (5) HD (2) 2K (1) 4K
    Simultaneous Users Connected
    300+
    Max. WAN Port Count
    4
    Default WAN Ports
    (1) 10G SFP+ (1) 2.5 GbE RJ45
    Port Layout
    2.5 GbE RJ45
    4 (1 PoE) (2.5G/1G/100M)
    10G SFP+
    1 (10G/1G)
    IDS/IPS Throughput
    2.3 Gbps
    Form Factor
    Desktop
    Coverage Area
    160 m² (1,750 ft²)
    Security
    Stateful Firewall
    Yes
    Application-Aware Layer 7 Firewall
    Yes
    DPI & Traffic Identification
    Yes
    Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
    Yes
    Content Filtering
    Yes
    Intrusion Prevention (IPS/IDS)
    Yes
    Ad Blocking
    Yes
    IDS/IPS Signatures
    20,000+ with CyberSecure
    VPN & SD-WAN
    License-Free SD-WAN
    Yes
    Site-to-Site VPN
    Site Magic
    Yes
    IPsec
    Yes
    OpenVPN
    Yes
    VPN Server
    Identity Endpoint One-Click VPN
    Yes
    Teleport Zero-Configuration VPN
    Yes
    WireGuard
    Yes
    OpenVPN
    Yes
    L2TP
    Yes
    VPN Client
    OpenVPN
    Yes
    WireGuard
    Yes
    Site-to-Site VPN Single Tunnel Throughput
    Site Magic
    20
    VPN Client Single Tunnel Throughput
    WireGuard
    8
    OpenVPN
    8
    Networking
    Multi-WAN Load Balancing
    Yes
    Dynamic Routing
    OSPF
    Yes
    Advanced QoS
    Yes
    Multicast DNS (mDNS)
    Yes
    Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
    Yes
    Integrated RADIUS Server
    Yes
    RADIUS over TLS (RadSec)
    Yes
    Additional Internet Failover with UniFi LTE Backup
    Yes
    Internet Quality and Outage Reporting
    Yes
    MAC Address Table Size
    2,000
    Virtual Network Override
    Yes
    All Traffic Flows
    No
    Integrated WiFi
    WiFi Standard
    802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
    Throughput
    6 GHz
    5.7 Gbps
    5 GHz
    4.3 Gbps
    2.4 GHz
    688 Mbps
    MIMO
    6 GHz
    2 x 2 (DL/UL MU-MIMO)
    5 GHz
    2 x 2 (DL/UL MU-MIMO)
    2.4 GHz
    2 x 2 (DL/UL MU-MIMO)
    Antenna Gain
    6 GHz
    8 dBi
    5 GHz
    5 dBi
    2.4 GHz
    4 dBi
    Max. TX Power
    6 GHz
    22 dBm
    5 GHz
    26 dBm
    2.4 GHz
    23 dBm
    Wireless Security
    WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
    Max. BSSIDs
    4 per Radio
    Supported Data Rates
    802.11be (WiFi 7)
    7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
    802.11ax (WiFi 6/6E)
    7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    802.11ac (WiFi 5)
    6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    802.11n
    6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
    802.11g
    6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b
    1, 2, 5.5, 11 Mbps
    802.11a
    6, 9, 12, 18, 24, 36, 48, 54 Mbps
    Cellular
    5G NR
    Category
    5G NR Sub-6
    Frequency Bands
    n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
    Max. TX Power
    HPUE power class 2: 26 dBm
    4G LTE
    Frequency Bands
    B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
    Max. TX Power
    HPUE power class 2: 25 dBm
    3G UMTS
    Frequency Bands
    B1, B2, B4, B5, B8, B19
    Peak Data Speed
    5G NSA
    Downlink 3.4 Gbps Uplink 560 Mbps
    5G SA
    Downlink 1.8 Gbps Uplink 650 Mbps
    4G LTE
    Downlink 1.6 Gbps Uplink 210 Mbps
    Antenna Gain
    617-960 MHz: 3 dBi 1710-2700 MHz: 7 dBi 3300-5000 MHz: 8 dBi 5150~5925 MHz: 8 dBi
    SIM
    (2) Nano SIM (1) Nano-SIM or eSIM
    Hardware
    NVR Storage
    Pre-installed 64 GB microSD for NVR
    Expansion Slot
    MicroSD Card
    PoE Budget
    15.4W
    Max. PoE Wattage per Port by PSE
    PoE
    15.4W
    Voltage Range PoE Mode
    44-57V
    Max. Power Consumption
    34.5W (Excluding PoE output)
    Power Method
    DC jack (54V DC/1.1A)
    Power Supply
    54V DC/1.1A (Adapter included)
    Supported Voltage Range
    100–240V AC
    Heat Dissipation
    115 BTU/hr (Excluding PoE output)
    Processor
    Quad-core ARM® Cortex®-A53 at 1.5 GHz
    System Memory
    3 GB
    Weight
    1.4 kg (3.1 lb)
    Enclosure Material
    Polycarbonate
    LCM Display
    4.7" touchscreen
    Management
    Ethernet Bluetooth
    LEDs
    Ethernet
    Yes
    SFP+
    Yes
    System
    Yes
    Button
    (1) Factory reset
    ESD/EMP Protection
    Air: ± 8kV, contact: ± 4kV
    Ambient Operating Temperature
    0 to 40° C (32 to 104° F)
    Ambient Operating Humidity
    5 to 95% noncondensing
    NDAA Compliant
    Yes
