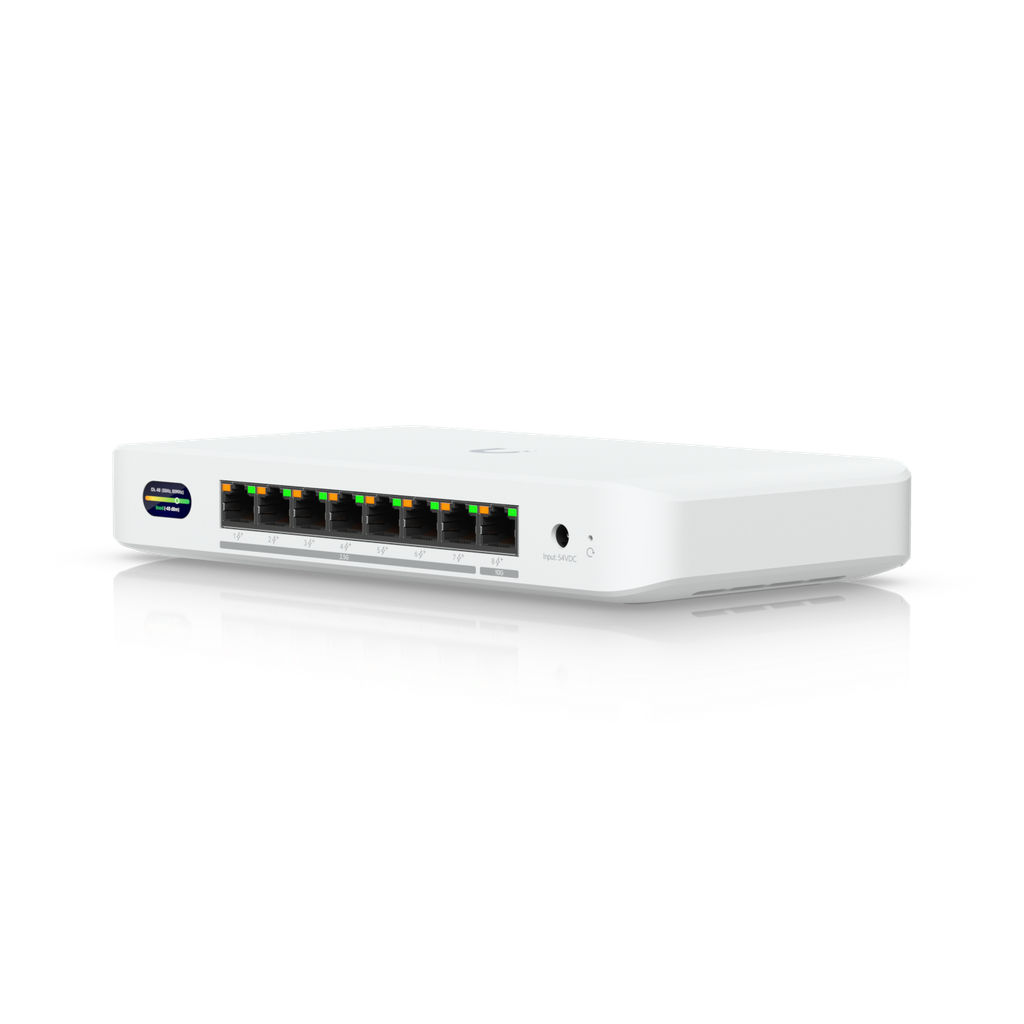

Ubiquiti UDB-Switch Unifi Device Bridge POE Switch (1) 10 GbE port, (7) 2.5 GbE and 6 GHz-Ready WiFi 7

https://streakwave.com.au/web/image/product.template/22853/image_1920?unique=37661e9

Product Code: UDB-Switch

$ 565.40 incl. GST 565.4 AUD $ 565.40

$ 499.00

    This combination does not exist.

    Add to Cart
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Terms and Conditions
    100% Original
    Fast Delivery

    Share this product:

    Ubiquiti UDB-Switch Unifi Device Bridge POE Switch (1) 10 GbE port, (7) 2.5 GbE and 6 GHz-Ready WiFi 7

    Ubiquiti Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.


    WiFi 7 Built in

    54V DC/1.1A (AU Adapter included)

    8 PoE+ Ports

    Desktop and Wall

    Technical Specifications
    Overview
    Dimensions
    212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3")
    WiFi Standard
    WiFi 7
    Spatial Streams
    4
    Mounting Locations
    Desktop, wall
    Power Method
    DC jack (54V DC/1.1A)
    Power Supply
    54V DC/1.1A (Adapter included)
    Performance
    MIMO
    6 GHz
    2 x 2
    5 GHz
    2 x 2
    Max. Data Rate
    6 GHz
    5.8 Gbps (BW320)
    5 GHz
    4.3 Gbps (BW240)
    Antenna Gain
    6 GHz
    8 dBi
    5 GHz
    8 dBi
    Max. TX Power
    6 GHz
    23 dBm
    5 GHz
    26 dBm
    Max. Conducted TX Power
    26 dBm (Combined)
    Supported Data Rates
    802.11be (WiFi 7)
    6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
    802.11ax (WiFi 6)
    7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    802.11ac (WiFi 5)
    6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    802.11n
    6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11a
    6, 9, 12, 18, 24, 36, 48, 54 Mbps
    Wireless Security
    WPA3 SAE (Always On)
    Hardware
    Max. Power Consumption
    25W (Excluding PoE output)
    Supported Voltage Range
    42.5—57V DC
    Networking Interface
    (1) 10 GbE RJ45 port (7) 2.5 GbE RJ45 ports
    PoE Interface
    (8) PoE+ ports
    Max. PoE Wattage per Port
    30W
    Total PoE Availability
    60W AC adapter input: 35W 210W AC adapter input: 185W
    Antennas
    (1) Internal
    Management
    Ethernet WiFi
    Channel Bandwidth
    20/40/80/160/240/320 MHz
    Weight
    Device: 548 g (1.21 lb) With mount: 563 g (1.24 lb)
    Enclosure Material
    Polycarbonate
    Mount Material
    Polycarbonate
    LCM Display
    0.96" status display
    Button
    (1) Factory-reset
    NDAA Compliant
    Yes
    Certifications
    CE, FCC, IC
    Operating Frequency
    Worldwide: 5150—5875 MHz 5945—7125 MHz
    Ambient Operating Temperature
    -30 to 40° C (-22 to 104° F)
    Ambient Operating Humidity
    5 to 95% noncondensing
