Ubiquiti USL-Entry-R-US UniFi Protect Recessed Entry Sensor
Ubiquiti USL-Entry-R UniFi Protect recessed door entry sensor with SuperLink connectivity, reed-switch detection and up to 3 years of CR2 battery life.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

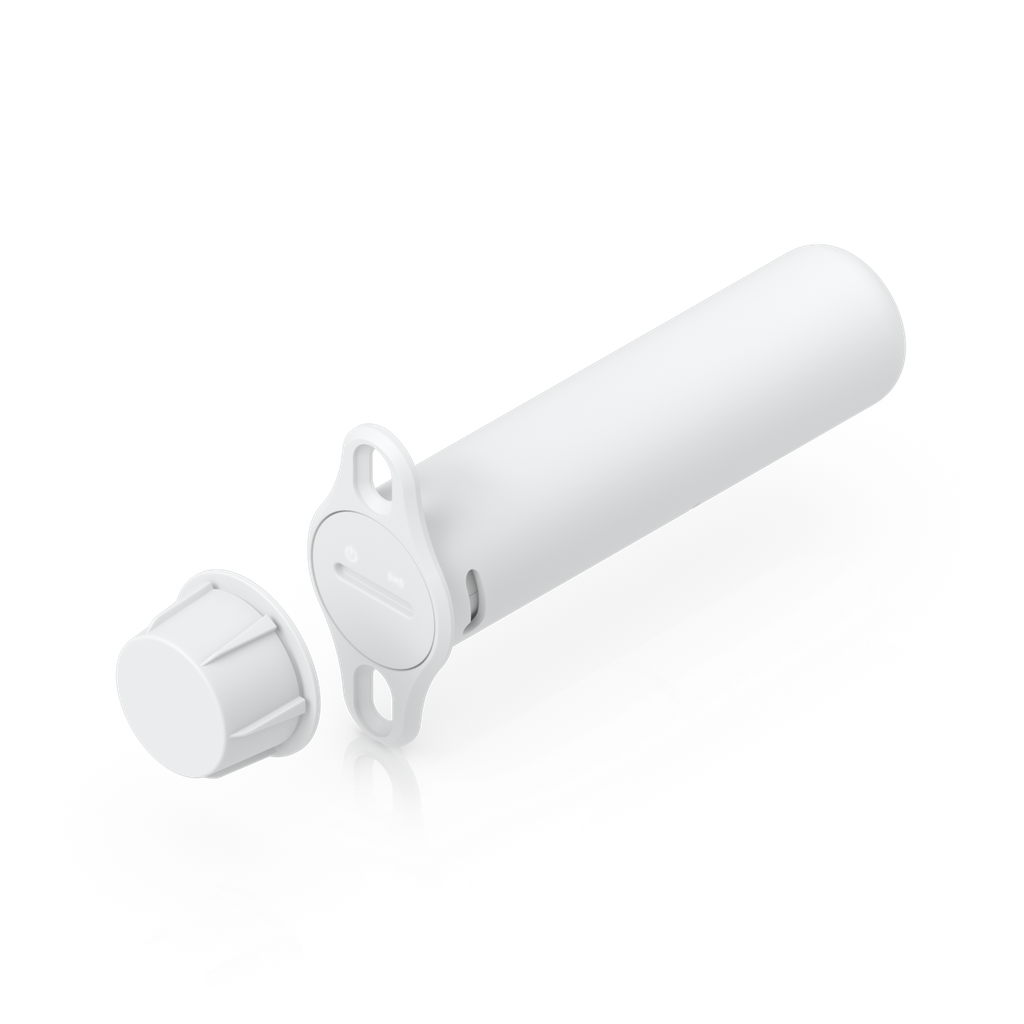

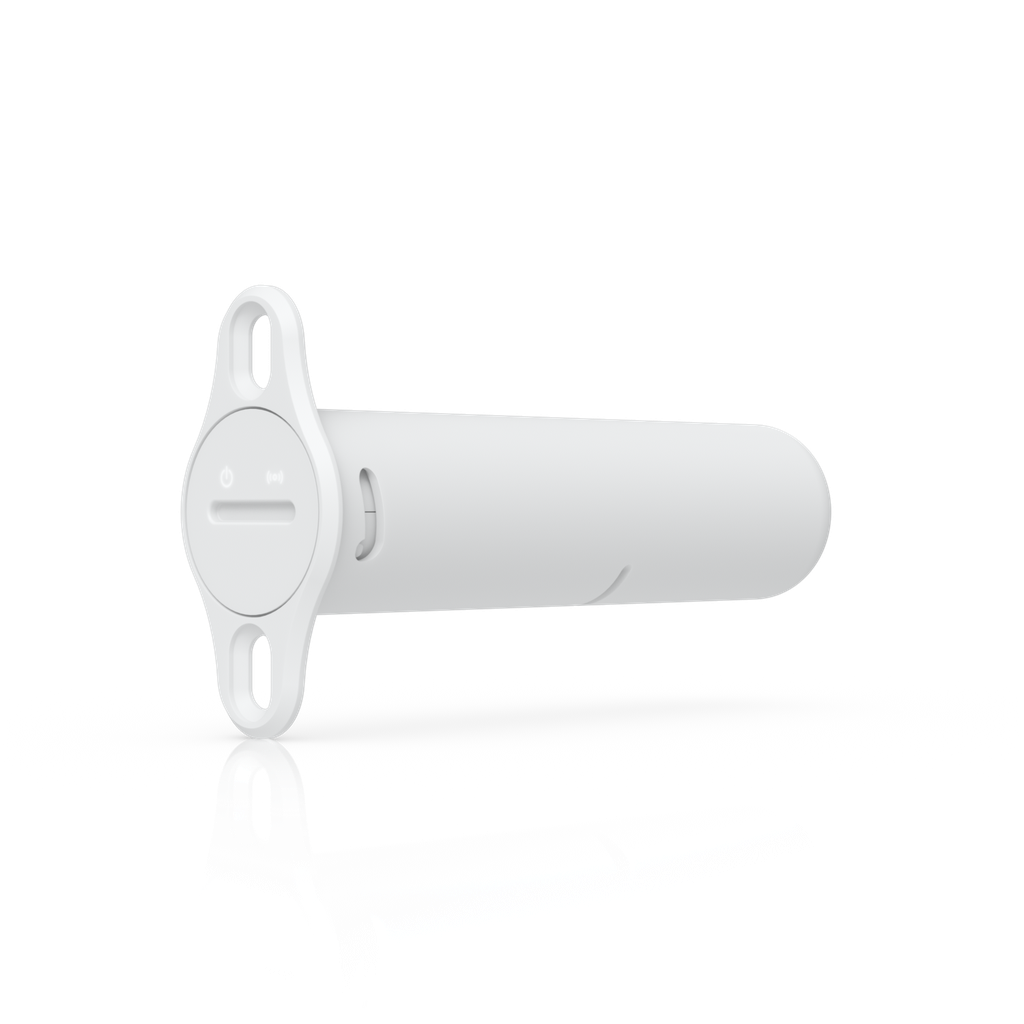

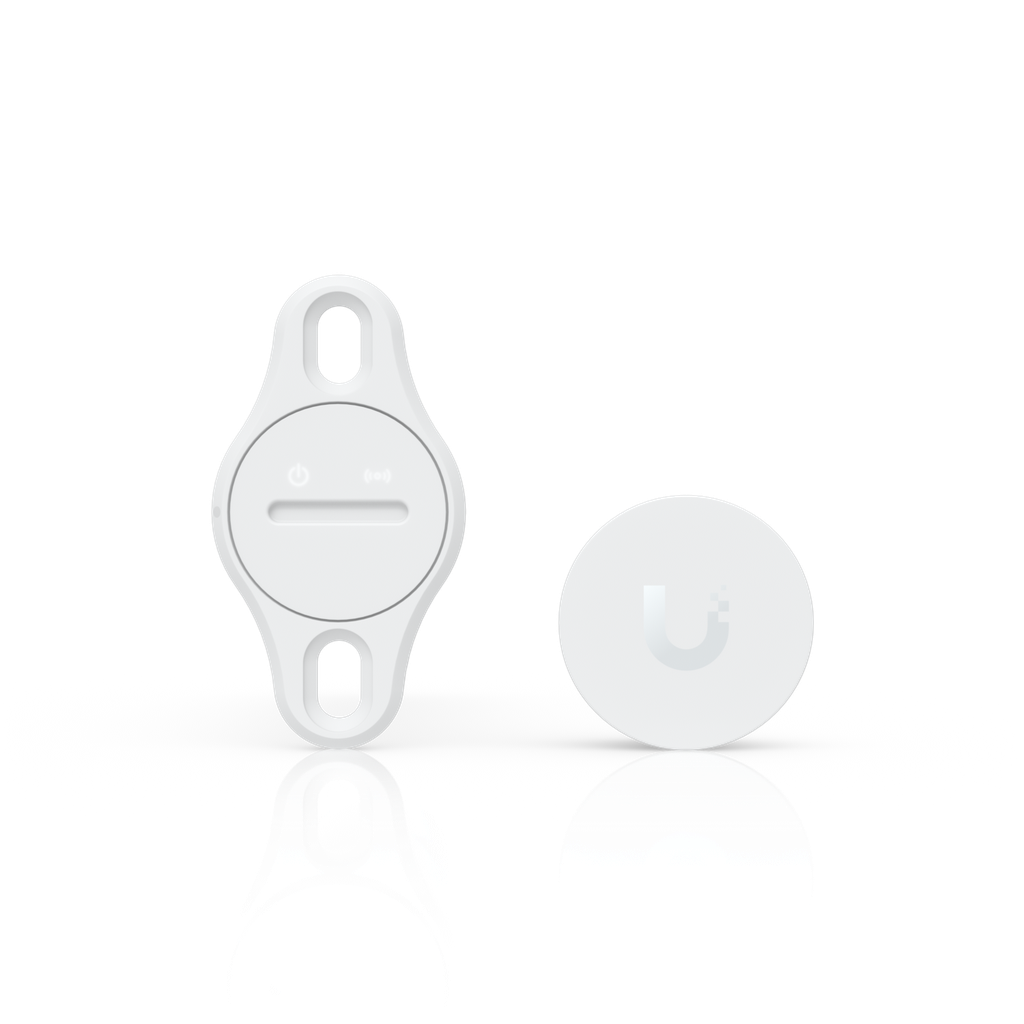

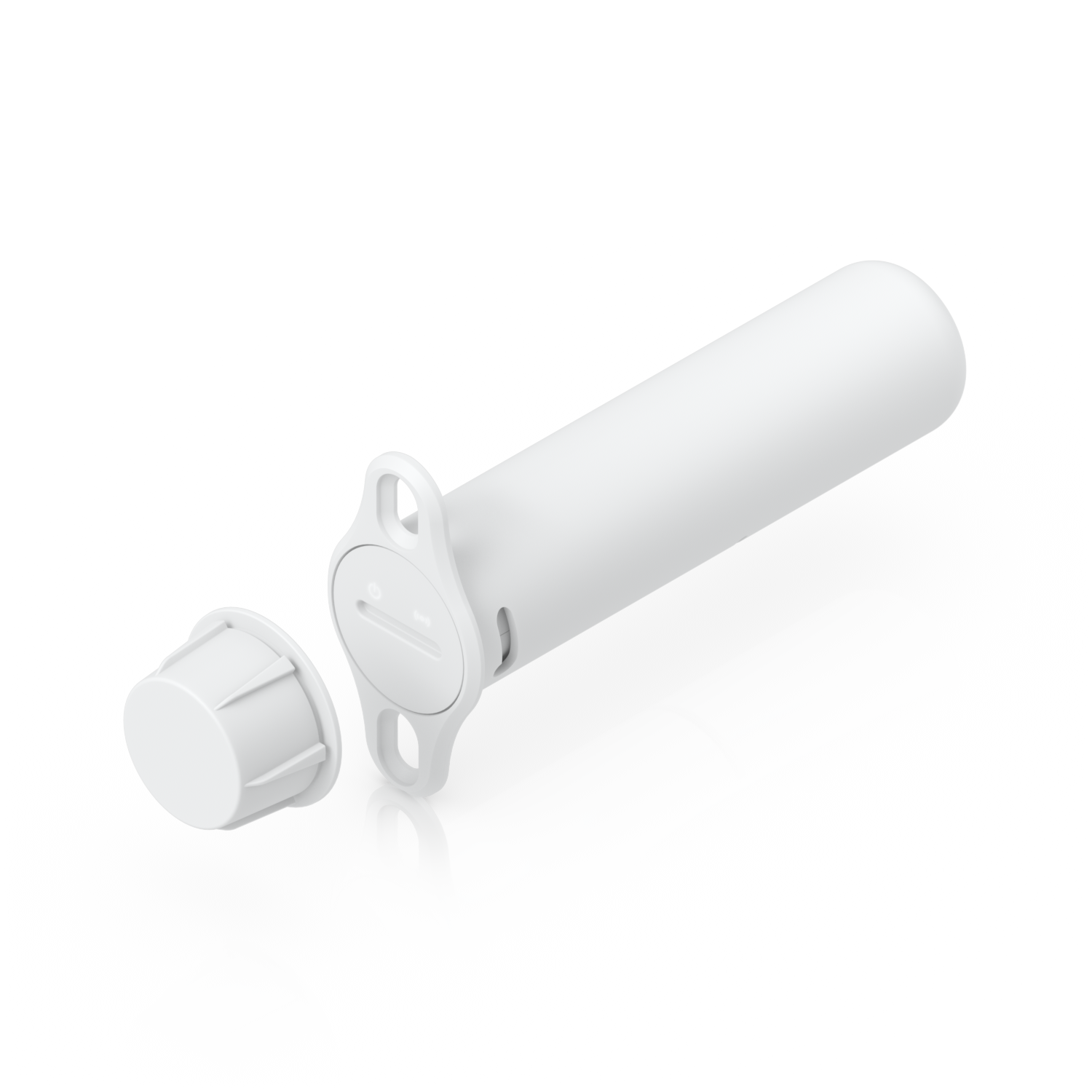

Ubiquiti USL-Entry-R UniFi Protect Recessed Entry Sensor
The USL-Entry-R is a discreet recessed door entry sensor for UniFi Protect that monitors open and closed status using a reed switch, long-range SuperLink connectivity and a replaceable CR2 lithium battery.
Key features
- Recessed installation for discreet door open and closed monitoring.
- Reed-switch sensing integrated with the UniFi Protect application suite.
- Proprietary SuperLink connectivity with up to 2 km maximum range.

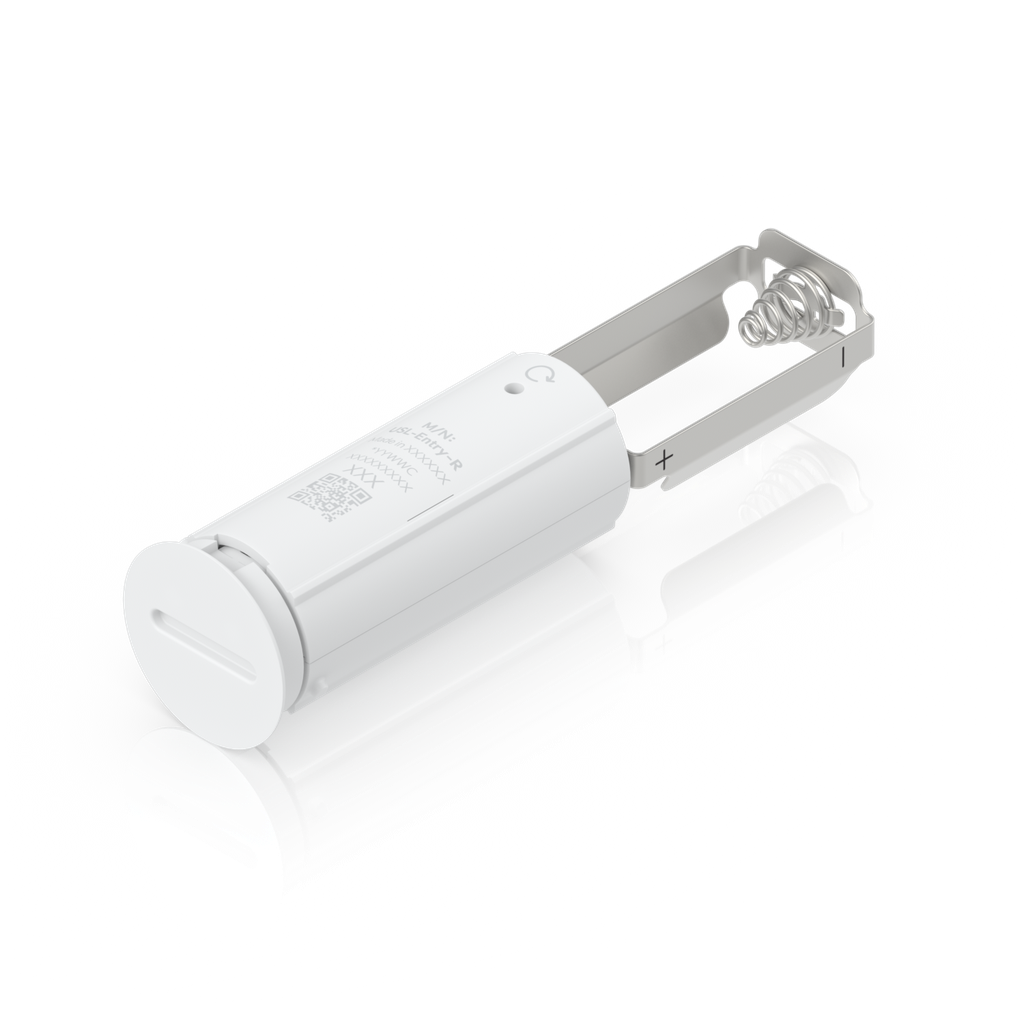

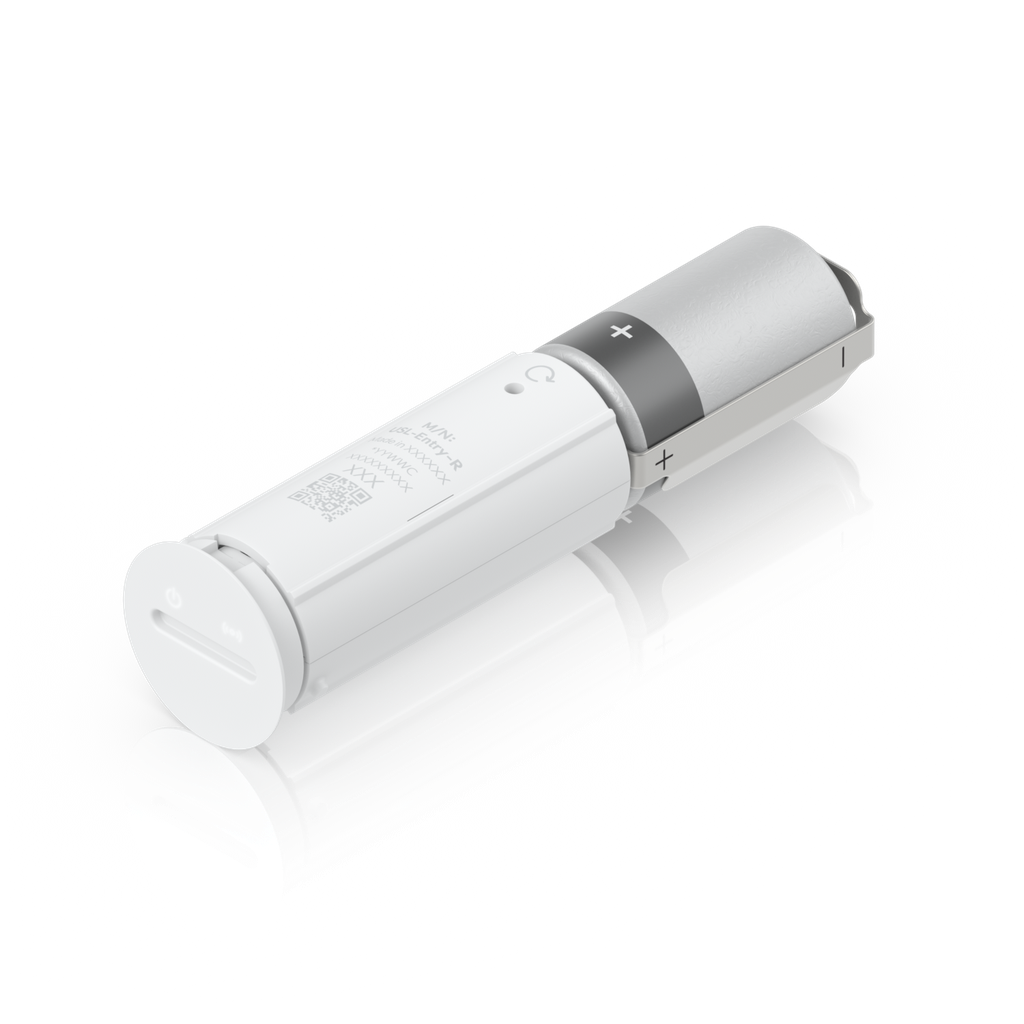

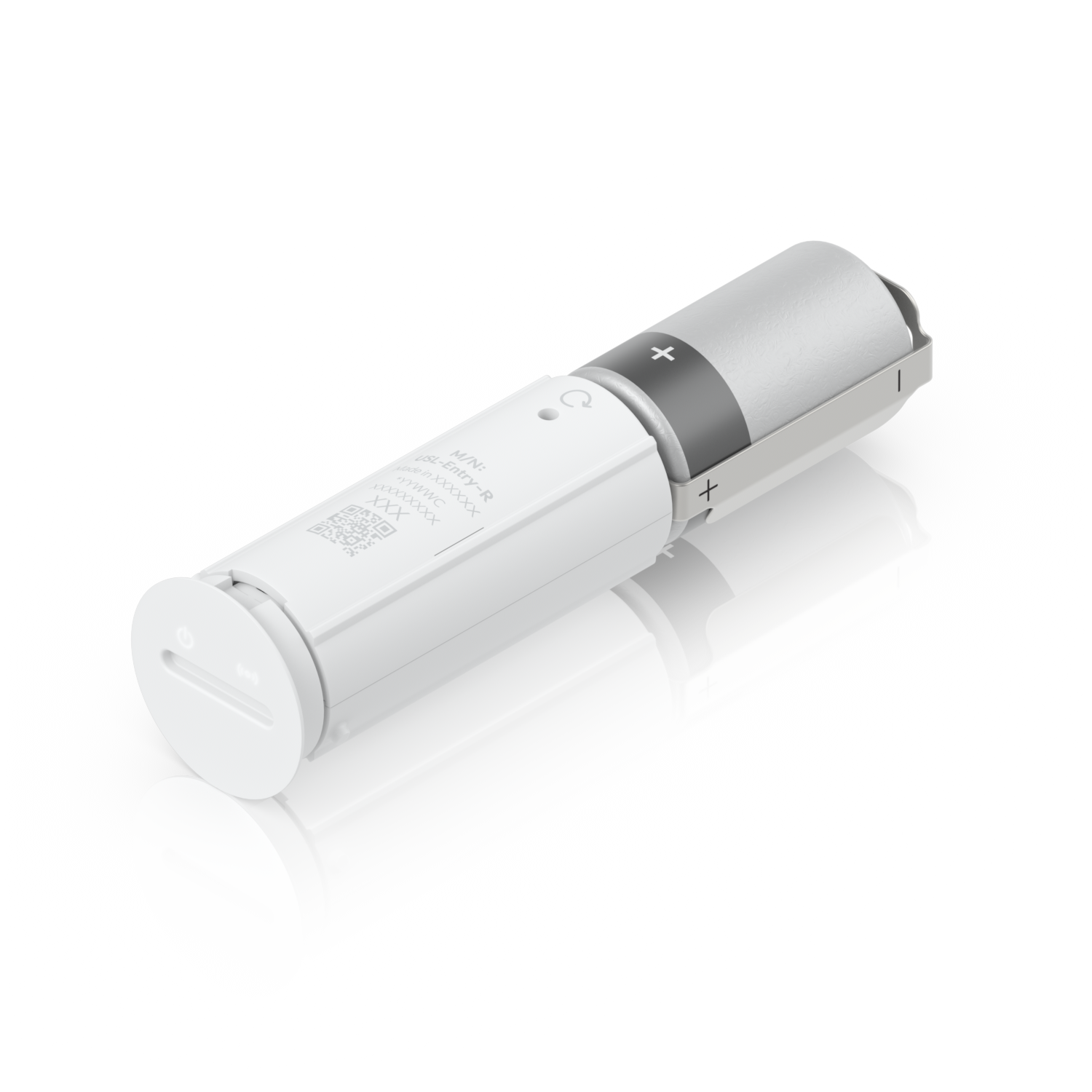

- Replaceable 3 V CR2 lithium battery with up to 3 years of battery life.
- Factory-reset button, function button and tamper switch.
Ideal applications
- Discreet entry monitoring for doors in UniFi Protect deployments.
- Offices, storerooms and controlled internal areas.
- Long-range sensing where cabling or WiFi coverage is impractical.
Technical specifications
- Product code: USL-Entry-R.
- Device dimensions: 44 × 22 × 74.5 mm.
- Magnet dimensions: ⌀22 × 12.1 mm.
- Weight: Device 24 g; 34 g with battery.
- Enclosure and mount material: Polycarbonate.
- Mounting: Screw mount.
- Sensor: Reed switch.
- Connectivity: Proprietary SuperLink.
- Operating frequency: US 915.6–927.6 MHz; EU 865.1–869.5 MHz.
- Antenna gain: −4 dBi.
- Maximum transmit power: 14 dBm.
- Maximum SuperLink range: 2 km.
- Power: 3 V CR2 lithium battery; 15 mW maximum consumption.
- Battery life: Up to 3 years.
- Operating environment: 0 to 40°C; 10 to 90% noncondensing humidity.
- Certifications: CE, FCC and IC; NDAA compliant.
Why choose USL-Entry-R?
USL-Entry-R provides discreet, battery-powered entry monitoring for UniFi Protect while retaining the long-range coverage and low-power operation of the SuperLink platform.
