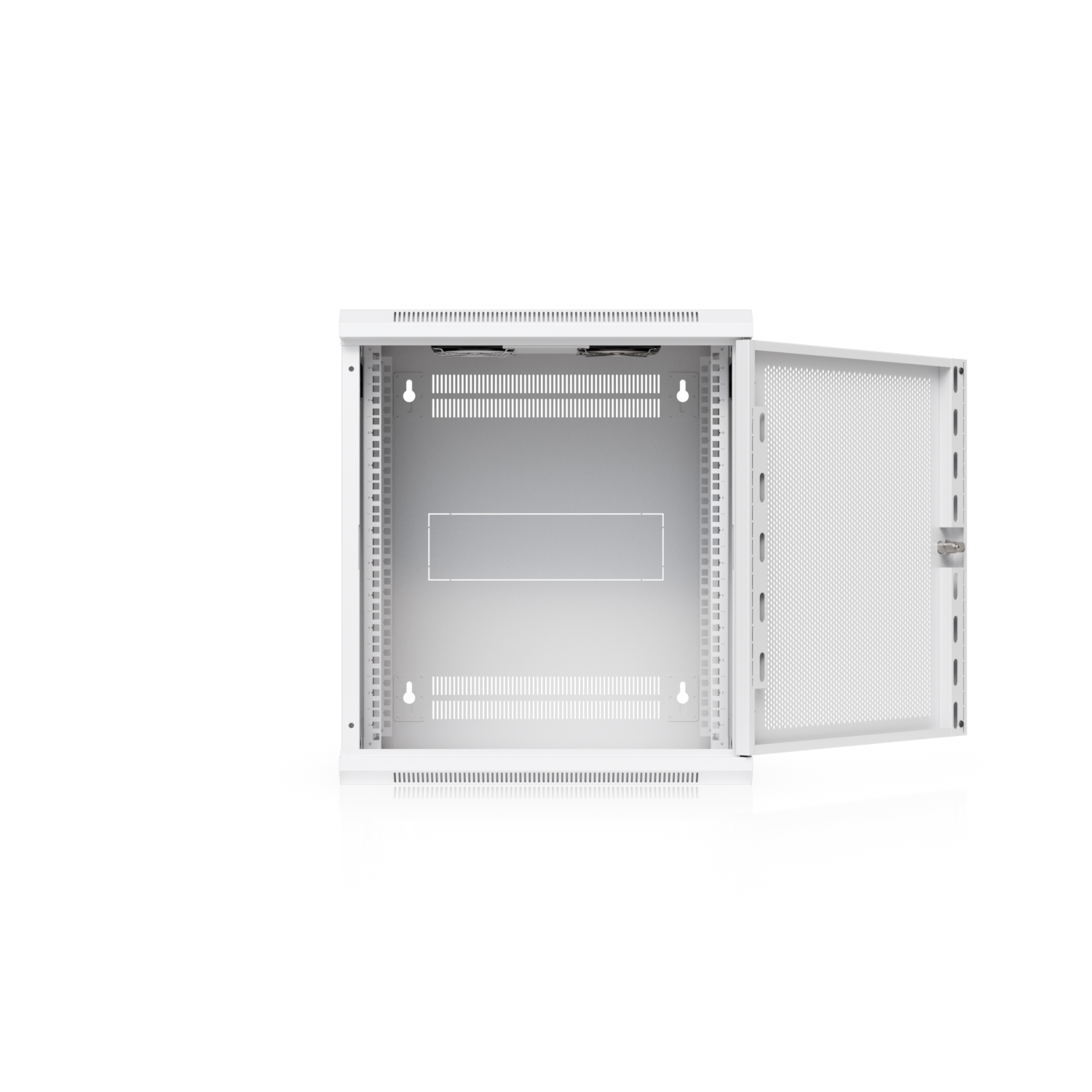

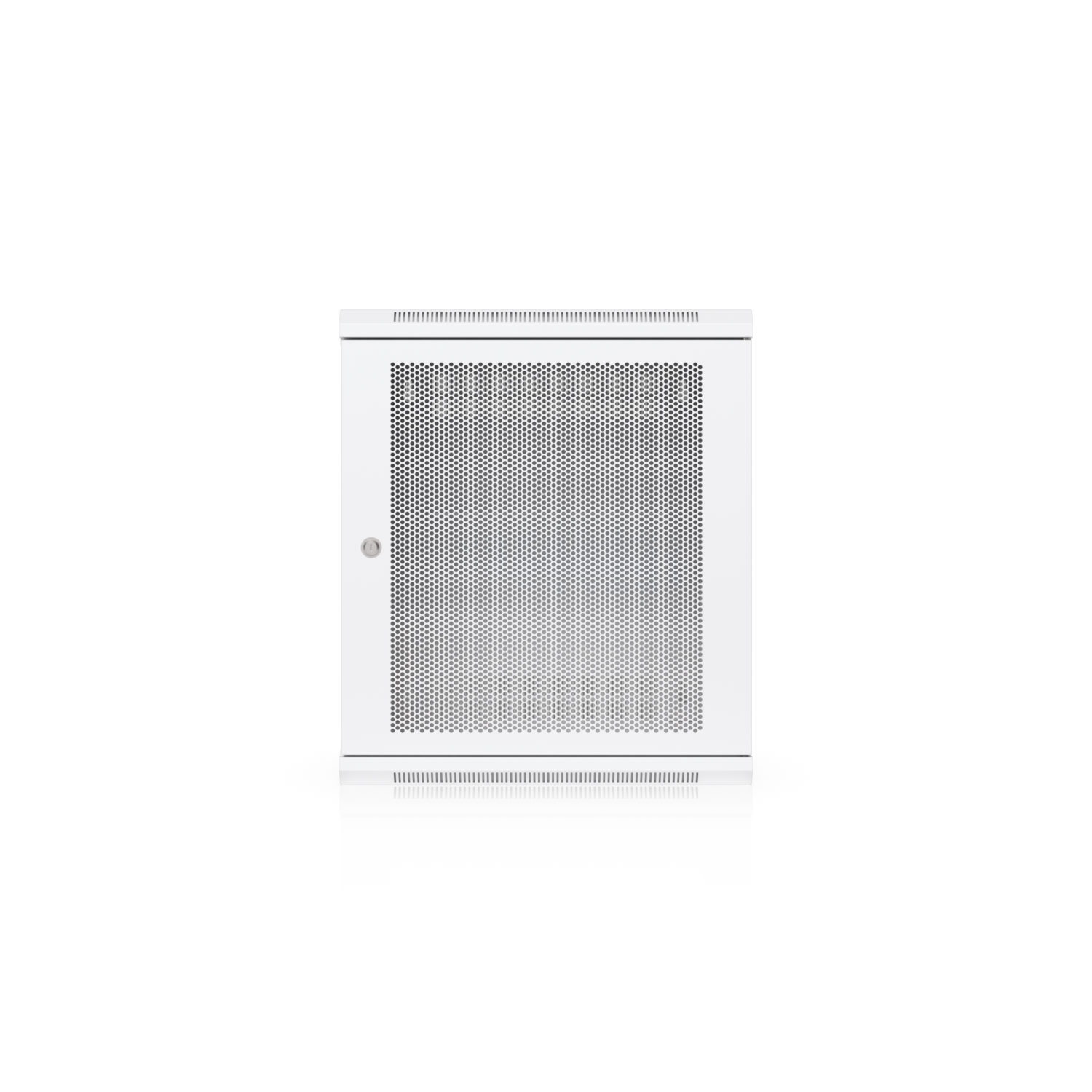

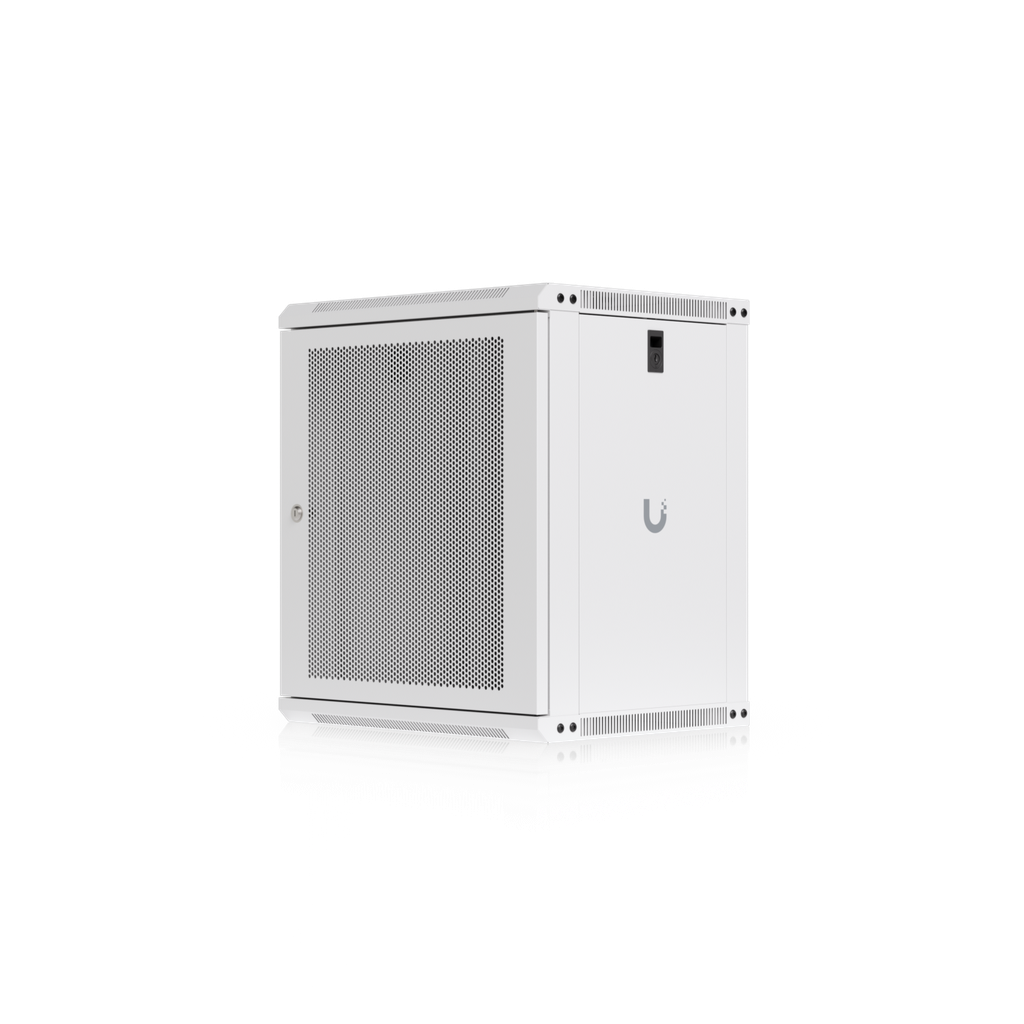

Ubiquiti UACC-Rack-12U-Wall-450-P 12U Rack Cabinet Perforated Door

https://citytechnology.com.au/web/image/product.template/22864/image_1920?unique=10e13df

Product Code: UACC-Rack-12U-Wall-450-P

$ 565.40 incl. GST 565.4 AUD $ 565.40

$ 499.00

    This combination does not exist.

    Add to Cart
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Terms and Conditions
    100% Original
    Fast Delivery

    Share this product:

    Ubiquiti UACC-Rack-12U-Wall-450-P 12U Rack Cabinet Perforated Door

    Fully assembled wall-mount rack with built-in fans and removable panels, engineered for easy equipment access and space-efficient small-scale deployments.

    Features:

    12U-sized device rack

    Space-efficient small-scale deployments

    Fully assembled

    Lockable

    Technical Specifications
    Overview
    Dimensions
    Packaging: 580 x 675 x 735 mm (22.8 x 26.6 x 28.9") Rack: 550 x 450 x 635 mm (21.7 x 17.7 x 25")
    Weight
    Packaging: 22 kg (48.5 lb) Rack: 17.8 kg (39.2 lb)
    Enclosure Material
    SPCC steel Door/side panels: 0.8 mm (0.03") Main body: 0.8 mm (0.03") Posts: 2 mm (0.08")
    Color
    White
    Treatment
    Powder coating
    Rack Features
    U Height
    12U
    Rack Type
    4 post, enclosed cabinet
    Mounting Hole Type
    Square
    Adjustable Mounting Depth
    Default 283 mm (11.1") Max. 305 mm (12") Adjustable pitch 22 mm (0.09")
    Max. Weight Capacity
    50 kg (110 lb)
    Front Door
    Perforated Default left-hand outswing, reversible
    Side Panels
    (2) Solid, removable and lockable
    Mounting
    Wall mount
    Fan Module
    Yes
    Acoustic Noise
    ≤ 50 dB(A) sound pressure level
    Grounding Lugs
    Yes
    Cable Entry Opening
    (1) Rear wall: 350 x 100 mm (13.8 x 3.9") (1) Top: 336.5 x 52.5 mm (13.2 x 2.1") (1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1")
    Security
    (1) Front door lock (4) Side panel locks (2) Keys
    Standard
    CE; EIA/ECA-310-E; RoHS
    Supported Devices
    Compatible with Ubiquiti rack-mount devices up to 325 mm in depth. Note: 325 mm devices can be installed when the mounting depth is set to 305 mm (max), but DC power backup is not supported due to limited rear-side clearance.
    NDAA Compliant
    Yes
