Ubiquiti UACC-PoE+-USBC PoE Integrated AC Adapter

https://citytechnology.com.au/web/image/product.template/22861/image_1920?unique=fe9433c

Product Code: UACC-PoE+-USBC

$ 100.87 incl. GST 100.87 AUD $ 100.87

$ 89.00

    This combination does not exist.

    Add to Cart
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Terms and Conditions
    100% Original
    Fast Delivery

    Share this product:

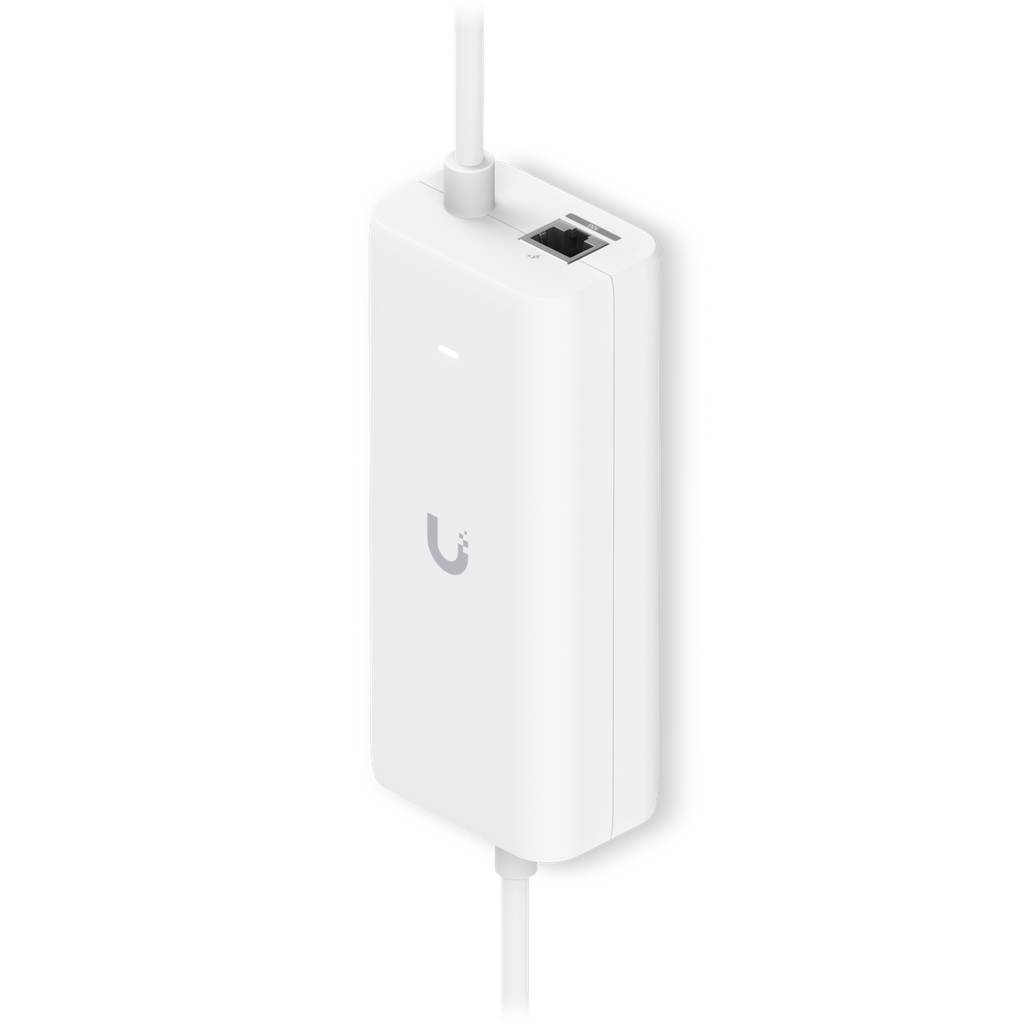

    Ubiquiti UACC-PoE+-USBC PoE Integrated AC Adapter


    Ubiquiti An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.

    Delivers up to 30W of PoE+

    Supports wall mount, DIN rail and floating mount*

    Lockable latch designed for power cord security


    Compatibility:

    • UXG-Lite

    • UX

    • UXG-Max

    • UCG-Max

    • UCG-Ultra

    • UX7

    Technical Specifications
    Overview
    Dimensions
    146 x 62 x 42 mm (5.7 x 2.4 x 1.7")
    Weight
    358 g (12.6 oz)
    Length
    Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft)
    Output Voltage
    Type-C: 5V@ 5A PoE+: 48V@ 0.65A
    Rated Voltage
    100—240V AC @ 50/60Hz
    LAN Activity Indicator
    No
    Gigabit LAN Port
    Yes
    Remote Reset Capability
    No
    Reset Button
    No
    4-pair Powering
    Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
    Clamping Protection
    11V data, 60V power
    Data In / PoE
    RJ45 shielded socket
    Input Current
    1.5A max.
    Inrush Current
    120A
    Efficiency
    82%
    Switching Frequency
    65 kHz
    Output Ripple
    1% max.
    Line Regulation
    ≤ 5%
    Load Regulation
    ≤ 5%
    Max. Surge Discharge
    1500A (8/20 μs) power
    Peak Pulse Current
    36A (10/1000 μs) data
    Response Time
    <1 ns
    Shunt Capacitance
    <5 pF data
    Surge Protection
    Difference and common mode
    Ambient Storage Temperature
    -30 to 70°C (-22 to 158° F)
    Ambient Operating Temperature
    0 to 40° C (32 to 104° F)
    Ambient Operating Humidity
    10 to 95% noncondensing
    NDAA Compliant
    Yes
    Certifications
    CE, FCC, IC, UL, UKCA, CCC, RoHS
