Ubiquiti UACC-PoE+++-10G 10G PoE++ Adapter (90W)
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

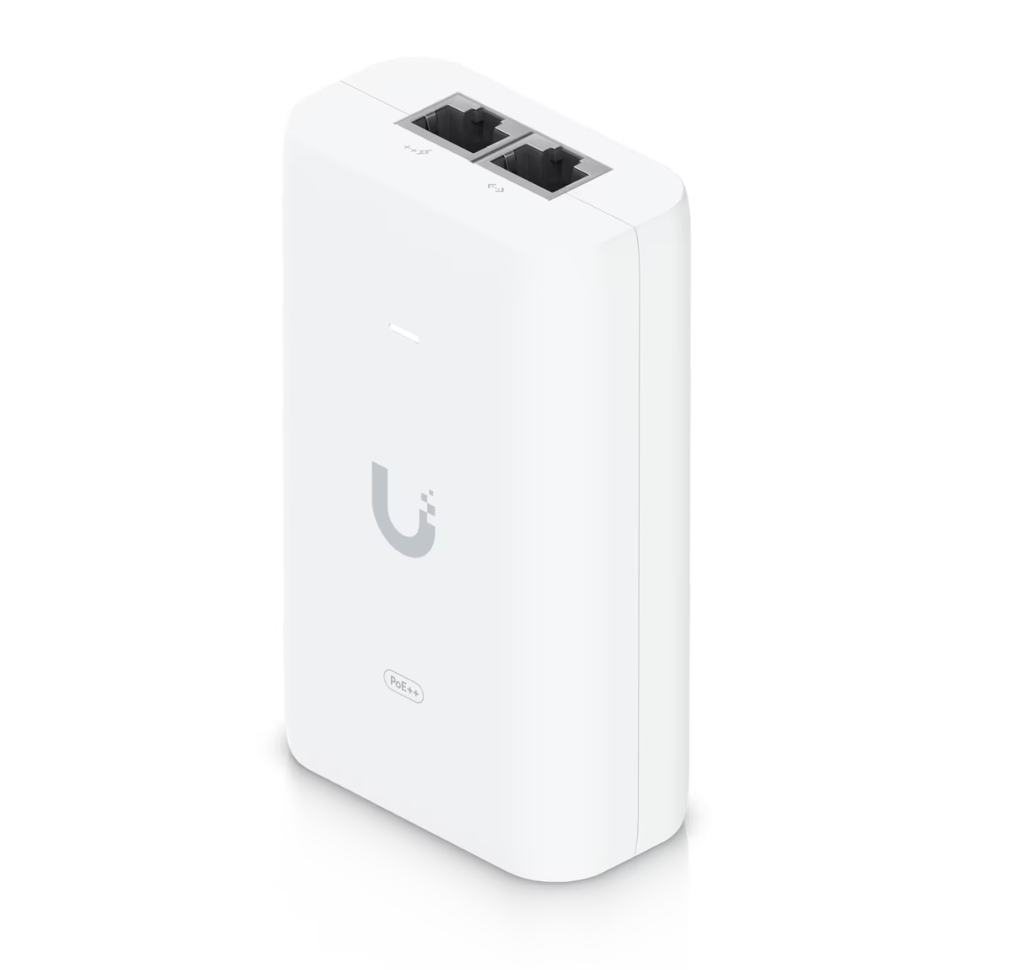

Ubiquiti UACC-PoE+++-10G 10G PoE+++ Adapter (90W)
Ubiquiti POE adapter that can power UniFi PoE+++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 90W of PoE+++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE+++ output
LED indicator for status monitoring
Supports wall mount, DIN rail and floating mount*
Overview Dimensions 164.5 x 71 x 42 mm (6.5 x 2.8 x 1.7") Weight 372 g (13.1 oz) Output Voltage 54V DC @ 1.67A Rated Voltage 100—240V AC at 50/60Hz LAN Activity Indicator No Gigabit LAN Port Yes Remote Reset Capability No Reset Button No 4-pair Powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) Clamping Protection 11V data, 60V power Data In / PoE RJ45 shielded socket Input Current 1.5A Max. Inrush Current <120A peak @ 230V AC Efficiency >88% Switching Frequency 65 kHz Output Ripple 1% Max. Line Regulation ≤ 2% Load Regulation ≤ 5% Max. PoE+ Wattage per Port by PSE 90W Max. Surge Discharge 1500A (8/20 μs) power Peak Pulse Current 36A (10/1000 μs) data Response Time <1 ns Shunt Capacitance <5 pF data Surge Protection Difference and common mode Ambient Storage Temperature -30 to 70°C (-22 to 158° F) Ambient Operating Temperature 0 to 40° C (32 to 104° F) Ambient Operating Humidity 10 to 95% noncondensing NDAA Compliant Yes Certifications CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
