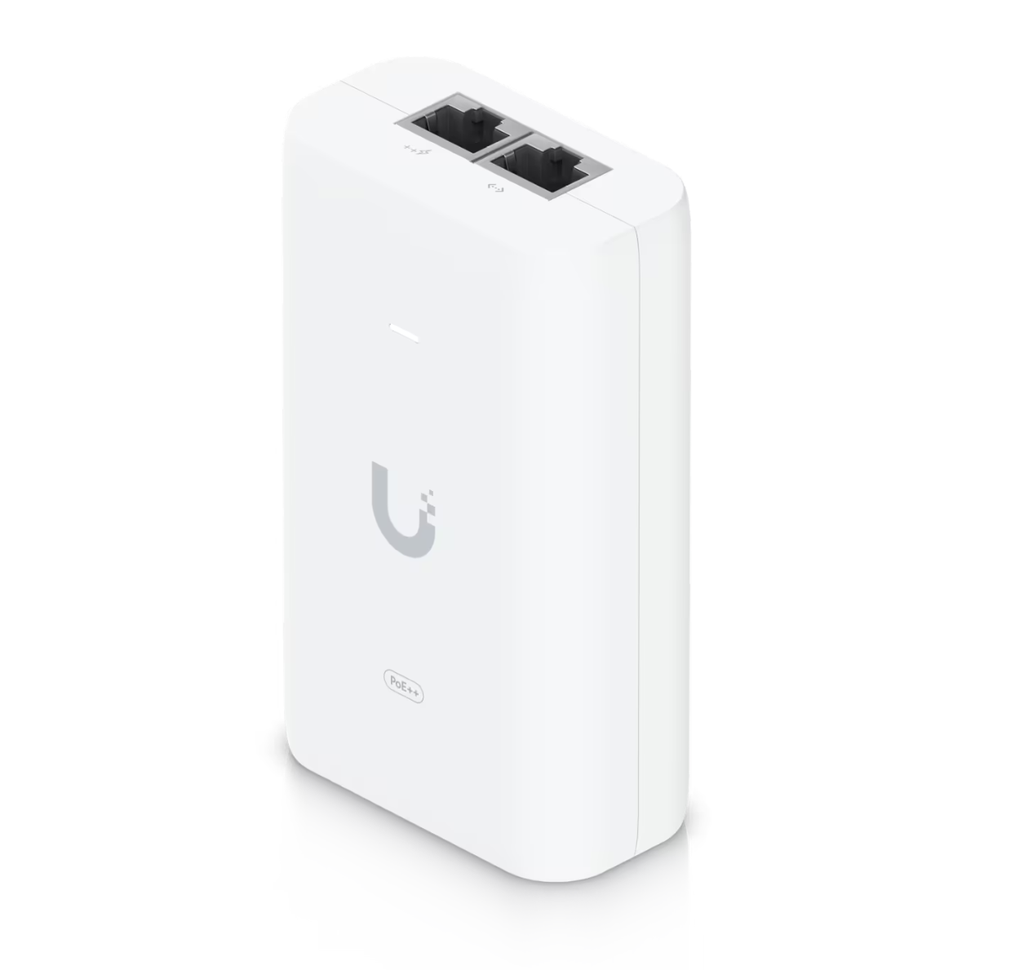

Ubiquiti UACC-PoE++-10G 10G PoE++ Adapter (60W)
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti UACC-PoE++-10G 10G PoE++ Adapter (60W)
Ubiquiti POE adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Output voltage | 54V DC @ 1.12A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes, up to 10 GbE |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 1.5A max. |
| Inrush current | <150A peak @ 230V AC |
| Efficiency | >88% |
| Output ripple | 1% max. |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 2% |
| Load regulation | ≤ 5% |
| 2-pair powering | No |
| 4-pair powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Max. PoE+ wattage per port by PSE | 60W |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
