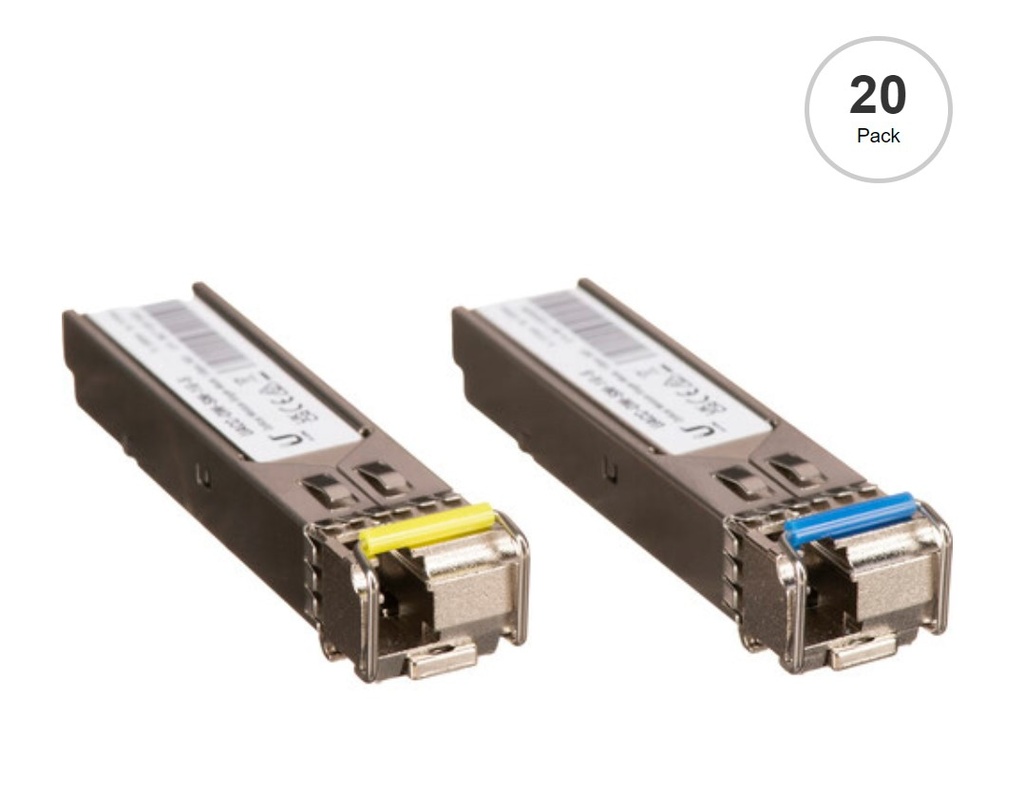

Ubiquiti UACC-OM-SM-1G-S-20 U Fiber, Single-Mode Module, 1G, BiDi, 10 Pair (20 Units)
UACC-OM-SM-1G-S-20 20-Pack 1G bidirectional single-mode SFP optical module with Simplex LC UPC connector, Single-Mode Fiber, 1 Gbps data rate and 3 km (1.9 mi) supported cable distance.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti UACC-OM-SM-1G-S-20 1G Bidirectional Single-Mode Optical Module (20-Pack)
UACC-OM-SM-1G-S-20 is a 20-pack 1G bidirectional single-mode SFP optical module for UniFi and UISP fiber deployments. It provides reliable optical connectivity with official Ubiquiti specifications for connector type, fiber media, wavelength, distance, data rate and operating temperature.
Key Features
- SFP transceiver for 1 Gbps fiber links
- Simplex LC UPC connector for bidirectional single-mode fiber
- BiDi design using 1310 / 1550 nm paired wavelengths
- Supports single-mode fiber connections up to 3 km (1.9 mi)
- Low 0.66 W maximum power consumption
Technical Specifications
- Pack option: 20-Pack
- Form factor: SFP
- Connector: Simplex LC UPC
- Supported media: Single-Mode Fiber
- BiDi: Yes
- TX wavelength: 1310 / 1550 nm
- RX wavelength: 1550 / 1310 nm
- Supported data rate: 1 Gbps
- Supported cable distance: 3 km (1.9 mi)
- Max. power consumption: 0.66 W
- Ambient operating temperature: 0 to 70° C (32 to 158° F)
- Laser safety: Class 1 laser product, IEC/EN 60825-1:2014
