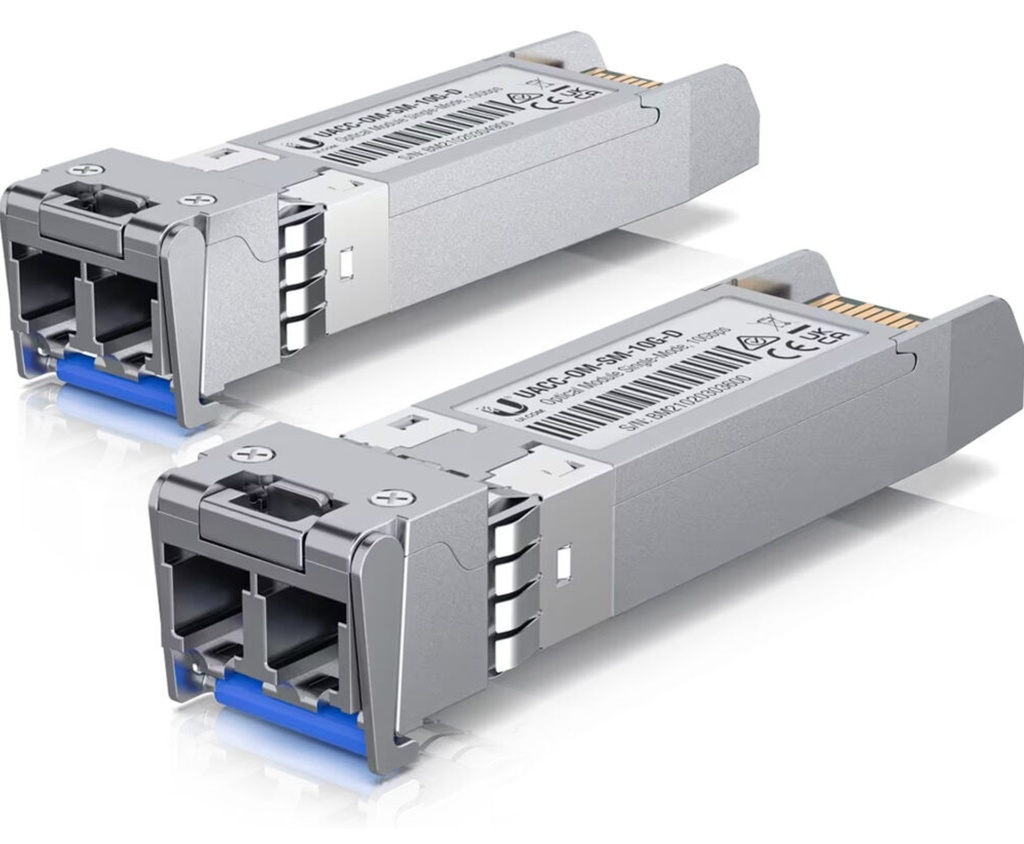

Ubiquiti UACC-OM-SM-10G-D-2 U Fiber, Single-Mode Module, 10G, 2-PACK
UACC-OM-SM-10G-D-2 2-Pack 10G single-mode SFP+ optical module with Duplex LC UPC connector, Single-Mode Fiber, 1 / 10 Gbps data rate and 10 km (6.2 mi) supported cable distance.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

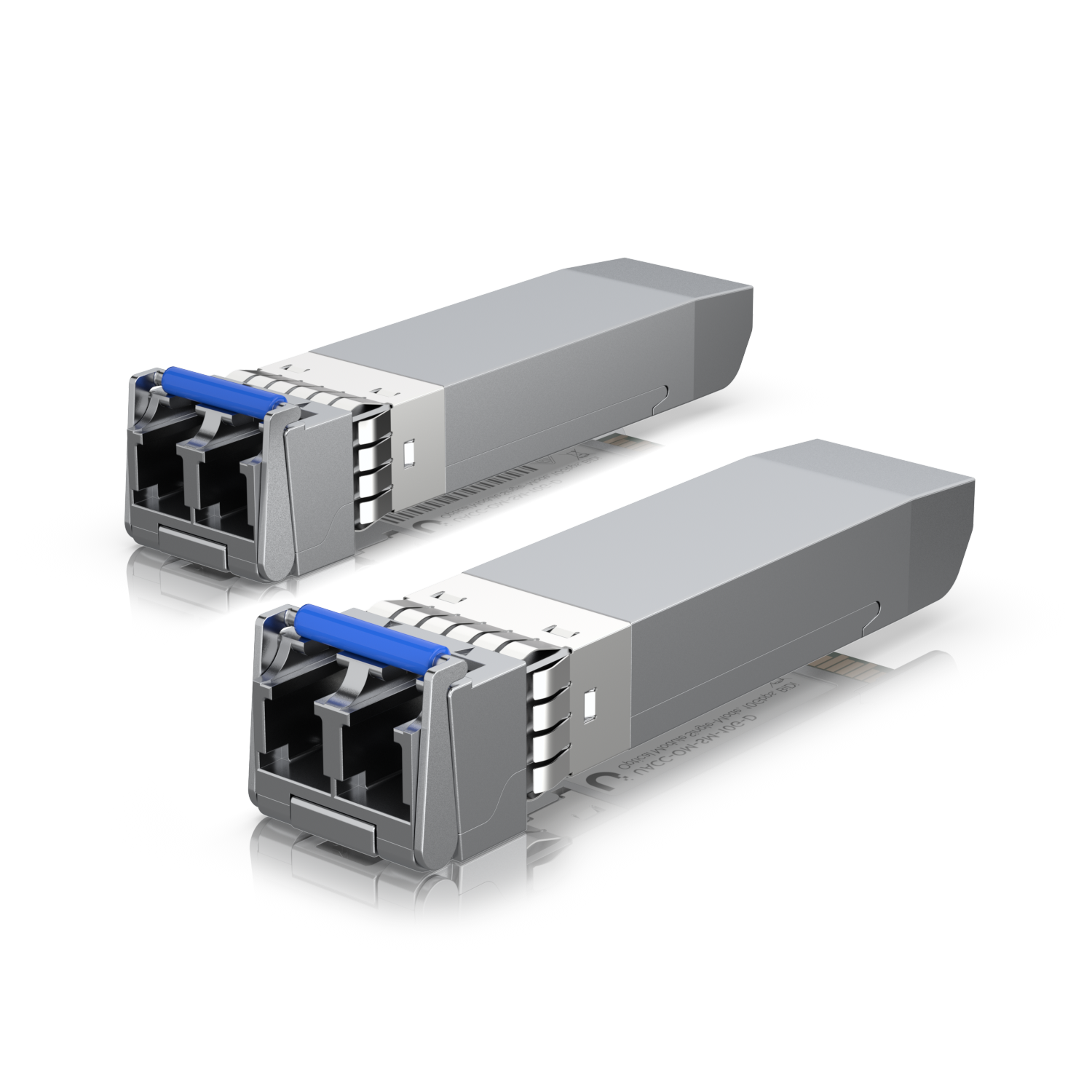

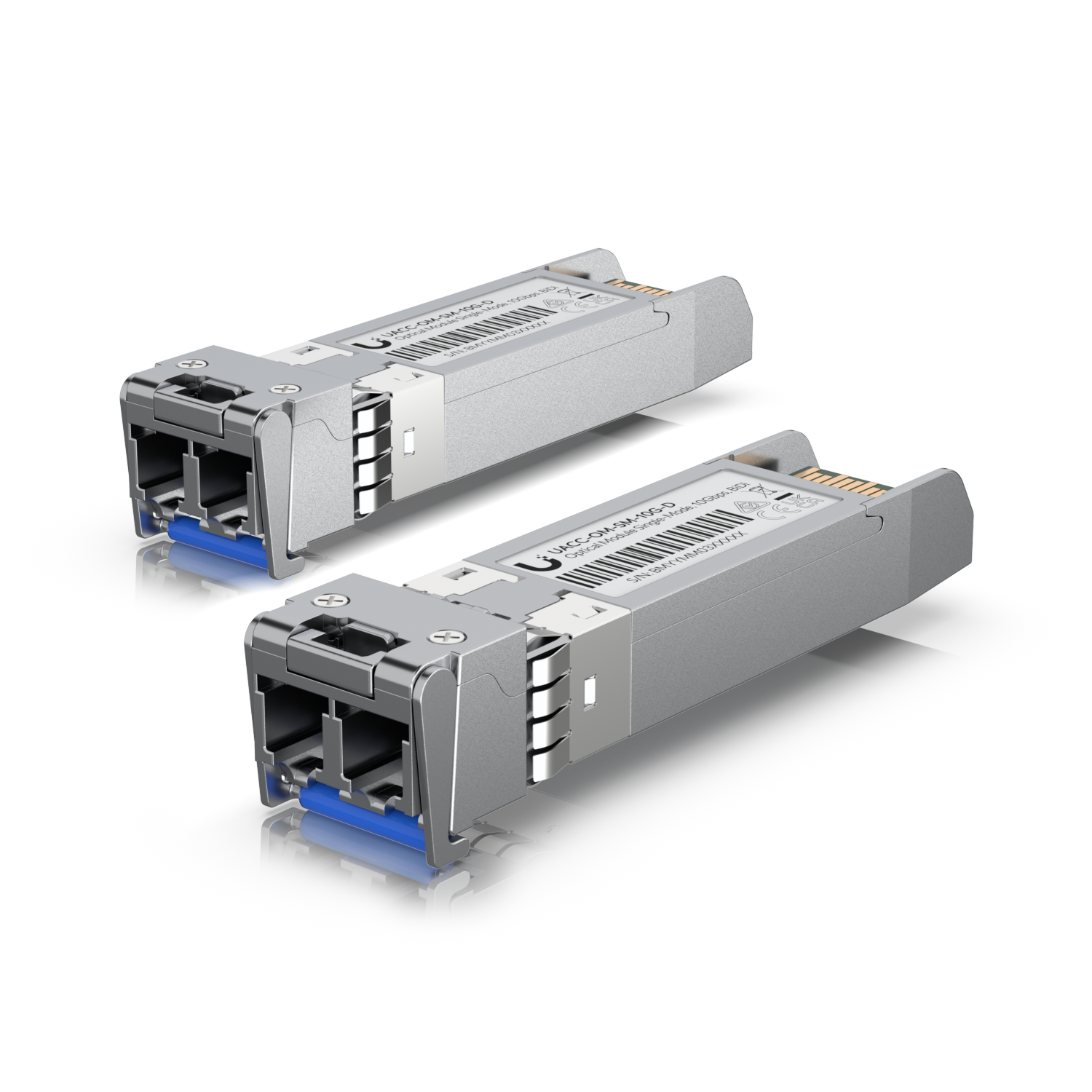

Ubiquiti UACC-OM-SM-10G-D-2 10G Single-Mode Optical Module (2-Pack)
UACC-OM-SM-10G-D-2 is a 2-pack 10G single-mode SFP+ optical module for UniFi and UISP fiber deployments. It provides reliable optical connectivity with official Ubiquiti specifications for connector type, fiber media, wavelength, distance, data rate and operating temperature.
Key Features
- SFP+ transceiver for 1 / 10 Gbps fiber links
- Duplex LC UPC connector for single-mode fiber
- 1310 nm transmit and receive wavelength
- Supports single-mode fiber connections up to 10 km (6.2 mi)
- Low 1 W maximum power consumption
Technical Specifications
- Pack option: 2-Pack
- Form factor: SFP+
- Connector: Duplex LC UPC
- Supported media: Single-Mode Fiber
- TX wavelength: 1310 nm
- RX wavelength: 1310 nm
- Supported data rate: 1 / 10 Gbps
- Supported cable distance: 10 km (6.2 mi)
- Max. power consumption: 1 W
- Ambient operating temperature: 0 to 70° C (32 to 158° F)
- Laser safety: Class 1 laser product, IEC/EN 60825-1:2014
