Ubiquiti UACC-ETH-SP-Panel-24 24 Port Rack-Mount Ethernet Surge Protection
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
100% Original
Fast Delivery
Share this product:

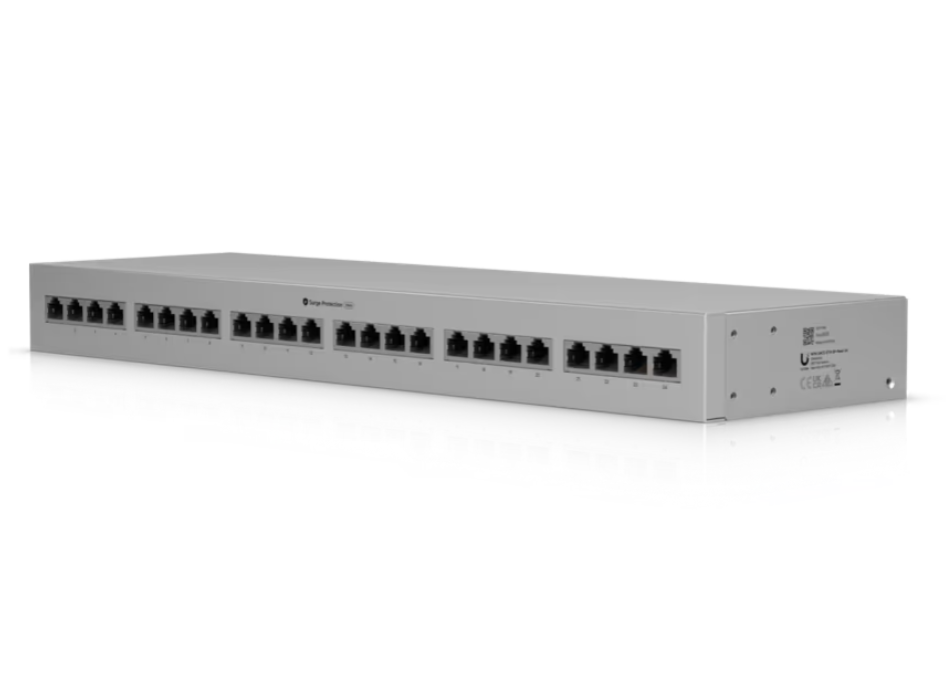

Ubiquiti UACC-ETH-SP-Panel-24 24 Port Rack-Mount Ethernet Surge Protection
Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.
24-port integrated
1U rack-mount design
Technical Specifications
Mechanical
Dimensions
442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7")
Weight
2 kg (4.4 lb)
Enclosure Material
SGCC steel
Hardware
Networking Interface
(48) RJ45 female connectors
ESD/EMP Protection
Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage
90V @ 100V/s
Max. Impulse Spark-Over Voltage
600V @ 1kV/µs
Discharge Current
20kA
Insulation
Max. Resistance: 1G ohm @ 50V
Max. Capacitance
1.0 pF @ 1 MHz
Data Line Protection
Up to 10 Gbps
PoE Support
Yes
Ambient Operating Temperature
-40° to +80° C (-40° to 176° F)
Ambient Operating Humidity
10 to 90% noncondensin
