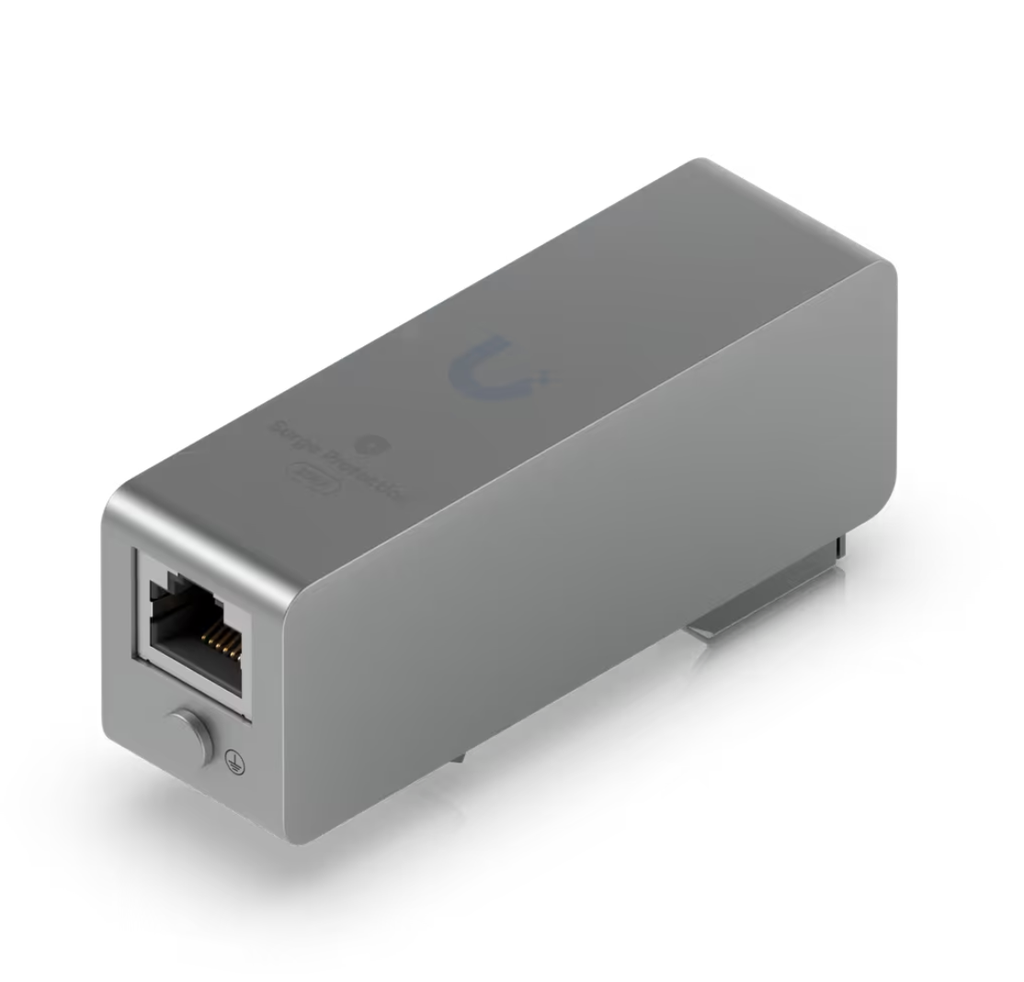

    Ubiquiti UACC-ETH-SP-DIN DIN Mount Ethernet Surge Protection 10GbE POE++

    Ethernet Surge Protection

    UACC-ETH-SP-DIN

    Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.

    Wall/DIN rail mount

    Multiple grounding points


    Technical Specifications
    Mechanical
    Dimensions
    89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5")
    Weight
    74 g (2.6 oz)
    Enclosure Material
    Polycarbonate, SGCC steel
    Hardware
    Networking Interface
    (2) RJ45 female connectors
    ESD/EMP Protection
    Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
    DC Spark-Over Voltage
    90V @ 100V/s
    Max. Impulse Spark-Over Voltage
    600V @ 1kV/µs
    Discharge Current
    20kA
    Insulation
    Max. Resistance: 1G ohm @ 50V
    Max. Capacitance
    1.0 pF @ 1 MHz
    Data Line Protection
    Up to 10 Gbps
    PoE Support
    Yes
    Ambient Operating Temperature
    -40° to +80° C (-40° to 176° F)
    Ambient Operating Humidity
    10 to 90% noncondensing
