Ubiquiti UACC-DAC-QSFP28-1M 100G Direct Attach Cable 1 m
Ubiquiti UACC-DAC-QSFP28-1M 1 m QSFP28-to-QSFP28 copper direct attach cable for 100/40 Gbps high-speed UniFi switch connections.
100% Original
Fast Delivery
Share this product:
Ubiquiti UACC-DAC-QSFP28-1M 1 m 100G Direct Attach Cable
The UACC-DAC-QSFP28-1M is a single-unit 1 m QSFP28 direct attach copper cable for short, high-bandwidth links between compatible switches. It supports 100 Gbps and 40 Gbps data rates in a straightforward passive copper connection.
Key features

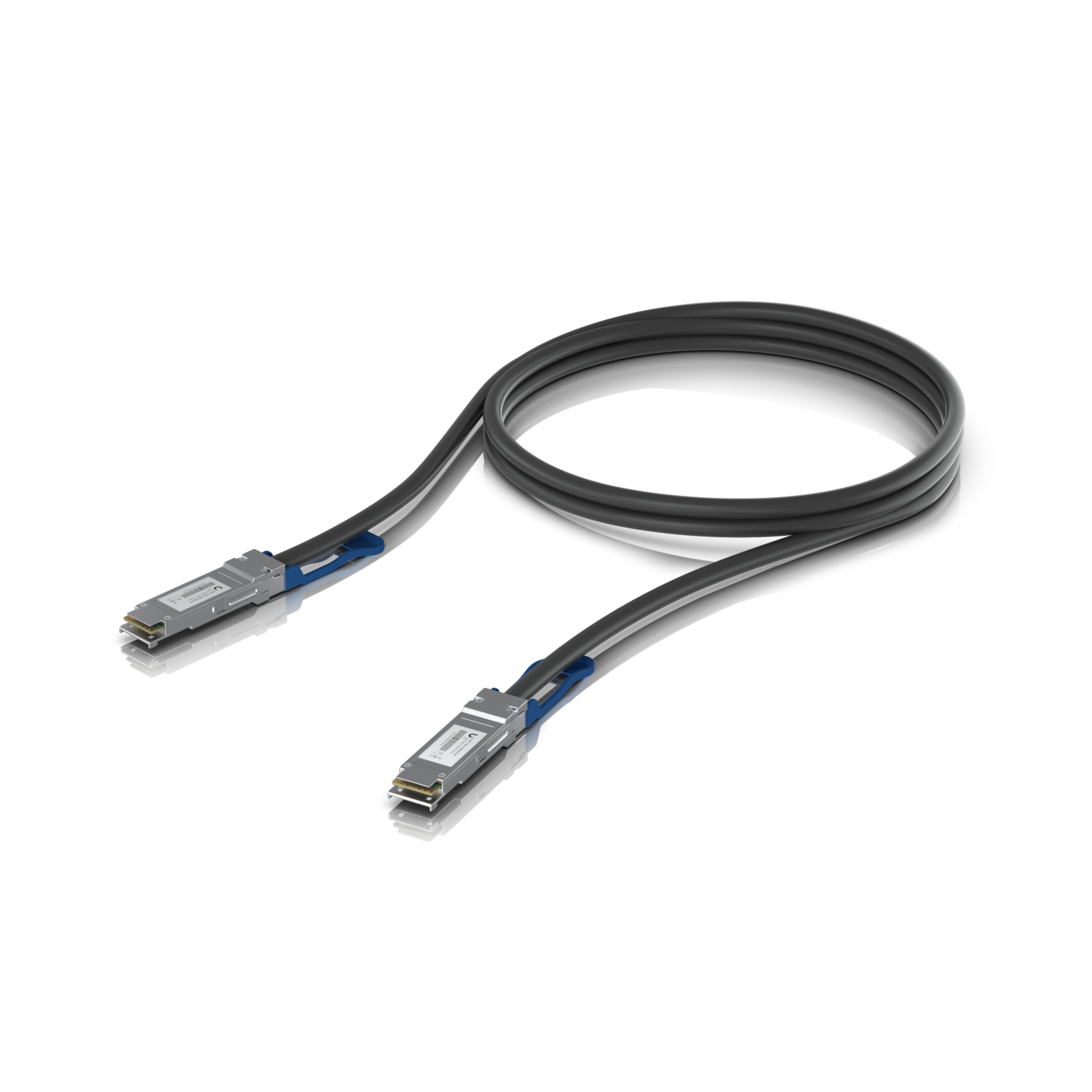

- Single 1 m direct attach copper cable.
- Supports 100 Gbps and 40 Gbps data rates.

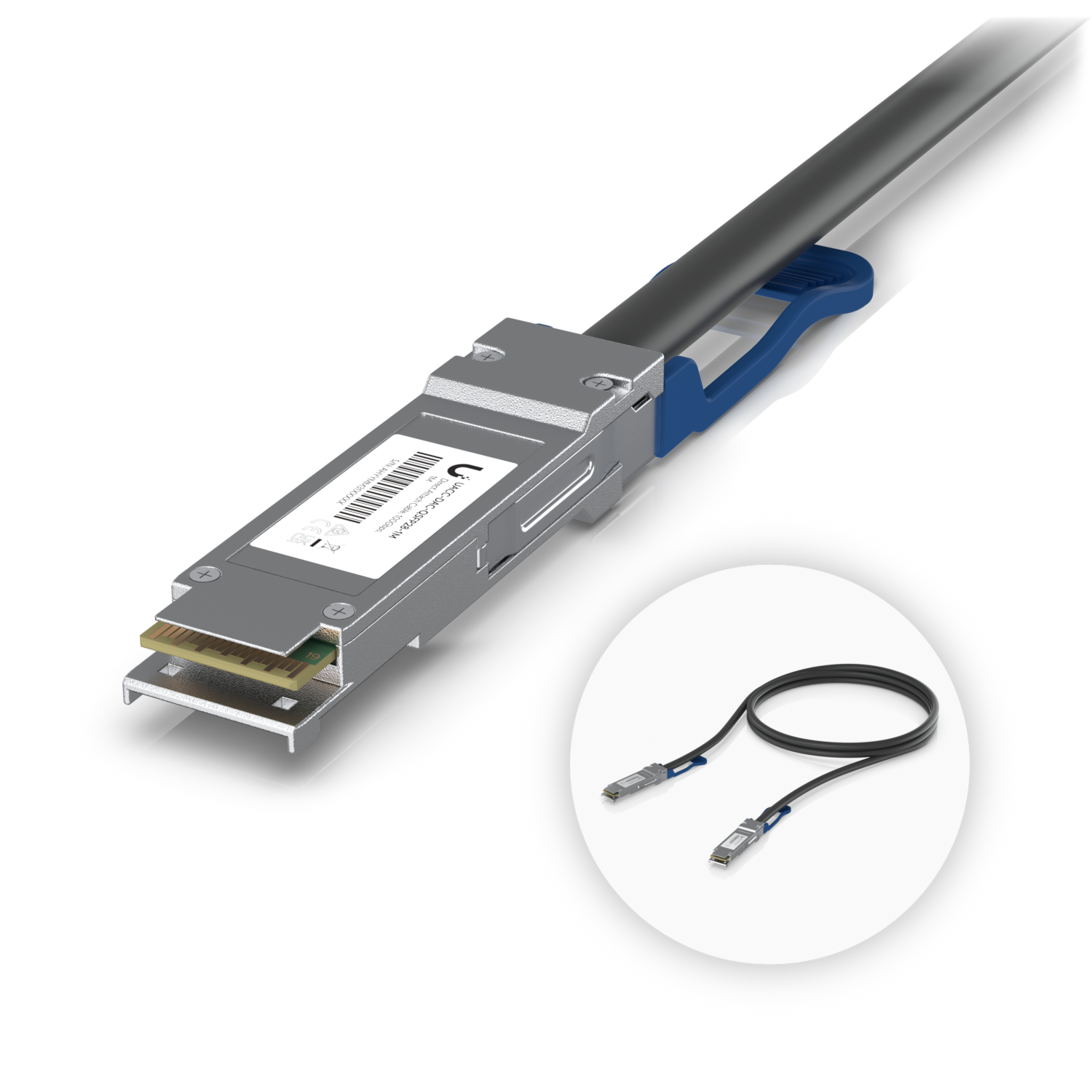

- QSFP28 connector at each end for compatible switch and network interfaces.
- Passive copper construction for short, high-capacity rack and adjacent-device links.
- Black PVC cable jacket with a 7 mm outer diameter.
- Minimum bend radius of 37 mm for practical rack routing.
Ideal applications
- High-speed switch-to-switch uplinks within a rack.
- Short 100 Gbps or 40 Gbps links between compatible UniFi devices.
- Data-centre, aggregation and high-capacity network deployments requiring a compact copper interconnect.
Technical specifications
- Product code: UACC-DAC-QSFP28-1M.
- Pack: Single unit.
- Length: 1 m.
- Supported data rates: 100 / 40 Gbps.
- Connector type: QSFP28 to QSFP28.
- Wire: Copper.
- Jacket: Black PVC.
- Jacket outer diameter: 7 mm.
- Minimum bend radius: 37 mm.
- Ambient operating temperature: 0 to 70 °C.
Why choose UACC-DAC-QSFP28-1M?
The UACC-DAC-QSFP28-1M provides a clean single-cable option for short 100 Gbps or 40 Gbps QSFP28 links, combining high throughput with simple passive copper deployment and rack-friendly handling.
