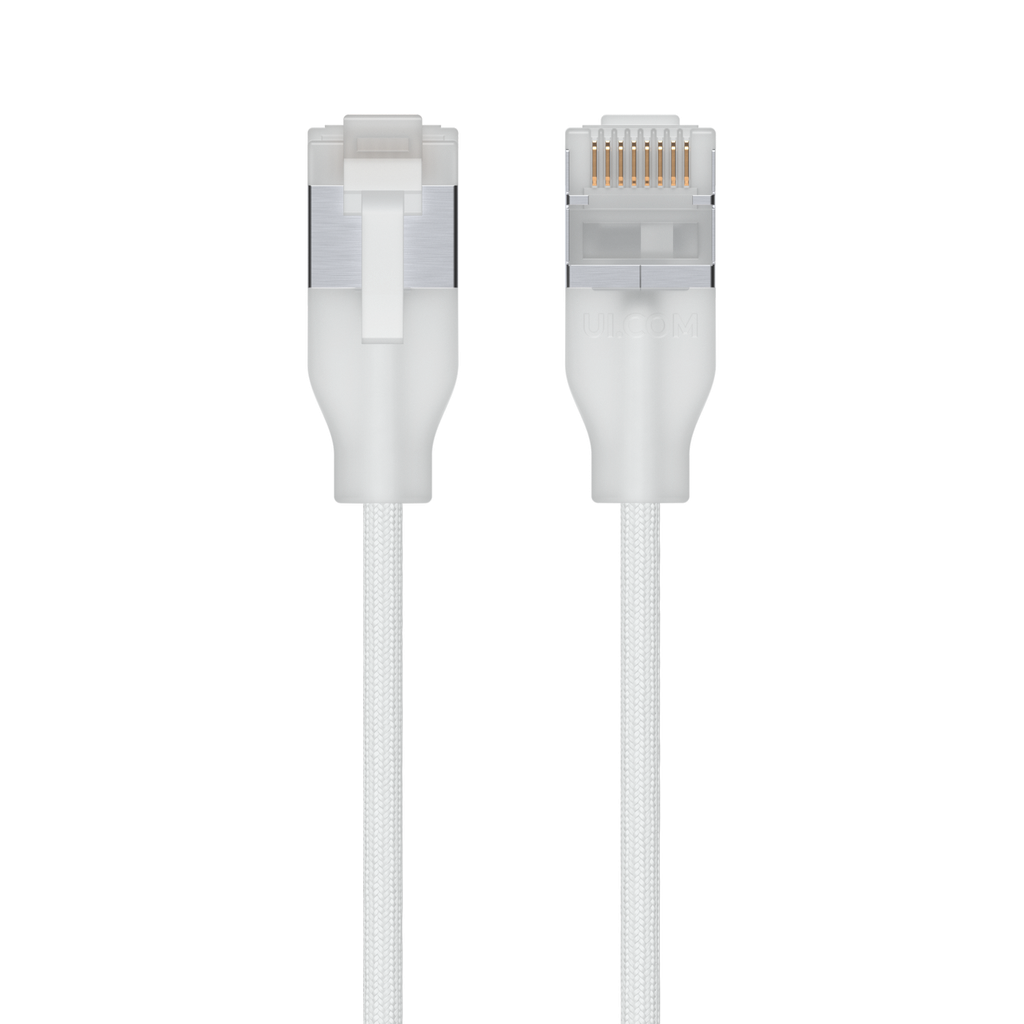

Ubiquiti UACC-Cable-Patch-EL-C6A-0.3M-W UniFi Premium Patch Cable 0.3M
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
100% Original
Fast Delivery
Share this product:
Ubiquiti UACC-Cable-Patch-EL-C6A-0.3M-W UniFi Premium Patch Cable 0.3m
Ultra-thin braided patch cable, designed and optimized for 10 GbE networking.
Translucent booted RJ45 for optimal Etherlighting™ brightness
— 3 mm outer diameter for 0.15-8 m lengths
Technical SpecificationsOverviewAvailable LengthsEnd-to-end: 0.15, 0.3, 1, 2, 3, 5, 8, 12, 15 m
(0.5, 1, 3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft)Available ColorsWhitePack OptionsSingle Unit
24-Pack (0.15 m)Supported Data Rate10GSupported PoE TypeUp to PoE+++Connector(2) Translucent booted and shielding RJ45Operating EnvironmentIndoorCableJacket Diameter0.15-8 m: 3 mm (0.11")
12-15 m: 3.3 mm (0.13")Jacket MaterialThermoplastic elastomer (TPE) & BraidedShielding TypeUTPConductor TypeStranded copperConductor Wire Gage1-8 m (3-26 ft): 34 AWG
12-15 m (39-49 ft): 32 AWGBend Radius1-8 m: Min. 24 mm (0.94 '')
12-15 m: Min. 27 mm (1.06 '')Flame RatingVW-1 (UL1581)StandardsTIA/EIA-568-B.2
ISO/IEC 11801Installation Temperature-20 to 60°C (–4 to 140°F)Ambient Storage Temperature-20 to 75°C (–4 to 167°F)Ambient Operating Temperature-20 to 60°C (–4 to 140°F)
Translucent booted RJ45 for optimal Etherlighting™ brightness
— 3 mm outer diameter for 0.15-8 m lengths
Technical Specifications
Overview
Available Lengths
End-to-end: 0.15, 0.3, 1, 2, 3, 5, 8, 12, 15 m
(0.5, 1, 3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft)
Available Colors
White
Pack Options
Single Unit
24-Pack (0.15 m)
Supported Data Rate
10G
Supported PoE Type
Up to PoE+++
Connector
(2) Translucent booted and shielding RJ45
Operating Environment
Indoor
Cable
Jacket Diameter
0.15-8 m: 3 mm (0.11")
12-15 m: 3.3 mm (0.13")
Jacket Material
Thermoplastic elastomer (TPE) & Braided
Shielding Type
UTP
Conductor Type
Stranded copper
Conductor Wire Gage
1-8 m (3-26 ft): 34 AWG
12-15 m (39-49 ft): 32 AWG
Bend Radius
1-8 m: Min. 24 mm (0.94 '')
12-15 m: Min. 27 mm (1.06 '')
Flame Rating
VW-1 (UL1581)
Standards
TIA/EIA-568-B.2
ISO/IEC 11801
Installation Temperature
-20 to 60°C (–4 to 140°F)
Ambient Storage Temperature
-20 to 75°C (–4 to 167°F)
Ambient Operating Temperature
-20 to 60°C (–4 to 140°F)
