Ubiquiti UA-SK-Gate Unifi Gate Access Starter Kit

https://streakwave.com.au/web/image/product.template/22177/image_1920?unique=74cf5fb

Product Code: UA-SK-Gate

$ 1,301.85 incl. GST 1301.8500000000001 AUD $ 1,301.85

$ 1,149.00

    This combination does not exist.

    Add to Cart
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Terms and Conditions
    100% Original
    Fast Delivery

    Share this product:

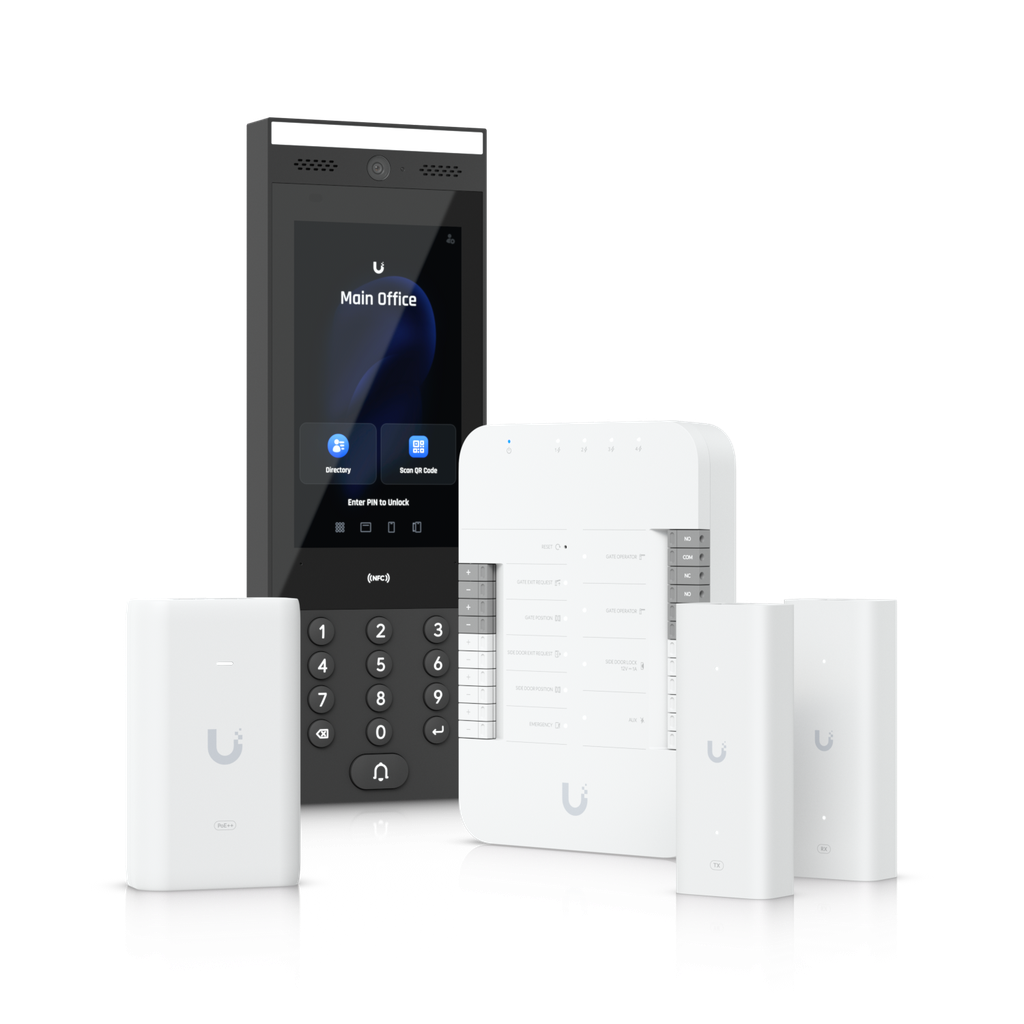

    Ubiquiti Unifi UA-Gate Unifi Gate Access Starter Kit

    Control a vehicle gate using the connected Intercom and authorize gate access with License Plate Unlock when paired with a compatible Protect AI camera*.

    (1) Gate Hub

    (1) Intercom

    (1) PoE++ adapter

    (2) 2-wire PoE extenders



    Technical Specifications
    Mechanical
    Dimensions175 x 126 x 26 mm (6.9 x 5 x 1")
    Weight460 g (1 lb)
    Enclosure materialPolycarbonate
    MountingDin-rail (Included)
    Hardware
    Networking interface(5) 10/100/1000 Base-T
    Power methodPoE++
    Max. power consumptionWithout PoE output: 22W
    With PoE output: 50W
    PoE input50V DC, 1A
    PoE outputPoE passthrough, (4) PoE, 50V DC, Max. 28W
    Button(1) Factory-reset
    Digital inputGate exit request, gate position, side door exit request, side door position, emergency
    Dry output relay(2) Operator: rated 30V DC, up to 1A
    (1) Aux: rated 30V DC, up to 1A
    Powered output relaySide door lock: 12V DC, up to 1A
    Operating environmentIndoor use only with device itself
    Outdoor use with waterproof junction box
    Ambient operating temperature-30 to 60° C (-22 to 104° F)
    Ambient operating humidity5 to 90% noncondensing
    CertificationsCE, FCC, IC
    LEDs
    PoE inSteady white: Pending adoption
    Steady blue: Adopted, device is ready
    Blinking white/blue: Upgrading firmware
    PoE outOff: Not connected or no data link
    Steady white: Connected and data link on
    Input terminalsOff: No wire
    Steady white: Wire connected
    Blinking white: Active signal
    Output relaysOff: No wire
    Steady white: Wire connected
    Blinking white: Relay triggered
    UA-Intercom
    Mechanical
    Dimensions324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
    WeightDevice: 965 g (2.1 lb)
    Bracket: 445 g (1 lb)
    Enclosure materialAluminum alloy, UV-stabilized polycarbonate, glass
    Mount materialPowder-coated stainless steel
    MountingWall mount, adapter to the gooseneck pedestal (Included)
    Surface angle mount, flush mount (Optional)
    Sunshield kit (Optional)
    WeatherproofingIP65
    Hardware
    Networking interface(1) GbE RJ45 port
    ConnectivityBluetooth 4.2
    NFC
    Power methodPoE
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU
    Supported voltage range48V DC
    Max. power consumption13W
    ESD/EMP protectionAir: ±15kV, contact: ±8kV
    SensorsProximity sensor
    ALS sensor
    Camera3264 x 2448, 8 MP
    H: 79.4°, V: 97.5°, D: 118.2°
    Display177 mm (7") diagonal
    Resolution1024 x 600 (16:9)
    Display luminanceMax. 1000 nits (typical)
    Touch screen technologyCapacitive multi-touch
    MicrophoneYes
    Speaker(1) 4 ohm, 2W
    LEDs(1) LCM low temperature indicator: orange (LCM turned off when it’s below -25° C but the system funtions normally)
    (1) LED floodlight
    (13) Keypad LED backlight
    Button(1) Factory-reset
    NFC frequency13.56 MHz
    NFC read range< 30 mm
    NFC standardsISO 14443A, 14443B, 15693
    NFC technologyNFC Tag 1,2,3,4,5
    MIFARE Classic
    MIFARE Plus
    MIFARE Ultralight
    MIFARE DESFire
    Ambient operating temperatureDevice: -30 to 60° C (-22 to 140° F)
    Display:* -25 to 60° C (-13 to 140° F)
    *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v 1.0.66)
    Operating environmentOutdoor use
    Ambient operating humidity5 to 90% noncondensing
    Software informationThe software version of a product can be checked at https://unifi.ui.com
    UL 294 levelDestructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I
    UL 294 statementCompliance with IEEE 802.3 specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
    PoE cabling requirementsCable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
    CAN/ULC-60839-11-1 GradeGrade assignment: I
    CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
    Document number, and issue date and/or revision levelUA-Intercom, V01
    UACC-Extender-2Wire-PoE-Tx/Rx
    Mechanical
    Dimensions40 x 105 x 25 mm (1.6 x 4.1 x 1")
    WeightPoE in: 77 g (2.7 oz)
    PoE out: 79 g (2.8 oz)
    Enclosure materialPolycarbonate
    Mounting materialPolycarbonate
    Hardware
    Networking interface(1) 10/100 MbE
    (1) Homeplug AV
    Power methodPoE++
    Max. power consumption3W (Without PoE output)
    PoE input(1) PoE++, 50V DC, Max. 1.2A
    PoE output(1) PoE+, 48V DC, 0.72A
    ESD/EMP protectionAir: ±8kV, contact: ±4kV
    LEDWhite
    Ambient operating temperature-10 to 40° C (14 to 104° F)
    Ambient operating humidity5 to 95% noncondensing
    CertificationsCE, FCC, IC
    U-PoE++
    Specifications
    ModelU-PoE++
    Dimensions106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
    Weight210 g (7.4 oz)
    Output voltage48V DC @ 1.25A
    LAN activity indicatorNo
    Gigabit LAN portYes
    Remote reset capabilityNo
    Reset buttonNo
    Rated voltage100—240V AC @ 50/60Hz
    Input current1.3A @ 120V AC
    0.75A @ 230V AC
    Inrush current<100A peak @ 120V AC
    <200A peak @ 230V AC
    Efficiency85+%
    Output ripple1% max.
    Switching frequency65 kHz
    Line regulation≤ 1%
    Load regulation≤ 3%
    2-pair poweringNo
    4-pair poweringPins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
    AC connectorIEC-320 C6
    Data In / PoERJ45 shielded socket
    Surge protectionDifference and common mode
    Clamping protection11V data, 60V power
    Max. surge discharge1500A (8/20 μs) power
    Peak pulse current36A (10/1000 μs) data
    Shunt capacitance<5 pF data
    Response time<1 ns
    Power methodUniversal AC input, 100—240V AC, 50/60 Hz
    Power supplyAC/DC
    Supported voltage range100—240V AC
    Max. PoE+ wattage per port by PSE60W
    Ambient operating temperature0 to 40° C (32 to 104° F)
    Storage temperature-30 to 70°C (-22 to 158° F)
    Ambient operating humidity10 to 95% noncondensing
