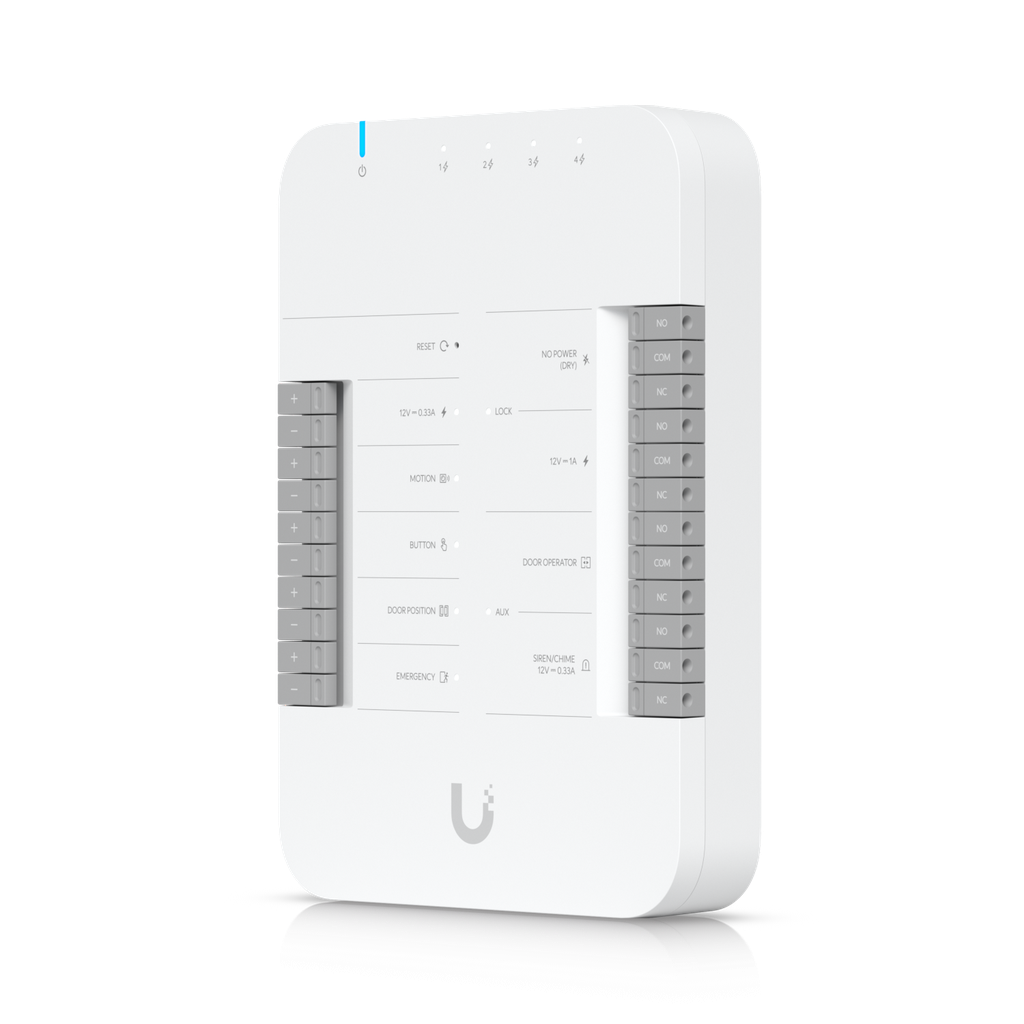

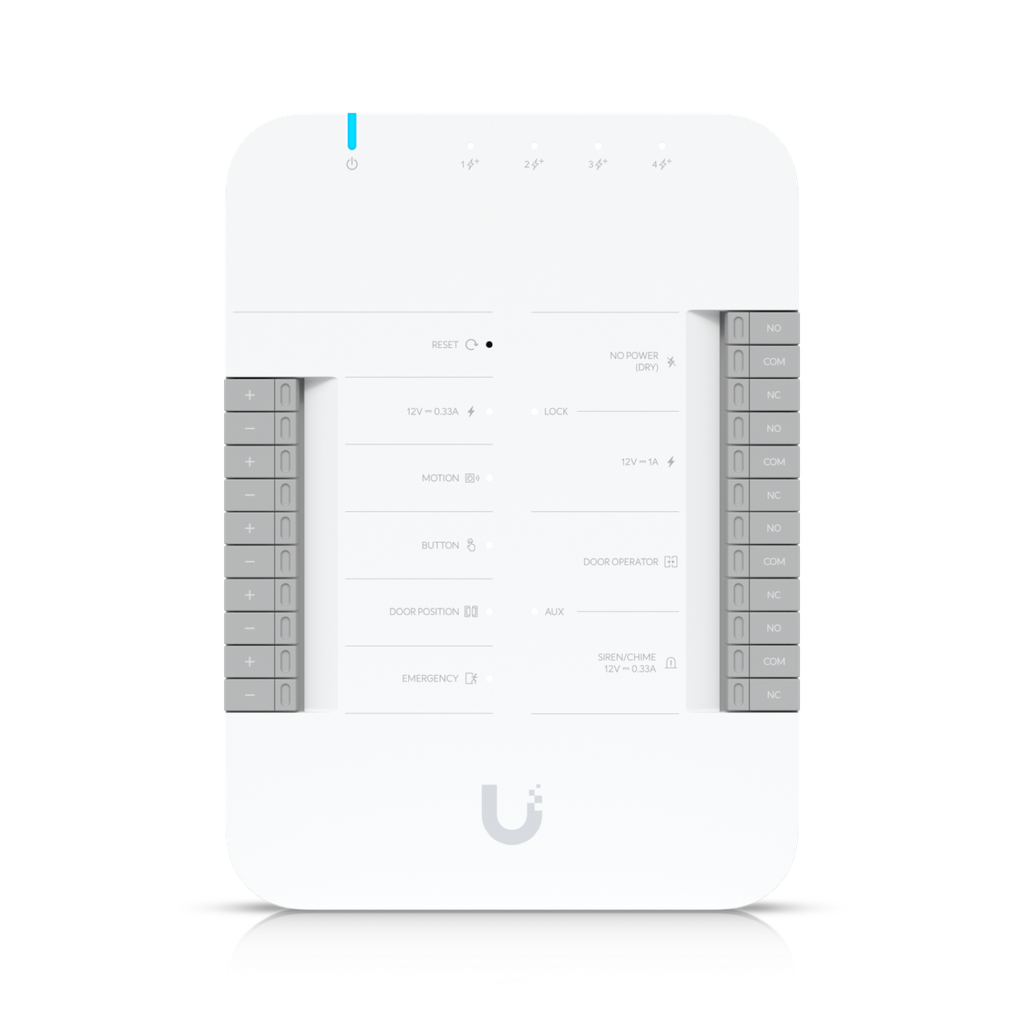

Ubiquiti UA-Hub-Door UniFi Access Hub
Product Code: UA-Hub-Door
The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access application. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface.
UA-Hub-Door Features:
Powered by 802.3bt (PoE++) switch
Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
12V powered and dry relays compatible with most locks
Four inputs for motion sensors, request-to-exit devices and door position switch
Managed with UniFi Access Application in UDM-Pro
DIN-rail mounting
| Mechanical | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") | |||||||||||||||||||||||||
| Weight | 363 g (12.8 oz) | |||||||||||||||||||||||||
| Enclosure material | Polycarbonate | |||||||||||||||||||||||||
| Mounting material | Polycarbonate | |||||||||||||||||||||||||
| Hardware | ||||||||||||||||||||||||||
| Networking interface | (5) 10/100/1000 Base-T | |||||||||||||||||||||||||
| Power method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU | |||||||||||||||||||||||||
| Max. power consumption | Without PoE output: 30W With PoE output: 50W | |||||||||||||||||||||||||
| PoE input | 50V DC, 1A | |||||||||||||||||||||||||
| PoE output | PoE passthrough, (4) PoE, 50V DC, total 20W | |||||||||||||||||||||||||
| LEDs | White/blue (Learn more) | |||||||||||||||||||||||||
| Button | (1) Factory-reset | |||||||||||||||||||||||||
| Digital input | Request to exit/request to enter/remote release/door position sensor | |||||||||||||||||||||||||
| Dry output relay | Lock: 30V DC, 1A Aux: 30V DC, 1A | |||||||||||||||||||||||||
| Powered output relay | Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A | |||||||||||||||||||||||||
| Recommend max. cable length |
| |||||||||||||||||||||||||
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. | |||||||||||||||||||||||||
| Operating environment | Indoor use only | |||||||||||||||||||||||||
| Ambient operating temperature | 0 to 40° C (32 to 104° F) | |||||||||||||||||||||||||
| Ambient operating humidity | 5 to 95% noncondensing | |||||||||||||||||||||||||
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I | |||||||||||||||||||||||||
| UL 294 statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. | |||||||||||||||||||||||||
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
