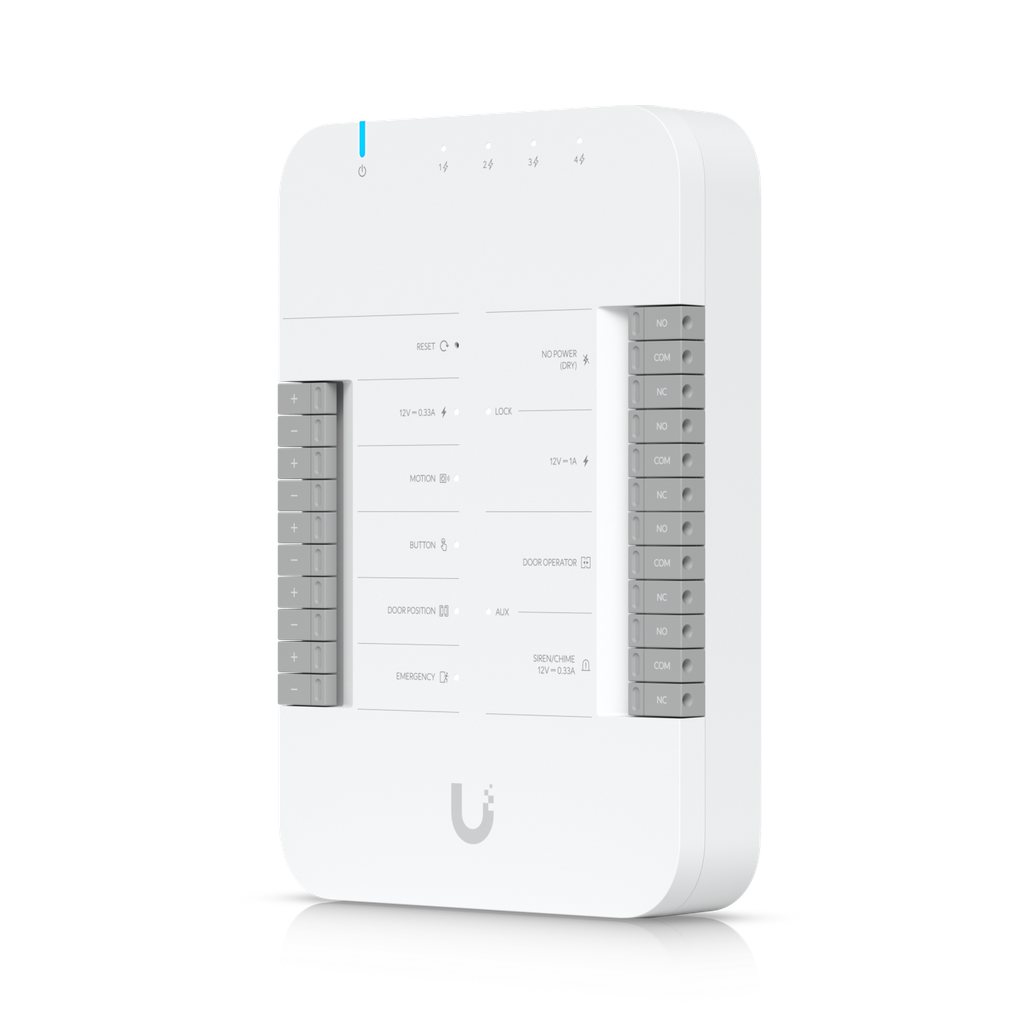

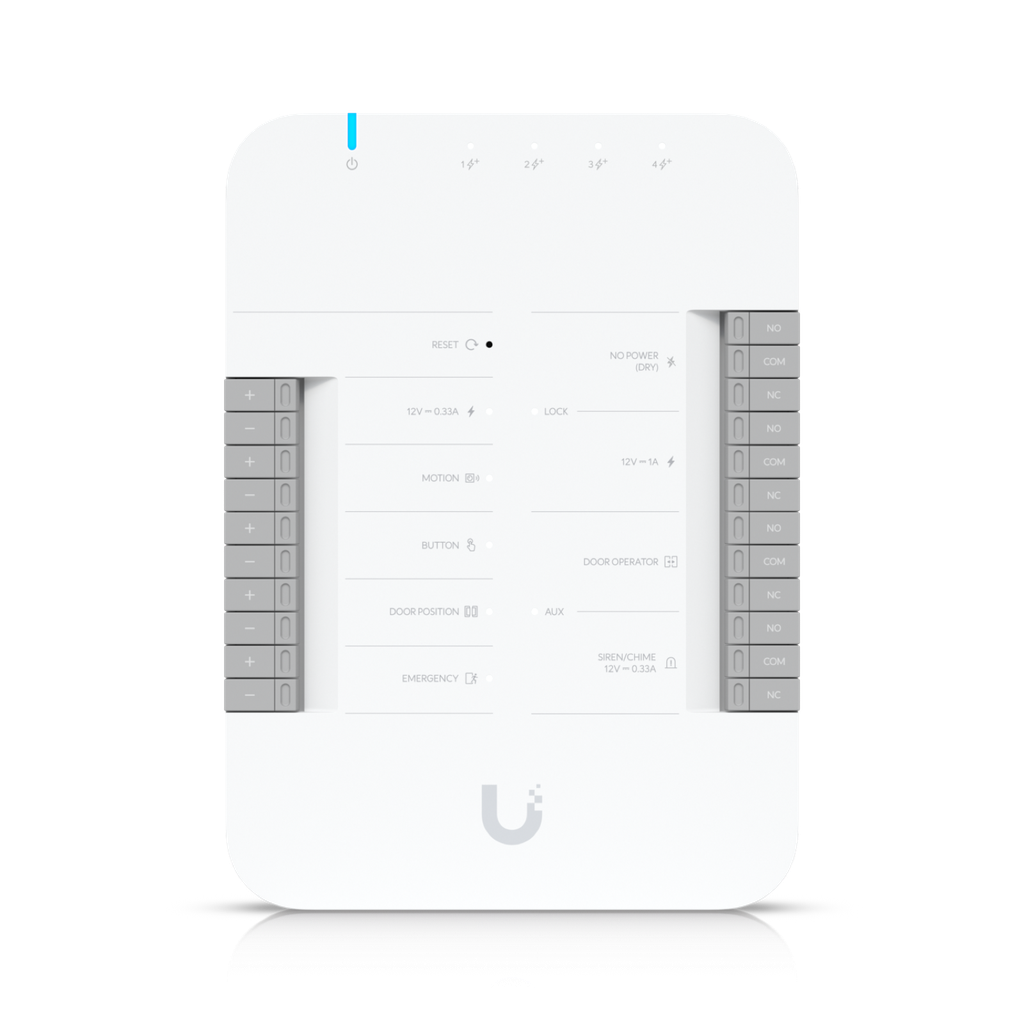

Ubiquiti UA-Hub-Door UniFi Access Hub Door
Access Door Hub UniFi Access device featuring (5) 10/100/1000 Base-T, PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU, 174.9 x 126 x 32.9 mm.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

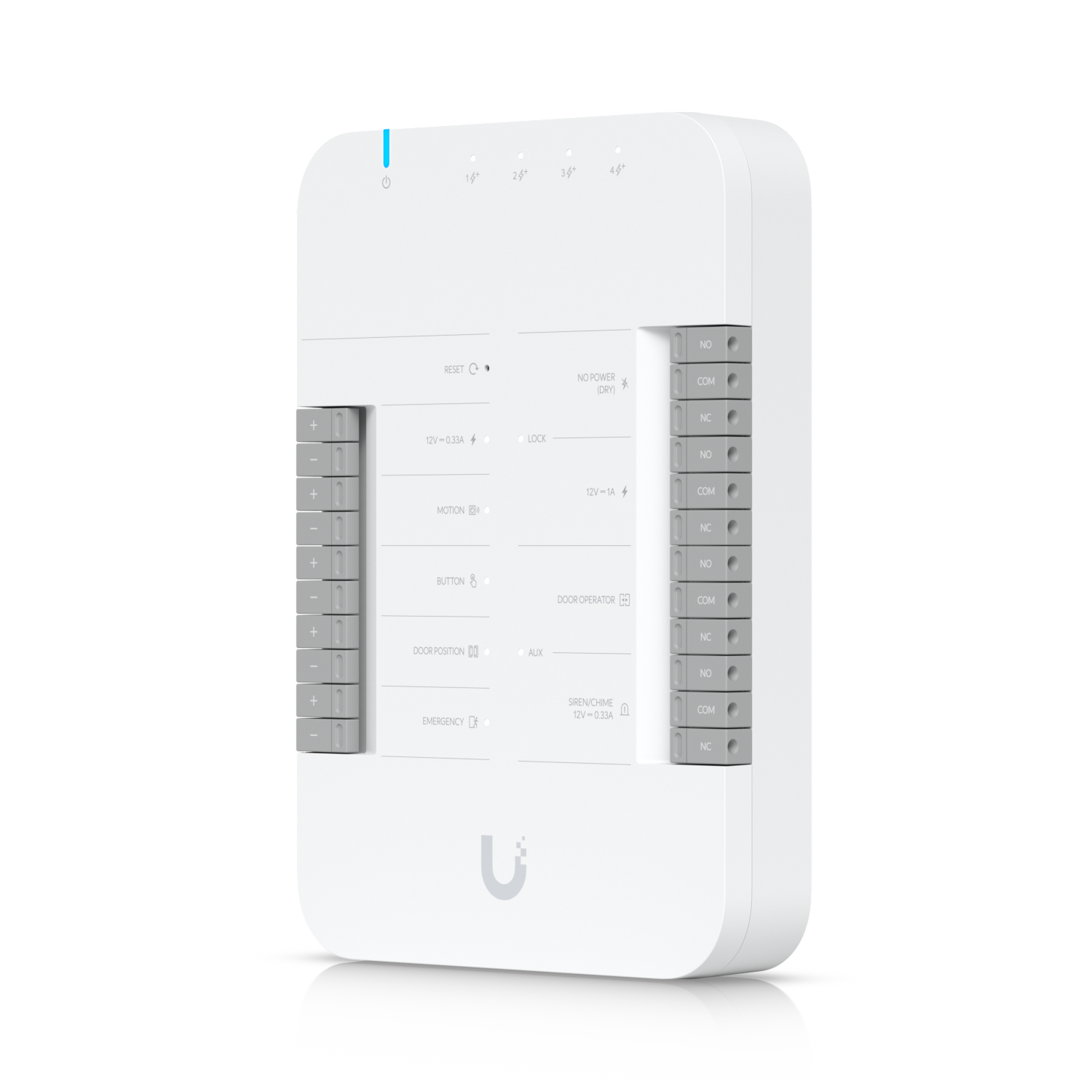

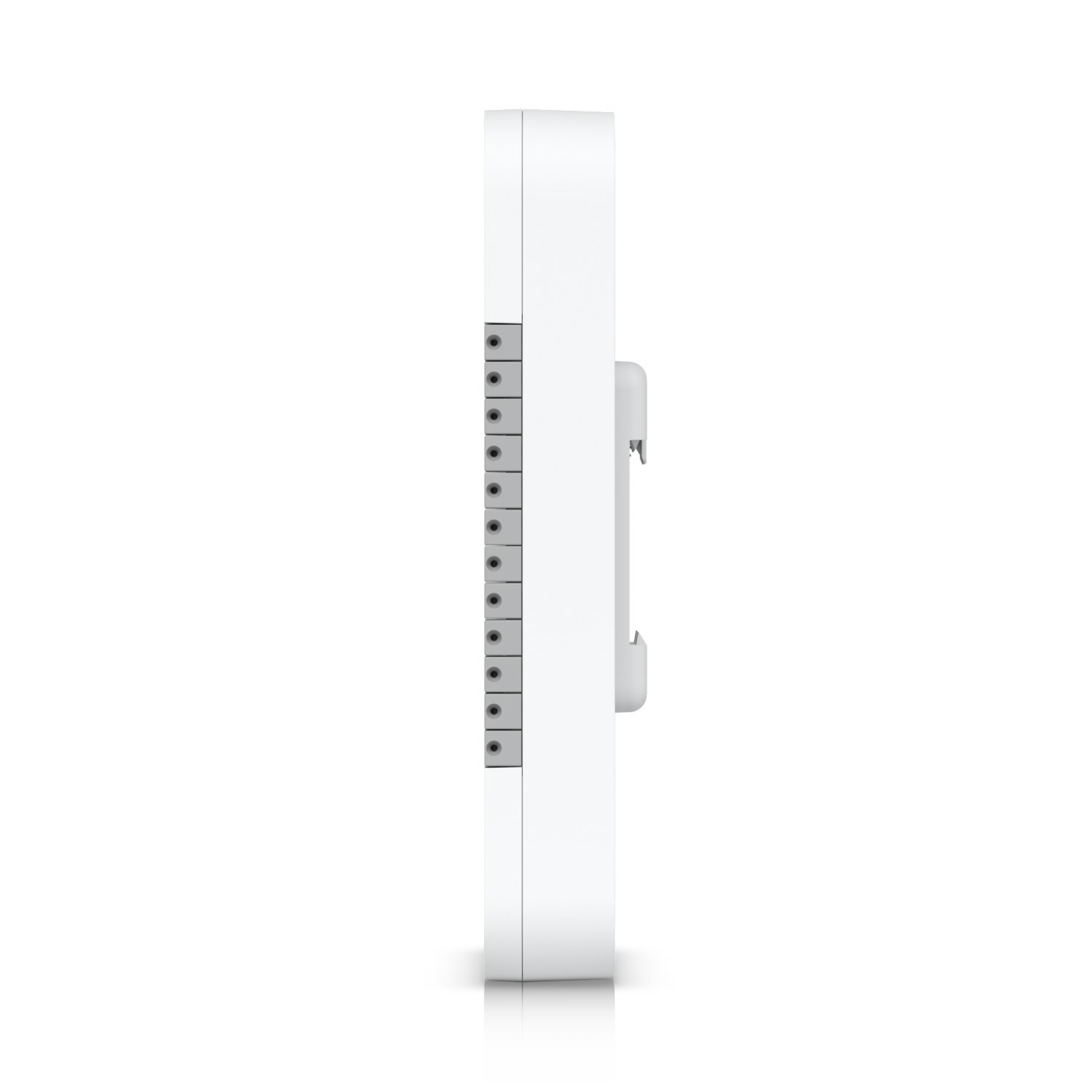

Ubiquiti UA-Hub-Door Access Door Hub
UA-Hub-Door is a UniFi Access device for Streakwave UniFi Access deployments, with (5) 10/100/1000 Base-T, PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU, 174.9 x 126 x 32.9 mm.
Key Features
- A single-door mechanism that provides complete entry and exit control via connected Access Readers.
- Official Ubiquiti UniFi Access device for UniFi Access deployments.
- Designed for professional managed access-control installations.
- Managed centrally through UniFi Access.
- Key specification: (5) 10/100/1000 Base-T.
Technical Specifications
- Dimensions: 174.9 x 126 x 32.9 mm
- Weight: 363 g
- Networking Interface: (5) 10/100/1000 Base-T
- Power Method: PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- Max. Power Consumption: 30W (Without PoE output) 50W (With PoE output)
- Mounting: DIN-rail (Included)
- Ambient Operating Temperature: 0 to 40° C
- Ambient Operating Humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Supported Doors: 1
- Maximum User Count: 6,000
- Input Terminals: (2) Door exit request (1) Door position (1) Emergency
