Ubiquiti UA-G3-SK-Gate UniFi G3 Gate Access Starter Kit
UniFi G3 Gate Starter Kit with Gate Hub, G3 Intercom, PoE++ adapter and two 2-wire Retrofit Extenders for one gate and side door.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti UA-G3-SK-Gate UniFi G3 Gate Starter Kit
UA-G3-SK-Gate is a UniFi Access gate starter kit for professional UniFi deployments, with official product specifications and clean installation details.

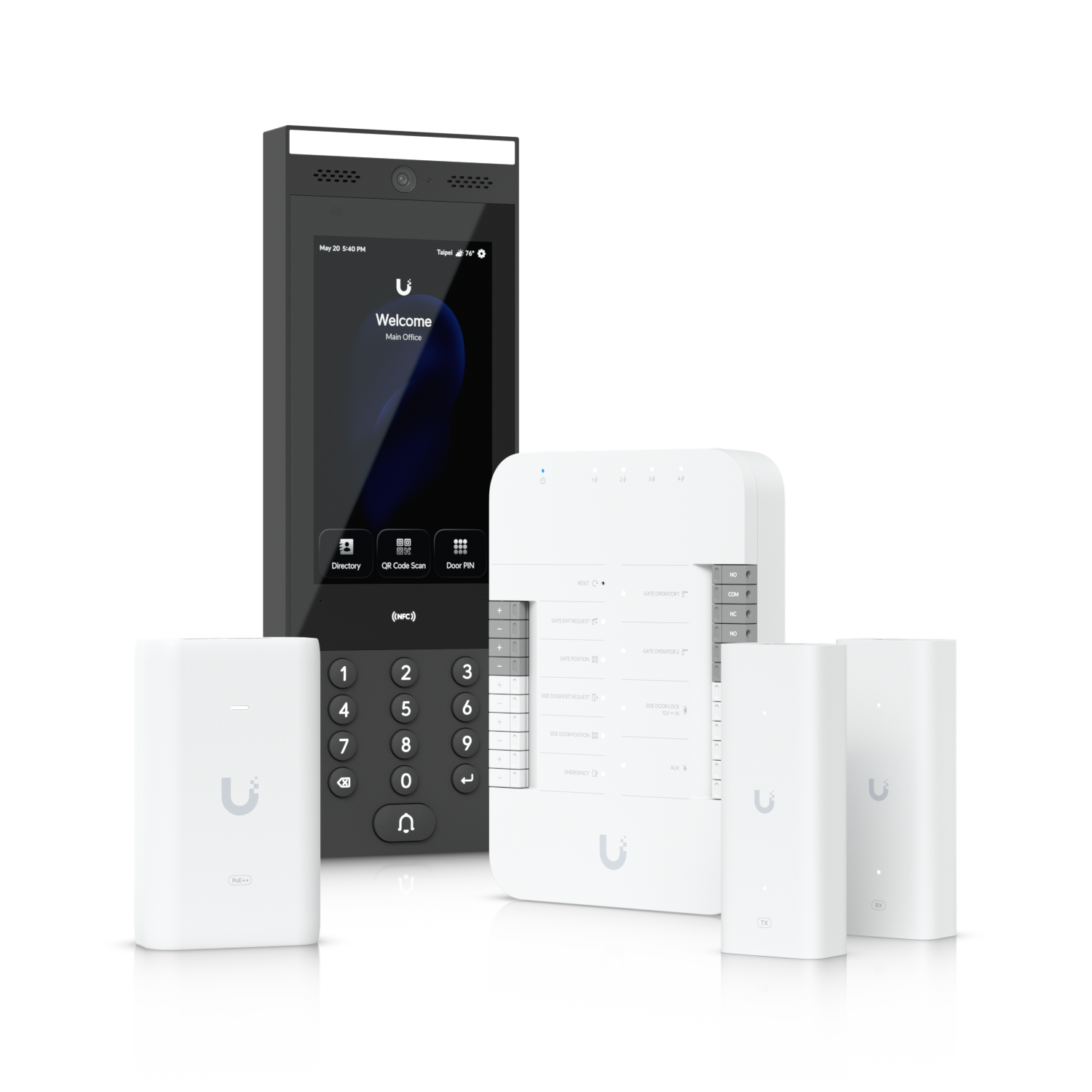

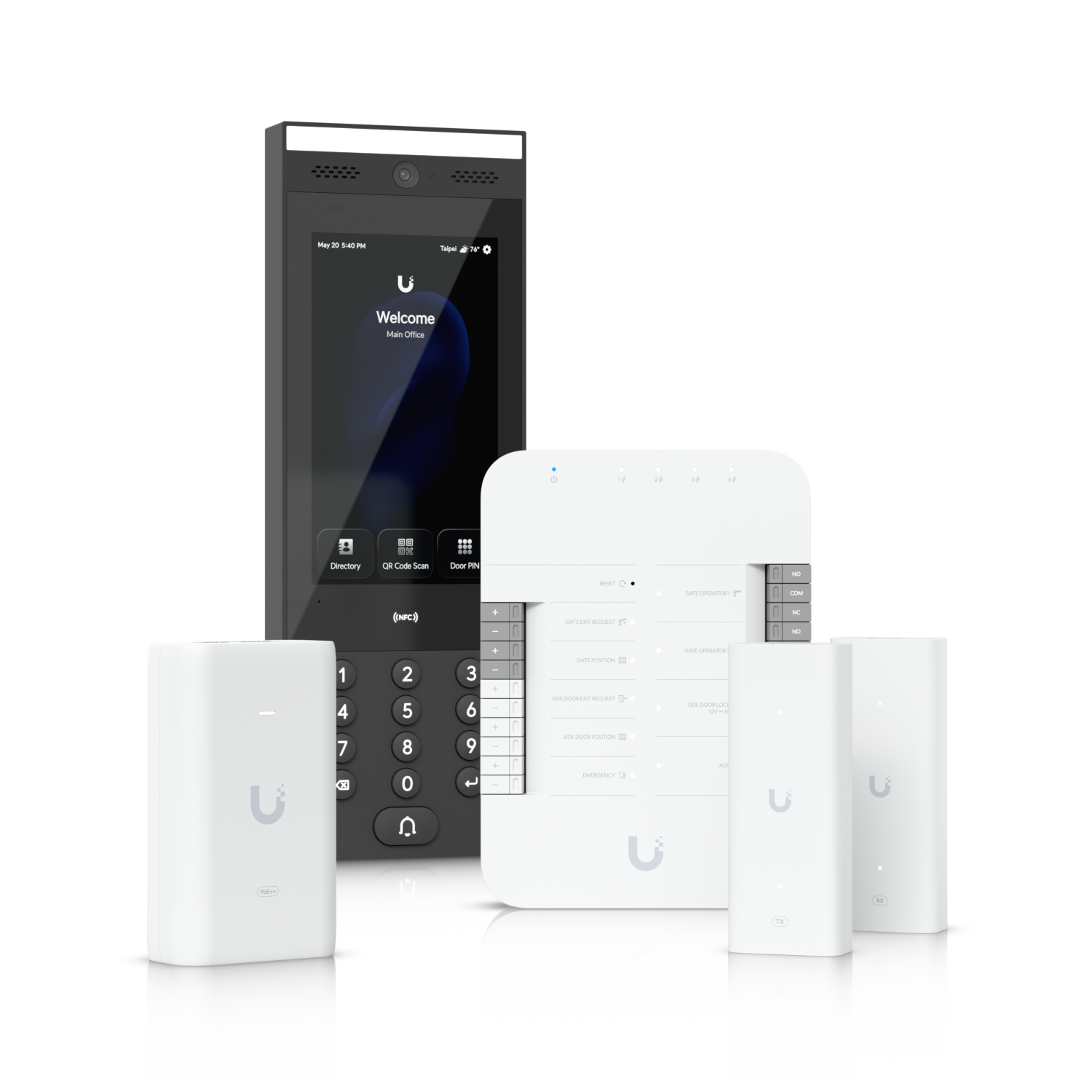

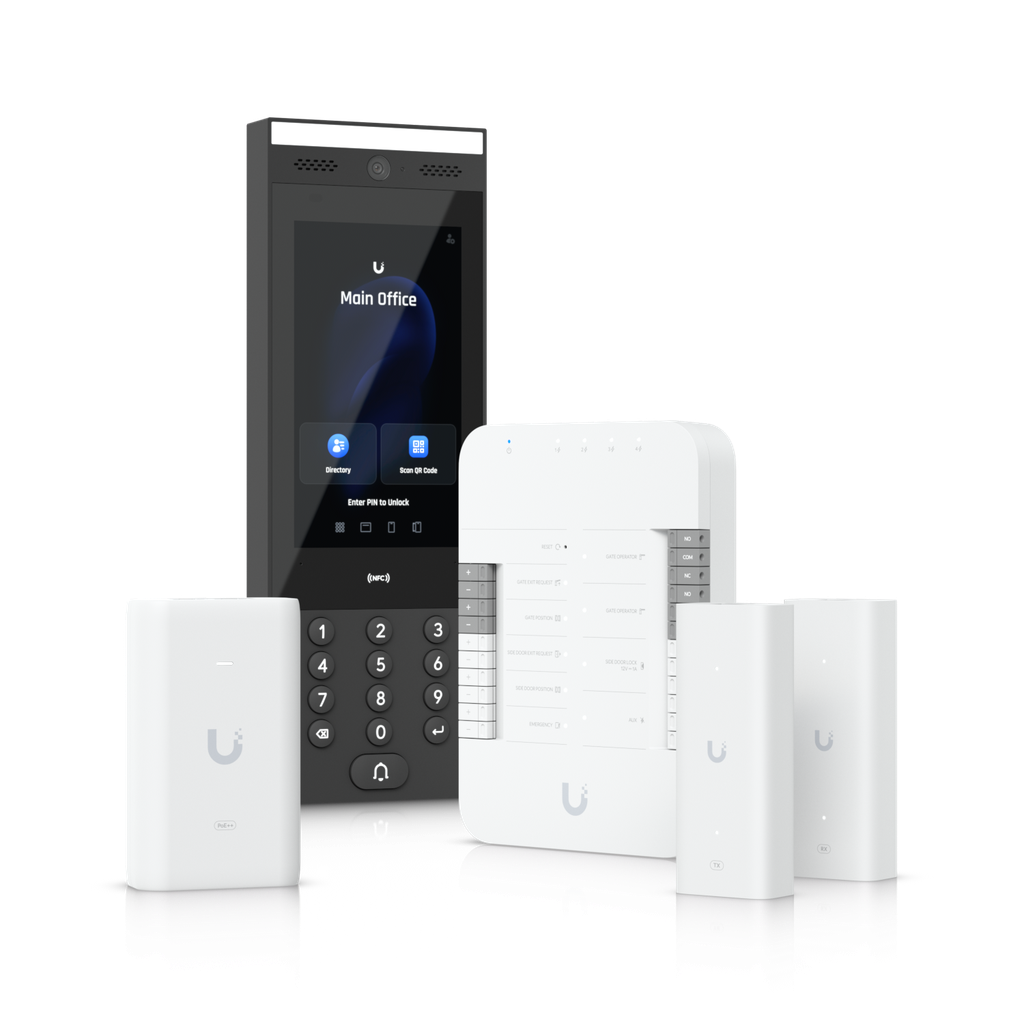

UA-G3-SK-Gate is a UniFi Access starter kit for a single gate and side door, bundling a Gate Hub, G3 Intercom, PoE++ adapter and two 2-wire Retrofit Extenders with Touch Pass support.
Key Features
- Complete starter kit for one gate and one side door.
- Includes Gate Hub, G3 Intercom, PoE++ adapter and two 2-wire Retrofit Extenders.
- Supports up to 6,000 users and UniFi Access management.
- Gate Hub provides PoE++ input and four PoE outputs with 55W aggregate PoE output.
- G3 Intercom adds camera, NFC/PIN/mobile unlock, face unlock and two-way doorbell access.
Technical Specifications
- Included components: (1) Gate Hub, (1) G3 Intercom, (1) PoE++ adapter, (2) 2-wire Retrofit Extenders
- Supported doors: 1 gate and 1 side door
- Maximum user count: 6,000
- Gate Hub dimensions: 175 x 126 x 26 mm
- Gate Hub weight: 460 g
- Gate Hub networking: (5) 10/100/1000 Base-T ports
- Gate Hub power: PoE++ input, four PoE outputs rated 30W per port, 55W aggregate PoE output
- Gate Hub max. power consumption: 22W without PoE output; 60W with PoE output
- Gate Hub inputs: Gate exit request, gate position, side door exit, side door position and emergency inputs
- Relay outputs: Two dry operator outputs, one dry aux output and one 12V DC powered side-door lock output
- G3 Intercom dimensions: 324.8 x 113.7 x 28.3 mm
- G3 Intercom connectivity: GbE RJ45, BLE 4.2 and NFC, powered by PoE
- G3 Intercom access methods: NFC, PIN, Apple/Google Wallet, mobile unlock, face unlock and two-way intercom
- Operating temperature: -30 to 60° C
- Operating humidity: 5 to 90% noncondensing
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1; NDAA compliant
