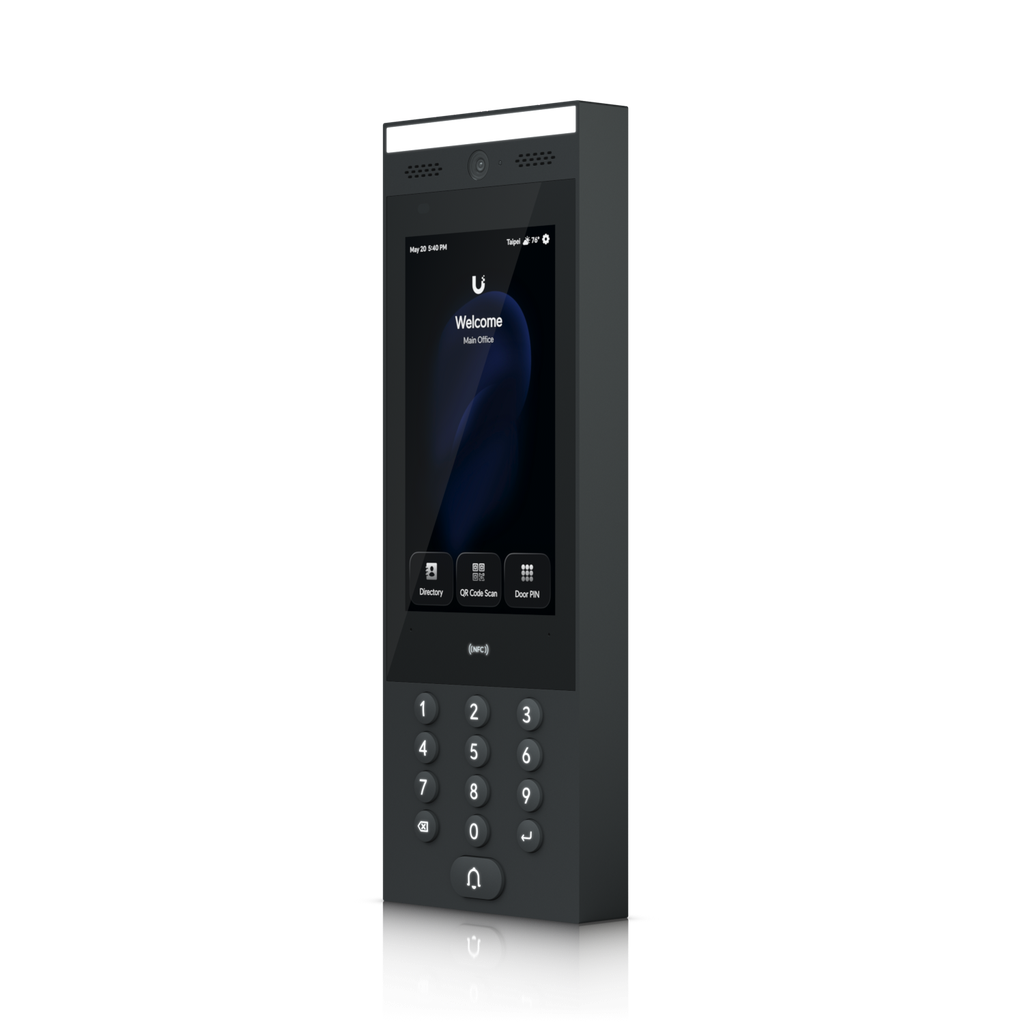

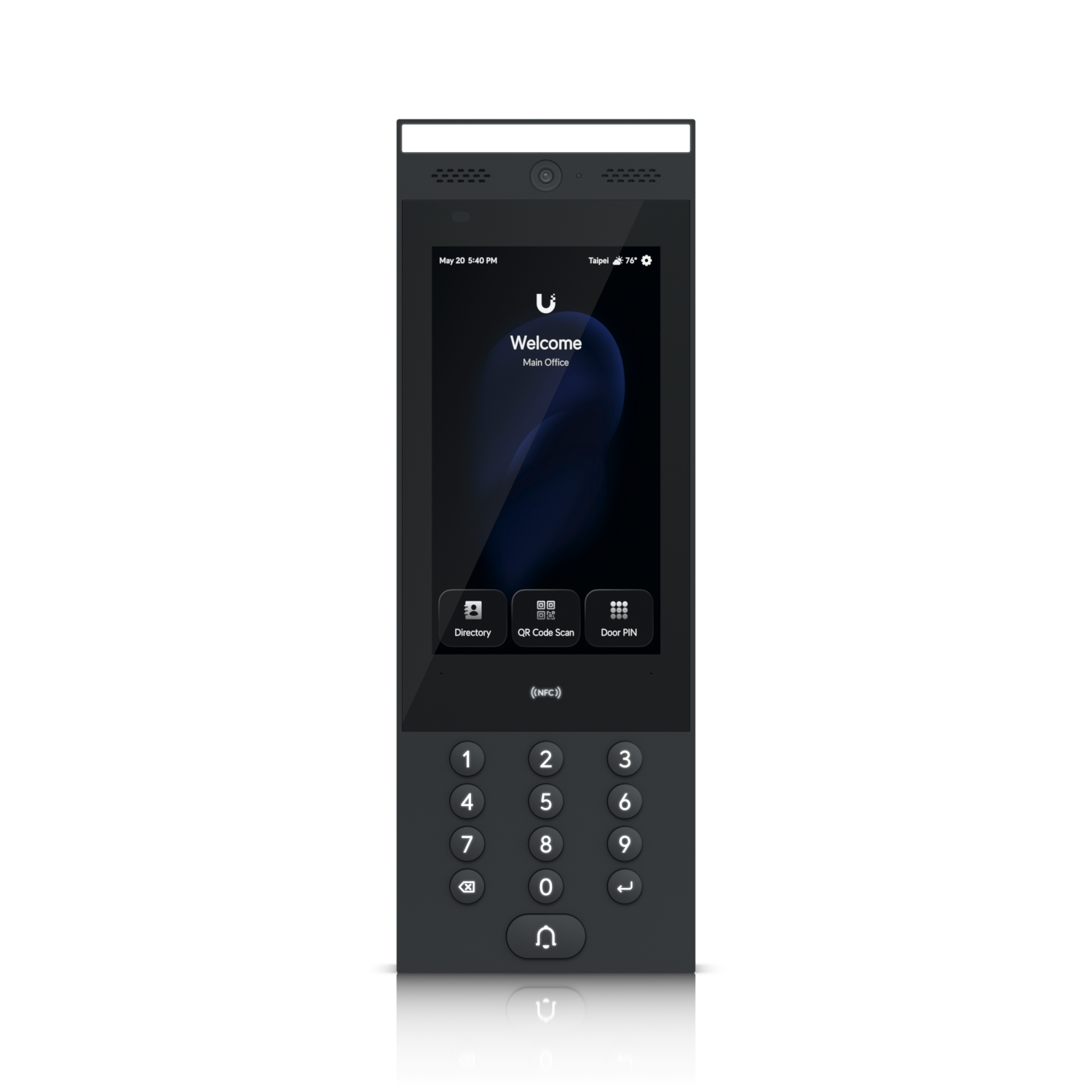

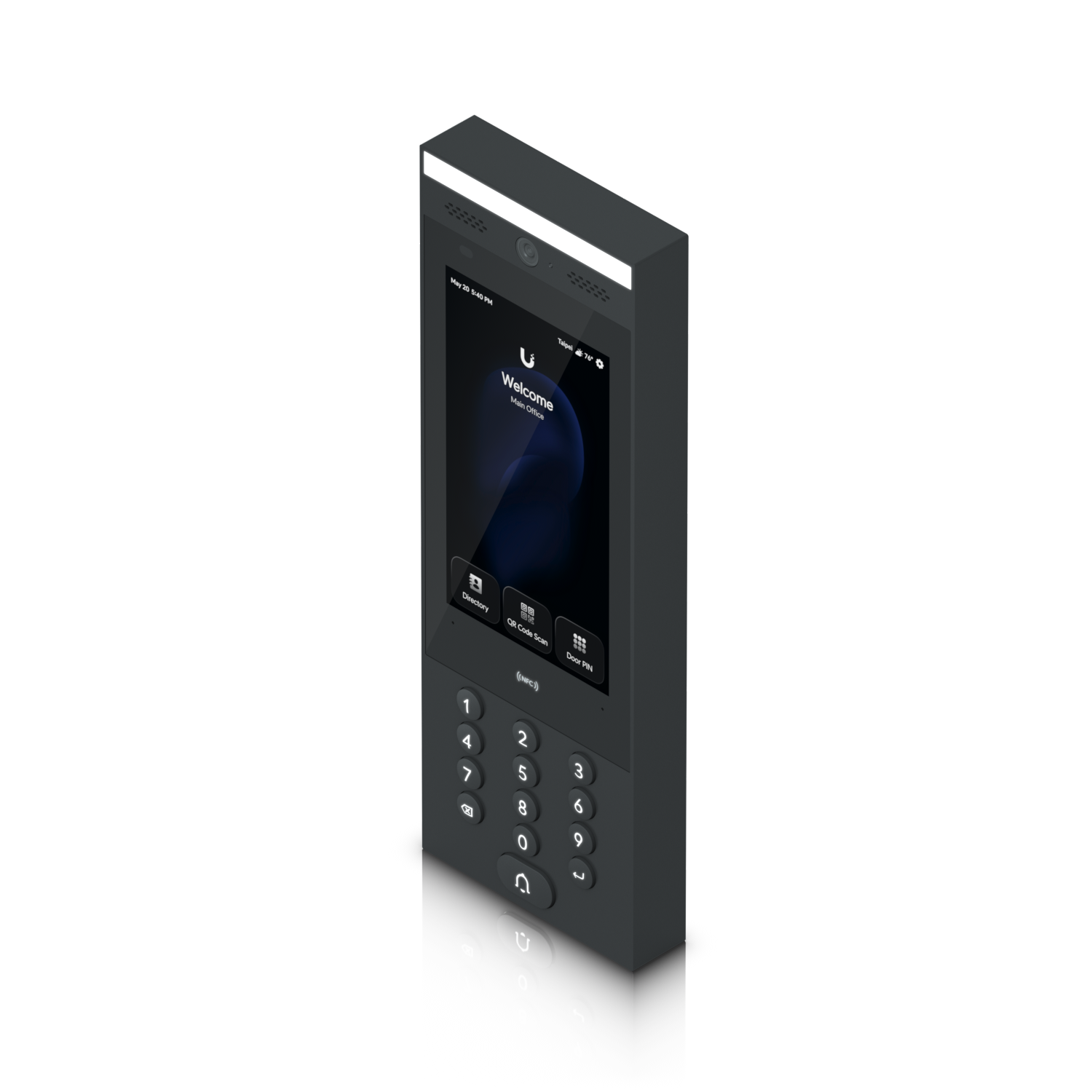

Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
Unlock using Apple or Google Wallet or an NFC card or UniFi Identity mobile app, face unlock and Touch Pass*
Directory and doorbell to request entry
Pairs with multiple UniFi Intercom Viewers for remote access control
Connects to UniFi Access Hub series using PoE
Weatherproof (outdoor exposed -30 to 60° C)
Overview
Dimensions
324.8 x 113.7 x 28.3 mm
(12.8 x 4.5 x 1.1")
NFC Card & Keyfob Access
Yes
Two-Way Intercom & Doorbell Access
Yes
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight
Device: 965 g (2.1 lb)
Bracket: 445 g (1 lb)
Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate, glass
Mount Material
Powder-coated stainless steel
Mounting
Wall mount, adapter to the gooseneck pedestal (Included)
Surface angle, flush mount, sunshield kit (Optional)
Indoor and Outdoor Use
Yes
Ambient Operating Temperature
Device: -30 to 60° C (-22 to 140° F)
Display: -25 to 60° C (-13 to 140° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) GbE RJ45 port
Power Method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
13W
Supported Voltage Range
48V DC
Sensors
Proximity sensor
ALS sensor
Display
177 mm (7") diagonal
Touch Screen Technology
Capacitive multi-touch
Display Luminance
Max. 1000 nits (Typical)
Screen Orientation
Portrait
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3-Intercom, V01
Management Application
Access
