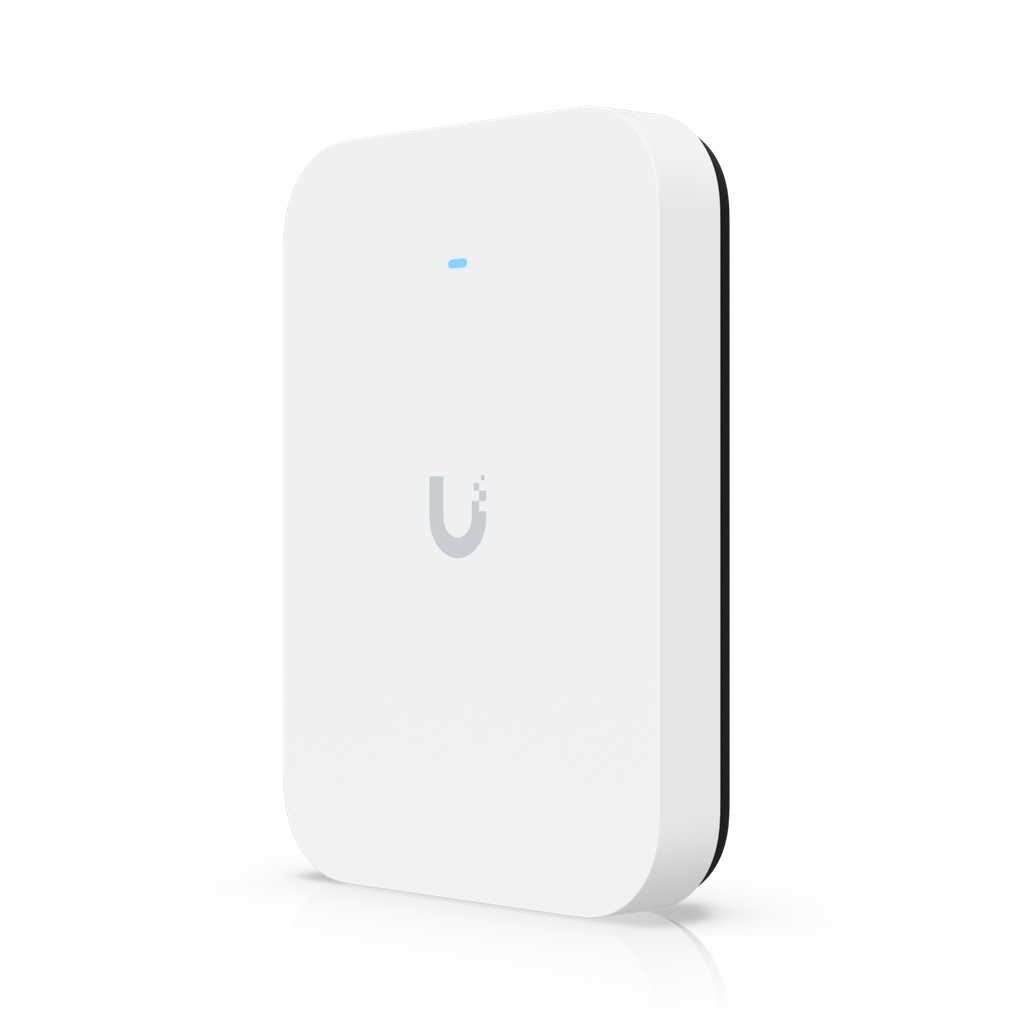

Ubiquiti U7-Pro-XG-Wall Unifi Wall-mounted WiFi 7 AP - POE injector NOT included

https://citytechnology.com.au/web/image/product.template/22862/image_1920?unique=e9fc778

Product Code: U7-Pro-XG-Wall

$ 508.75 incl. GST 508.75 AUD $ 508.75

$ 449.00

    This combination does not exist.

    Add to Cart
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Terms and Conditions
    100% Original
    Fast Delivery

    Share this product:

    Ubiquiti U7-Pro-XG-Wall Unifi Wall-mounted WiFi 7 AP

    Unifi XG 10Gbe Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
    U7-Pro-XG-Wall - Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/10 GbE support.

    WiFi 7 with 6 GHz support

    6 spatial streams

    140 m² (1,500 ft²) coverage

    300+ connected devices

    Powered using PoE+

    10 GbE uplink

    Versatile deployment with optional Flush Mount and Table Stand accessories*


    Technical Specifications
    Overview
    Dimensions
    155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3'')
    WiFi Standard
    WiFi 7
    Spatial Streams
    6
    Coverage Area
    140 m² (1,500 ft²)
    Max. Client Count
    300+
    Uplink
    10 GbE
    Mounting
    Wall
    Power Method
    PoE+
    Performance
    MIMO
    6 GHz
    2 x 2 (DL/UL MU-MIMO)
    5 GHz
    2 x 2 (DL/UL MU-MIMO)
    2.4 GHz
    2 x 2 (DL/UL MU-MIMO)
    Max. Data Rate
    6 GHz
    5.8 Gbps (BW320)
    5 GHz
    4.3 Gbps (BW240)
    2.4 GHz
    688 Mbps (BW40)
    Antenna Gain
    6 GHz
    6 dBi
    5 GHz
    6 dBi
    2.4 GHz
    4 dBi
    Max. TX Power
    6 GHz
    24 dBm
    5 GHz
    26 dBm
    2.4 GHz
    23 dBm
    Max. BSSIDs
    8 per Radio
    Supported Data Rates
    802.11be (WiFi 7)
    6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
    802.11ax (WiFi 6)
    7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    802.11ac (WiFi 5)
    6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    802.11n
    6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    Features
    Wireless Meshing
    Yes
    Band Steering
    Yes
    802.11v BSS Transition Management
    Yes
    802.11r Fast Roaming
    Yes
    802.11k Radio Resource Management (RRM)
    Yes
    Advanced Radio Management
    Yes
    Passpoint (Hotspot 2.0)
    Yes
    Captive Hotspot Portal
    Custom Branding Landing Page
    Yes
    Voucher Authentication
    Yes
    Payment-Based Authentication
    Yes
    External Portal Server Support
    Yes
    Password Authentication
    Yes
    Guest Network Isolation
    Yes
    Private Pre-Shared Key (PPSK)
    Yes
    WiFi Speed Limiting
    Yes
    Client Device Isolation
    Yes
    WiFi Schedules
    Yes
    RADIUS over TLS (RadSec)
    Yes
    Dynamic RADIUS-assigned VLAN
    Yes
    Hardware
    Max. Power Consumption
    22W
    Supported Voltage Range
    42.5–57V DC
    Networking Interface
    (1) 10 GbE RJ45 port
    Weight
    505 g (1.1 lb)
    Management
    Ethernet
    Enclosure Material
    Polycarbonate, aluminum alloy
    Mount Material
    Aluminum alloy
    LEDs
    System
    W/B
    Channel Bandwidth
    HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
    NDAA Compliant
    Yes
    Certifications
    CE, FCC, IC
    Ambient Operating Temperature
    -30 to 40° C (-22 to 104° F)
    Ambient Operating Humidity
    5 to 95% noncondensing
    Software
    Application Requirements
    UniFi Network
    Version 10.0 and later
    Mobile App
    iOS™ version 10.29.3 and later Android™ version 10.31.1 and later
