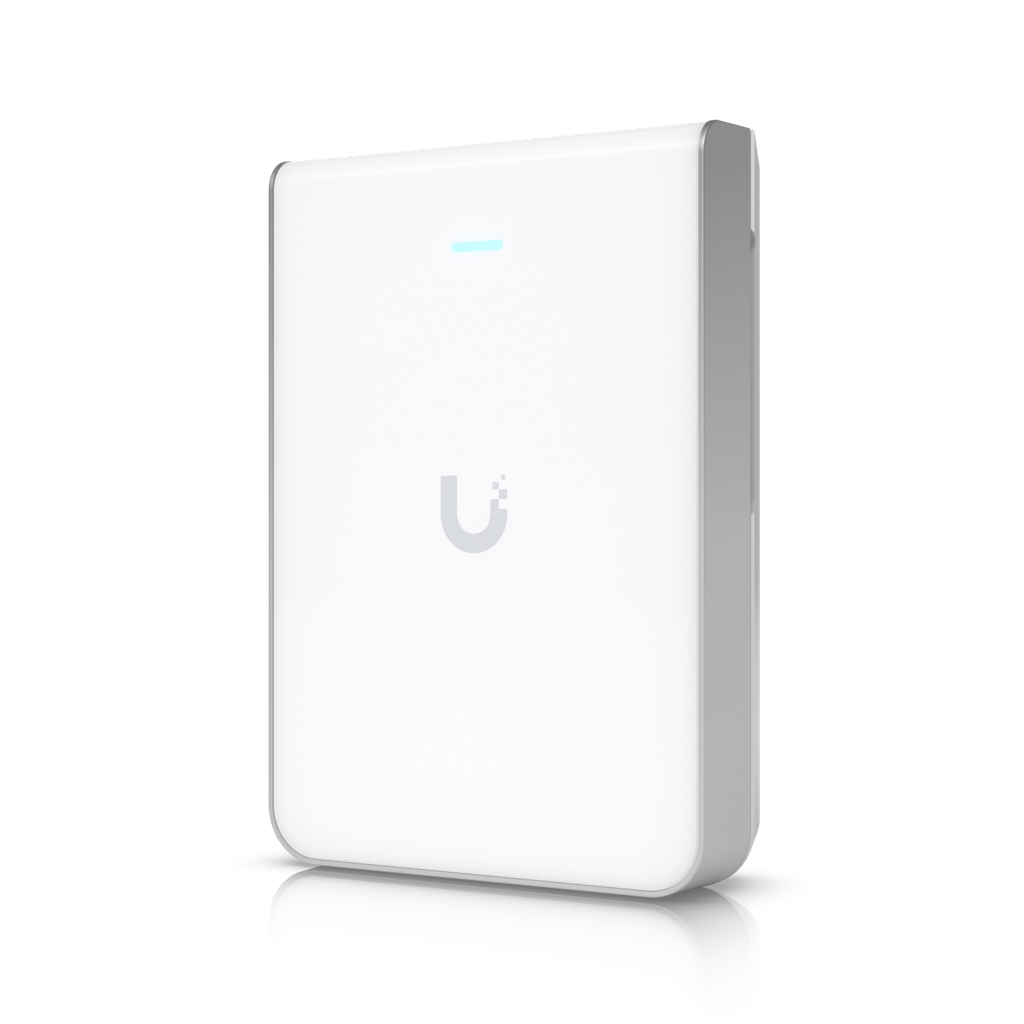

Ubiquiti U7-Pro-Wall Unifi Wall-mounted WiFi 7 AP
Unifi Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
WiFi 7 with 6 GHz support
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile deployment with optional Flush Mount and Table Stand accessories*
| Mechanical | ||
|---|---|---|
| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4") | |
| Weight | 580 g (1.3 lb) | |
| Enclosure material | Polycarbonate, aluminum | |
| Mount material | Aluminum | |
| Hardware | ||
| Networking interface | (1) 1/2.5 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 44—57V DC | |
| Max. power consumption | 22W | |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 22 dBm 26 dBm 23 dBm | |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 2 x 2 2 x 2 | |
| Throughput rate 2.4 GHz 5 GHz 6 GHz | 688 Mbps 4324 Mbps 5764 Mbps | |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 4 dBi 5 dBi 6 dBi | |
| LEDs | White/blue | |
| Button | Factory reset | |
| Mounting | Wall (Included) Table stand, flush mount (Optional) | |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 300+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
