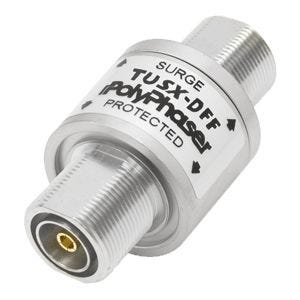

PolyPhaser TUSX-DFF Low PIM, dc short coaxial protector

PolyPhaser TUSX-DFF Low PIM, dc short coaxial protector

KEY FEATURES:

DC short ultra low PIM, bi-directional operation coaxial RF protector, engineered for high power of combined signal operating between 300 MHz and 1.2 GHz

 Features:

• Higher maximum surge current rating – 40kA

• Superior Surge Performance based on our patented Coil Inductor Design

• Bi-Directional Operation – Less product SKU’s to manage

• DIN units are PIM rated to support Wireless Carriers Passive Intermodulation requirements.

• Specifications for TUSX-DFF

Max Surge Current

• 40 kA

Frequency Range

• 300 MHz to 1.2 GHz @-26dB Return Loss

Protected Side Connector

• Connector Interface 1

Surge Side Connector

• Connector Interface 2

Insertion Loss

• <0.1 dB

RF Power

• 2.5kW

Other Features

• combined signal; Weatherproof when installed
