Tycon Power TP-SCPOE-1248 12V in 48V out POE/Solar Charge Control
Tycon Power
Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.
Share this product:

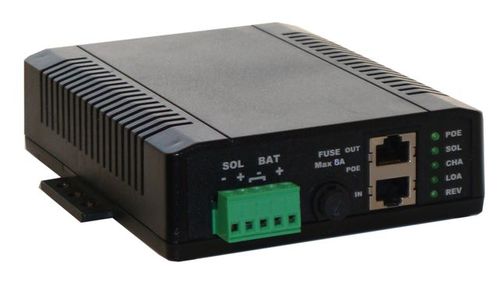

Tycon Power TP-SCPOE-1248 12V in 48V out POE/Solar Charge Control
Tycon Power Systems POE/Solar charge controllers have dual inputs to charge batteries from a POE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications. The solar input can handle up to 8A. The POE input up to 2.5A. They have a built in POE inserter that delivers 48V 0.375A at the POE out port. They also have a secondary wire terminal 12V 1.5A output. They have full electronic protections for short circuit, reverse current, over-voltage, overcharge and over discharge.
The built-in over-discharge protection and low self consumption ensures the battery is not over-discharged, which greatly increases the life of the batteries.
They have five LED indicators to give a quick visual status if current is being supplied by a POE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity.
Solar and Battery Connections are via 4 wire terminals for wire size up to 10AWG. POE Input and Output is via 2 RJ45 shielded connectors.
The controllers are externally fused with a standard replaceable fuse.
Size: 159mm x 118mm x 40mm
Weight: 312 g
