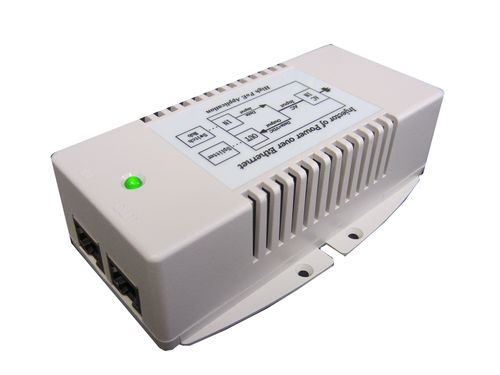

Tycon Power TP-POE-HP-56G-FBN 60W High Power Gigabit PoE Injector
Tycon Power
Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.
Share this product:
Tycon Power TP-POE-HP-56G-FBN 60W High Power Gigabit PoE Injector
Features:
Built-in Surge Protection
Supplies Power On All 4 Pairs to Minimize Line Loss
Remotely Power Equipment thru CAT5 Cable up to 100m
Autoranging Switching Power Supply
Short Circuit, Over Current and Over Voltage Protection
High Temperature Operation 60°C
Compact size
Applications Wireless:
Access Points and Client Devices
IP Phone and Security Camera Systems
56V 60W 4 Pair High Power Gigabit Passive PoE Inserter, Surge Protected
The TP-POE-HP-56G-FBN Gigabit 4 Pair 60W Passive PoE Inserters offered by Tycon Power Systems are quality power sources for years of reliable operation even in the toughest conditions.
They accept Gigabit data-in to a shielded RJ45 Jack and provide Gigabit data-out and power on the shielded RJ45 output jack. They provide 60W power over all four pairs of Ethernet to minimize power loss through the Ethernet cable. The Ethernet spec supports distances up to 100m (328 feet).
The TP-POE-HP-56G-FBN are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply 5% regulated 56V DC voltage at 60W on the output. They have various protections for surge, short circuit and overload.
Dimensions: 125 x 75 x 38mm
Weight: 300g
