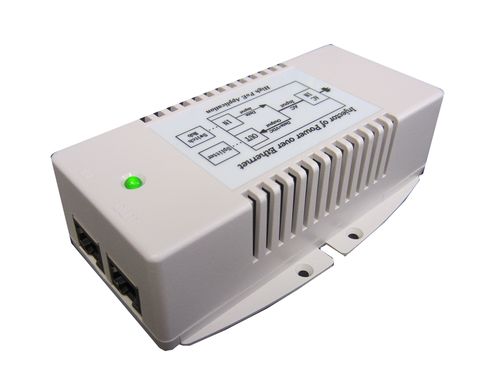

Tycon Power TP-POE-HP-48G-RC 48V 50W High Power Gigabit Passive PoE


Product Code: TP-POE-HP-48G-RC

Barcode: 1PTP-POE-HP-48G-RC

126.94 incl. GST 126.94 AUD 126.94


    This combination does not exist.

    Add to Cart

    Tycon Power
    Tycon Power

    Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.

    100% Original
    Fast Delivery

    Share this product:

    Tycon Power TP-POE-HP-48G-RC 48V 50W High Power Gigabit Passive PoE

    The TP-POE-HP-48G-RC is a special Power over Ethernet inserter offered by Tycon Power® which has a regulated 48VDC PoE output. Normally, higher power inserters have an output voltage of 56V. This inserter is regulated to 48VDC PoE output to be compatible with devices that are sensitive to the higher voltages.

    These are quality midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).


    • 48V 50W  High Power Gigabit PoE Power Inserter, Surge Protected

    • Remotely Power Equipment thru CAT5 Cable up to 100m

    • Built in Ethernet and AC Surge Protection

    • Autoranging Switching Power Supply

    • Short Circuit, Over Current and Over Voltage Protection

    • High Power, 50W, Passive PoE

    • 10/100/1000Mb Compatible

    • High Temperature Industrial Operation

    • Compact size – Floor / Desktop / Wall Mount / DIN Rail Mount
