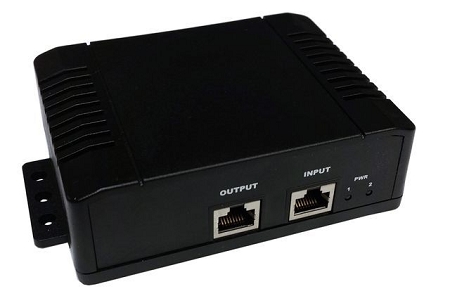

Tycon Power TP-POE-56GD-BT 90W 802.3bt PoE Injector


Product Code: TP-POE-56GD-BT

Barcode: 1PTP-POE-56GD-BT

405.24 incl. GST 405.24 AUD 405.24


    This combination does not exist.

    Add to Cart

    Tycon Power
    Tycon Power

    Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.

    100% Original
    Fast Delivery

    Share this product:

    Tycon Power TP-POE-56GD-BT 90W 802.3bt PoE Injector Features • 90W 802.3bt Output Power • Remotely Power Equipment thru CAT5+ Cable up to 100m • Built in Ethernet and AC Surge Protection • Autoranging Switching Power Supply • Short Circuit, Over Current and Over Voltage Protection • 10/100/1000/5000Mb Compatible • High Temperature Industrial Operation -40C to +70C • DIN Rail Mounting clips included Applications • Wireless Access Points and Client Devices • IP Phone and Security Camera Systems • PoE Lighting Applications Description The TP-POE-56GD-BT Power over Ethernet Power Injectors offered by Tycon Power® are quality 5 Gigabit midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on all 8 Ethernet wires. The Ethernet spec supports distances up to 100m (328 feet). The units are auto-ranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 56VDC at the output. They have various protections for surge, short circuit, overload and overvoltage. They have total power output up to 90W. They are fully compatible with the IEEE802.3bt specification which means they are backward compatible with 802.3at PoE.
