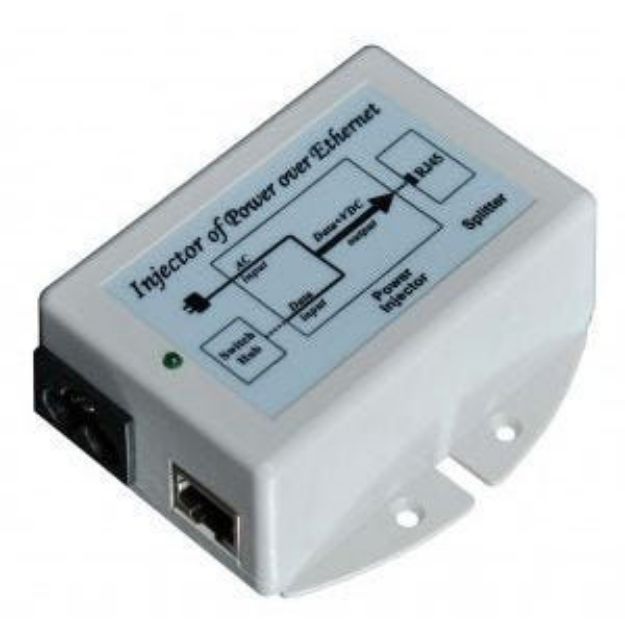

Tycon Power TP-POE-24G 24V 19W Gigabit Passive PoE Injector
Tycon Power
Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.
Share this product:
Tycon Power TP-POE-24G 24V 19W High Power Gigabit PoE Power Source
Features:
- Remotely Power Equipment thru CAT5/6 Cable up to 100m
- Built in Ethernet and AC Surge Protection
- Autoranging Switching Power Supply
- Short Circuit, Over Current and Over Voltage Protection
- Medium Power Model up to 19W
100-240VAC Input, 24V Gigabit PoE Injector, 19W, with AU Power Cord
The TP-POE-24G Power over Ethernet Power Source offered by Tycon Power is a quality midspan power source for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). For the “R” model the voltage is reversed. 4,5(V-) and 7,8(V+). The Ethernet spec supports distances up to 100m
