Tycon Power TP-MS4G-VHP 4 Port PoE Gigabit Midspan Injector


Product Code: TP-MS4G-VHP

456.61 incl. GST 456.61 AUD 456.61


    This combination does not exist.

    Add to Cart

    Tycon Power
    Tycon Power

    Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.

    100% Original
    Fast Delivery

    Share this product:

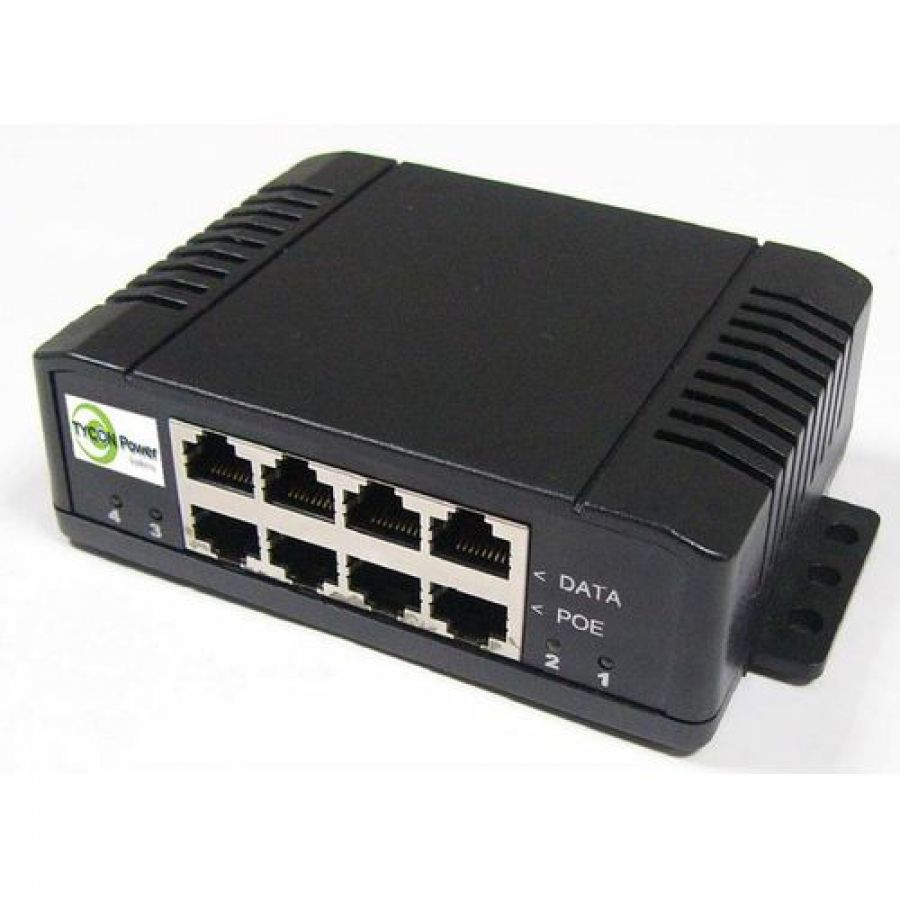

    Tycon Power TP-MS4G-VHP 4 Port PoE Gigabit Midspan Injector

    The  TP-MS4G-VHP mid span PoE power source is used for supplying PoE and data to multiple devices from a central location such as an operations room or equipment cabinet. The PoE device features a seperate data-in port coupled with a data out/PoE port. The PoE function is considered 4 Pair Passive PoE which is sometimes referred to as "High Poe". The units support Gigabit Ethernet and are backward compatible to 10/100MB.

    The Midspan features Universal Voltage (UniVolt) PoE outputs where the PoE voltage equals the input voltage. All ports will have the same PoE voltage. PoE DC Voltage (20-60V) is supplied on pins 1,2 (V-), 3,6 (V+) and 4,5 (V+) and 7,8 (V-). The unit can accept + or - voltage on input however the design is a non isolated design. Maximum power output per port is 1.8A. The individual output are overcurrent, over/under voltage and short circuit protected. The midspan is DIN Rail mountable with the included DIN Rail brackets.

    Product Features:

    • Very High Power, Gigabit 4 Port Midspan PoE Injector

    • Up to 1.8A per Individual Port

    • Universal PoE Votlage 20VDC to 60VDC

    • Powers Passive PoE Devices using 4 Pair Power

    • DIN Rail Mountable - Includes DIN Rail Adapters

    Product Applications:

    • High PoE Wireless Access Points and Client Devices

    • High PoE Security Camera Systems

    • Power Network Devices from a Central Network Room

    Product Specifications:

    • Ethernet Standard: IEEE802.3/IEEE802.3u/IEEE802.3ab (10base-T/100base-T/1000base-T)

    • PoE Standard: Passive PoE, 4 Pair Power, High PoE

    • PoE Pinout: 1,2 (V-) 3,6 (V+) and 4,5 (V+) 7,8 (V-)

    • Shielded RJ45 Ports: 4 data-in; 4 data/PoE out, Port shield is connected to FG (frame ground)

    • Max Device Distance: 100m (328ft)

    • Maximum Device Distance: 100m (328ft)

    • Maximum PoE Power: Up to 1.8A per Port

    • PoE Protection: Over Current, Over/Under Voltage, Short Circuit

    • LED's:

       - Green: A valid power device is detected on this port. Active Current is >100mA

       - Red: No power device is detected on this port

       - Off: No input power, or input source in alarm condition

       - Alarm: Voltage is more than 65VDC, or less than 15VDC, or current is >2A

    • DC Power Input: 20VDC to 60VDC, Unit can accept + or - VDC on input, non-isolated design, Fused at 10A

    • Self Consumption: <1W

    • Operating Temperature: -30 to 60°C (-40 to 140°F)

    • Operating Humidity: Up to 90%, Non Condensing

    • Storage Temperature: -40 to 85°C (-40 to 185°F)

    • Dimensions: 90 x 118 x 40mm (3.5 x 4.6 x 1.5")

    • Weight: 0.45kg (1lbs)
