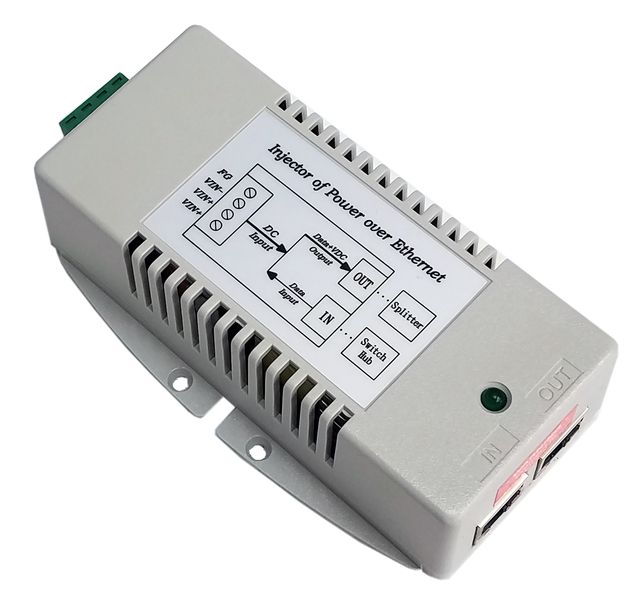

Tycon Power TP-DCDC-4848GD-HP - 36-72VDC IN 56VDC Gigabit 802.3at 35W
The Tycon Power TP-DCDC-4848GD-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC Power Over Ethernet voltage from a +/-48V battery system.
The POE inserters are 802.3af/at compatible. They have an integrated POE injector to apply the regulated 56VDC to the CAT5 Ethernet cable. The input voltage must be between 36VDC and 72VDC. They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack.
The Tycon Power TP-DCDC-4848GD-HP work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).
This Tycon Power have various protections for surge, short circuit and overload. The units have power output of 35W.
Tycon Power TP-DCDC-4848GD-HP Features:
- Input Voltage +/- 36-72VDC; Output 56VDC
- Integrated POE Inserter
- High Power 35W
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation
- Removable Wire Terminal Input for up to 12AWG wires
Dimensions: 125 x 75 x 38mm
Weight: 300g
