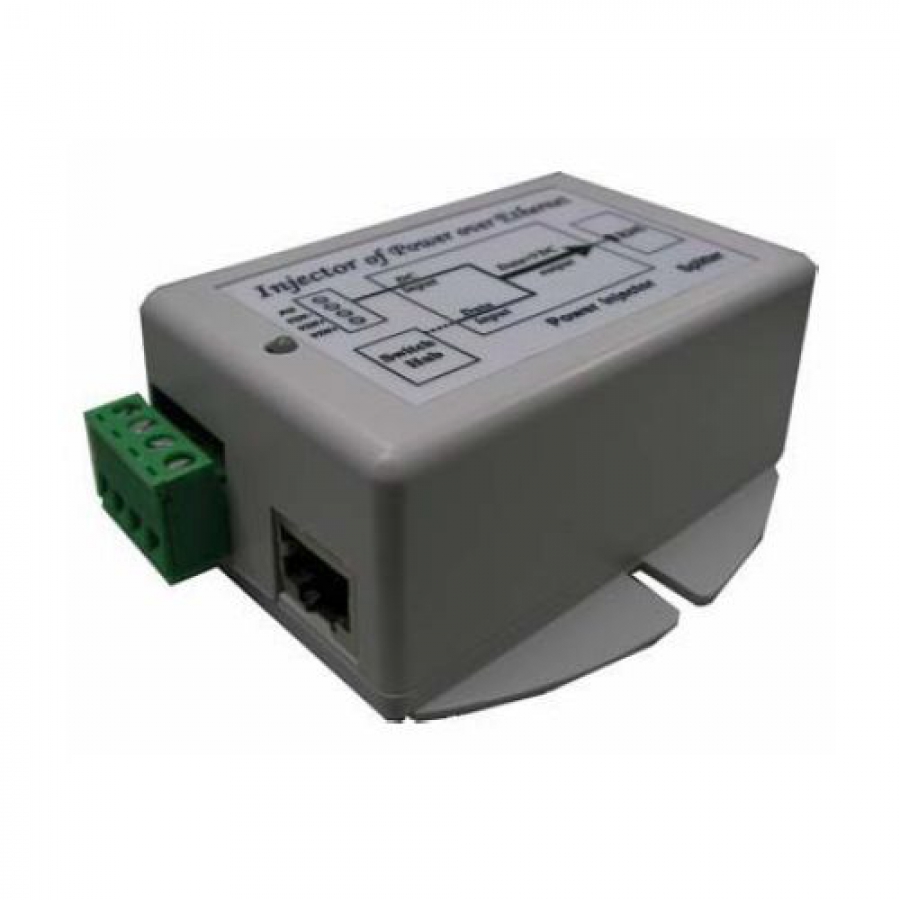

Tycon Power TP-DCDC-4824G 36-72VDC IN 24V OUT, 24W DC TO DC Converter


Product Code: TP-DCDC-4824G

Barcode: 1PTP-DCDC-4824G

102.63 incl. GST 102.63 AUD 102.63


    This combination does not exist.

    Add to Cart

    Tycon Power
    Tycon Power

    Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.

    100% Original
    Fast Delivery

    Share this product:

    Tycon Power TP-DCDC-4824G 36-72VDC IN 24V OUT, 24W DC TO DC Converter

    The Tycon Power TP-DCDC-4824G DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 24VDC Power Over Ethernet voltage from a 48 battery system.

    The Tycon Power TP-DCDC-4824G have an integrated Gigabit PoE injector to apply the regulated 24VDC to the CAT5 Ethernet cable. The input voltage must be between 32VDC and 72VDC.

    They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.

    The Tycon Power TP-DCDC-4824G work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).

    They have various protections for surge, short circuit and overload. The units have power output of 24W.

    Tycon Power TP-DCDC-4824G Features:

    • Input Voltage 36-72VDC; Output 24VDC Gigabit Passive PoE
    • High Power 24W
    • Short Circuit, Over Current and Over Voltage Protection
    • High Temperature Operation
    • Removable Wire Terminal Input for up to 12AWG wires

    Dimensions: 85 x 76 x 36mm

    Weight: 134g
