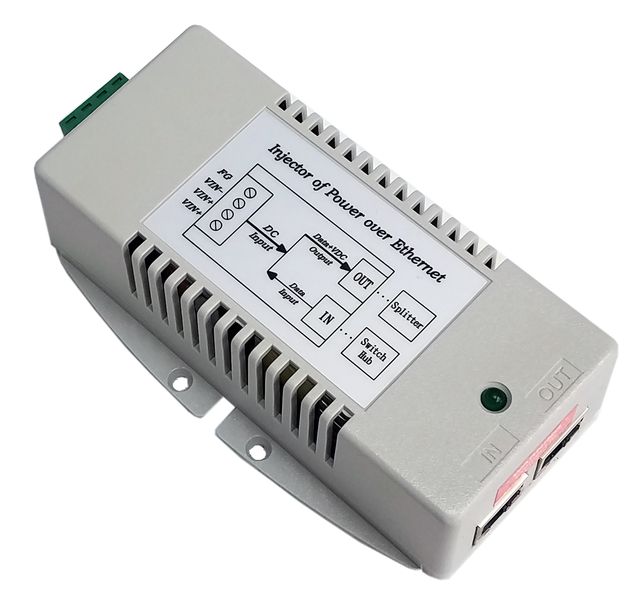

    Tycon Power TP-DCDC-2448G-HP 18-36VDC IN 56VDC OUT 50W


    The TP-DCDC-2448G-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 56VDC Power Over Ethernet voltage from a +/-48V battery system.


    The Tycon Power TP-DCDC-2448G-HP has an integrated Gigabit Passive PoE injector to apply the regulated 56VDC to the CAT5 Ethernet cable. The input voltage must be between 18VDC and 36VDC.


    They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack. The Tycon Power TP-DCDC-2448G-HP work by supplying power on the Ethernet pins 4,5(V+) and 7,8(V-).


    They have various protections for surge, short circuit and overload. The units have power output of 50W.


    Tycon Power TP-DCDC-2448G-HP Features:

    • Input Voltage +/- 18-36VDC; Output 56VDC Passive PoE
    • Integrated Gigabit PoE Inserter
    • Short Circuit, Over Current and Over Voltage Protection
    • High Temperature Operation 60°C

    Dimensions: 85mm x 76mm x 36mm

    Weight: 134g
