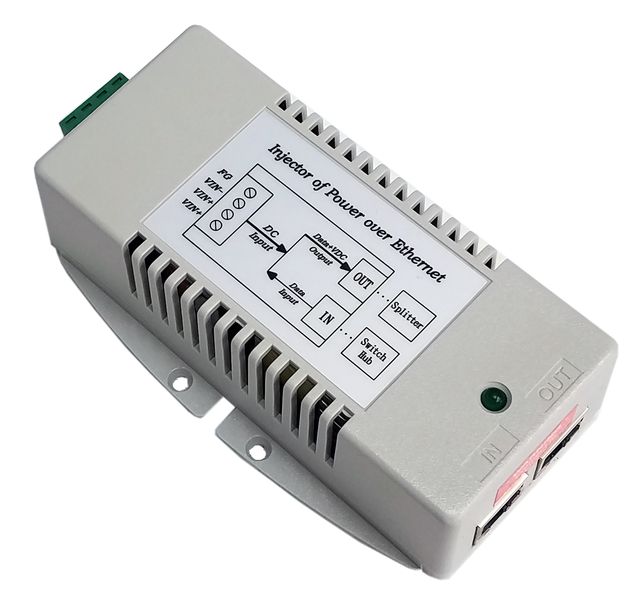

Tycon Power TP-DCDC-1248GD-HP Gigabit 10-15VDC IN 56VDC OUT 35W Hi Power DC to DC 802.3at POE
The Tycon Power TP-DCDC-1248G-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC Power Over Ethernet voltage from a +/-12V battery system.
The Tycon Power TP-DCDC-1248G-HP PoE inserters is Passive.
Tycon Power TP-DCDC-1248G-HP accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.
They work by supplying power on the Ethernet pins 4,5(V+) and 7,8(V-).
Tycon Power TP-DCDC-1248G-HP have various protections for surge, short circuit and overload. The units have power output of 50W.
Tycon Power TP-DCDC-1248G-HP Features:
- Input Voltage +/- 10-15VDC; Output 56VDC Passive
- Integrated Gigabit PoE+ Inserter
- High Power 50W
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation 60°C
- Removable Wire Terminal Input for up to 12AWG wires
Dimensions: 85 x 76 x 36mm
