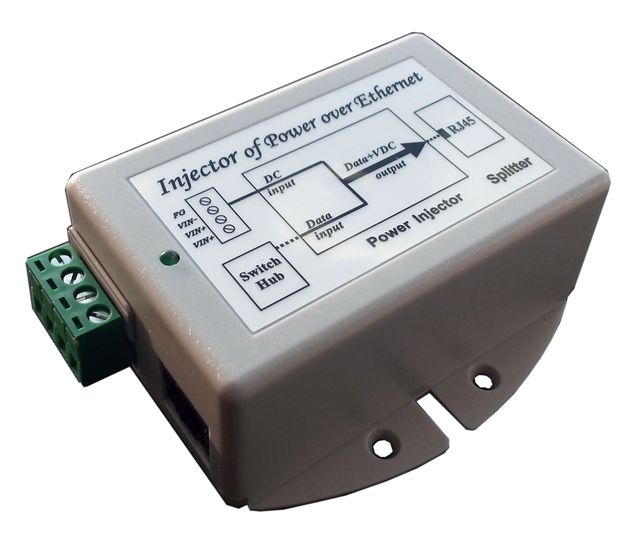

Tycon Power TP-DCDC-1248G 48V Passive PoE Output Gigabit Injector
The TP-DCDC-1248G DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC Passive voltage from a 12 or 24V battery system.
They have an integrated Gigabit Passive PoE injector to apply the regulated 48VDC to the CAT5 Ethernet cable. The input voltage must be between 9VDC and 36VDC.
The Tycon Power TP-DCDC-1248G accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.
They work by supplying power on the Ethernet pins 4,5(V+) and 7,8(V-).
The Tycon Power TP-DCDC-1248G have various protections for surge, short circuit and overload. The units have power output of 19W.
Tycon Power TP-DCDC-1248G Features:
- Input Voltage 9-36VDC; Output 48VDC
- Integrated Gigabit POE Inserter
- Output Power 19W
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation
- Removable Wire Terminal Input for up to 12AWG wires
Dimensions: 85 x 76 x 36mm
Weight: 134g
